Trimble T7148L-H3S-00 Tablet Computer


0.0

(No reviews)

Be the first to

Write a Review

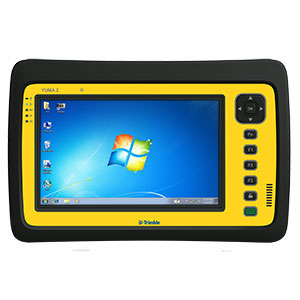

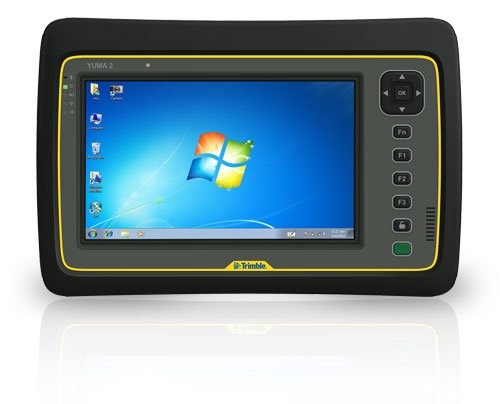

Trimble Yuma 2 - Rugged Tablet, Model CLX, Windows 7, Yellow, 128GB SSD, 3.75 WWAN.

Trimble Yuma 2 is built rugged from the inside out, with IP65 protection from dust and water, and with military-grade MIL-STD-810G certification for temperature, altitude, humidity extremes, vibration and shock.

General Information

  • Product Type: Net-tablet PC
  • Brand Name: Trimble
  • Manufacturer: Trimble Navigation Limited
  • Product Model: CLX
  • Product Name: Yuma 2 CLX Net-tablet PC
  • Product Line: Yuma 2

Physical Characteristics

  • Construction: Rugged
  • Height: 1.5"
  • Width: 9.6"
  • Depth: 6.3"
  • Color: Yellow
  • Form Factor: Slate
  • Weight (Approximate): 2.60 lb

Interfaces/Ports

  • HDMI: Yes
  • Audio Line Out: Yes
  • Total Number of USB Ports: 2
  • USB Host: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • Yuma 2 CLX Net-tablet PC
    • 2 x Standard Batteries
    • International AC Charging Kit with 4 Adapters
    • Microfiber Cloth for Display Cleaning
    • 2 x Clear View Screen Protectors
    • Capacitive Stylus with Tether
    • Quick Start Guide
    • Yuma 2 CLX Net-tablet PC
    • 2 x Standard Batteries
    • International AC Charging Kit with 4 Adapters
    • Microfiber Cloth for Display Cleaning
    • 2 x Clear View Screen Protectors
    • Capacitive Stylus with Tether
    • Quick Start Guide
  • Certifications & Standards:
    • IP65
    • MIL-STD-810G
    • CCX (Version 4)
    • Wi-Fi Alliance Certified
    • FCC
    • CE
    • UL 60950
    • IC (Canada)
    • SAIFE
    • MIL461
    • RSS 210
    • CSA
    • RSS CSA C22.2
    • IEC 60950
    • A-Tick
    • C-Tick Mark for Australia and New Zealand
  • Features: Gorilla Glass
  • Security Features:
    • Kensington Security Slot
    • Certified Trusted Processing Module (to allow encryption)

Processor & Chipset

  • Cache: 1 MB
  • Processor Core: Dual-core (2 Core)
  • Processor Manufacturer: Intel
  • vPro Technology: No
  • Processor Model: N2600
  • Processor Speed: 1.60 GHz
  • Processor Type: Atom
  • 64-bit Processing: Yes
  • Hyper-Threading: Yes
  • Direct Media Interface: 2.50 GT/s

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • WWAN Supported: Yes
  • Wireless LAN Standard: IEEE 802.11b/g/n
  • Bluetooth Standard: Bluetooth 4.0
  • GPS: Yes
  • Cellular Generation: 3.75G
  • Cellular Network Supported: GSM

Built-in Devices

  • Front Camera/Webcam: Yes
  • Front Camera Resolution/Webcam Resolution: 5 Megapixel
  • Focus Modes: Auto-focus
  • Microphone: Yes
  • Sensor Type:
    • Accelerometer
    • Digital Compass
  • Speakers: Yes

Display & Graphics

  • Touchscreen: Yes
  • Display Screen Type: Active Matrix TFT Color LCD
  • Multi-touch Screen: Yes
  • Screen Mode: WSVGA
  • Screen Size: 7"
  • Aspect Ratio: 128:75
  • Screen Resolution: 1024 x 600

Software

  • Operating System Platform: Windows
  • Operating System: Windows 7 Professional
  • Software Included:
    • Internet Explorer
    • Camera Software with Geo-tagging
    • Trimble GPS Information Receiver Control Software

Battery Information

  • Maximum Battery Run Time: 5 Hour
  • Battery Capacity: 3000 mAh
  • Number of Batteries Supported: 2
  • Battery Energy: 21.60 Wh

Input Devices

  • Front Camera/Webcam: Yes
  • Keyboard Type: Touchscreen Keyboard
  • Pointing Device Type: Stylus

Memory

  • Memory Technology: DDR3 SDRAM
  • Standard Memory: 4 GB

Warranty

  • Limited Warranty: 1 Year

Storage

  • Solid State Drive Capacity: 128 GB

Full specifications (PDF)

Full specifications (PDF)

Brand Trimble
Model Yuma 2
Operating System Windows 7
Wireless Connectivity WWAN, Wi-Fi, Bluetooth
Display Size 7"
Camera 5MP
Style Rugged
Additional Features GPS
Carrier Verizon, Sprint, AT&T
Touch Technology Capacitive Multi-Touch
OS for Subcats Windows
Storage 128GB
Display Resolution 1024 x 600
