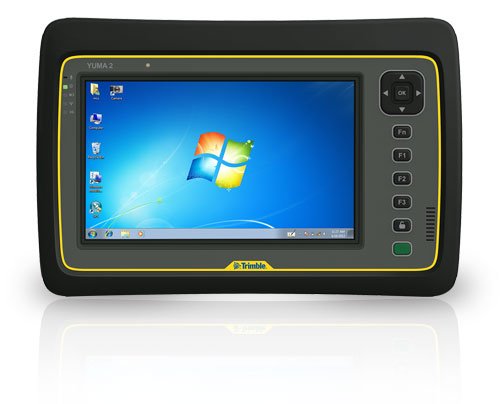

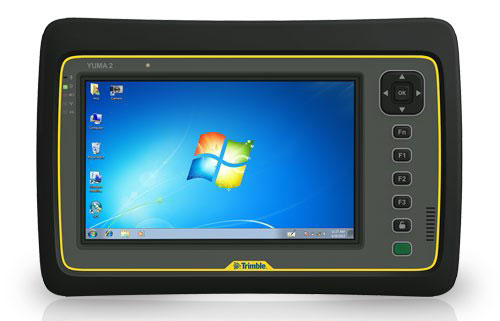

Trimble T7146L-YBS-00 Tablet

Part Number: T7146L-YBS-00
Model: Yuma 2
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Processor Manufacturer
Intel
Processor Type
Atom
Processor Model
N2600
Processor Speed
1.60 GHz

Product Description:

  Trimble Yuma 2 C Rugged Tablet - 7" WSVGA - 4 GB RAM - 64 GB SSD - Windows 7 Professional - Gray, Yellow - Intel Atom N2600 Dual-core (2 Core) 1.60 GHz - 1024 x 600 - 5 Megapixel Front Camera - 5 Hour Maximum Battery Run Time
Explore all Trimble Yuma 2 Tablets
Add to Quote
Trimble T7146L-YBS-00 Tablet
Trimble T7146L-YBS-00 Tablet
Trimble T7146L-YBS-00 Tablet
Trimble T7146L-YBS-00 Tablet
Trimble T7146L-YBS-00 Tablet Trimble T7146L-YBS-00 Tablet Trimble T7146L-YBS-00 Tablet Trimble T7146L-YBS-00 Tablet
Full specifications (PDF)

Trimble Yuma 2 Tablet Model Overview

Trimble Yuma 2 is built rugged from the inside out, with IP65 protection from dust and water, and with military-grade MIL-STD-810G certification for temperature, altitude, humidity extremes, vibration and shock.
Trimble T7146L-YBS-00 Tablet Overview

The Trimble® Yuma® 2 rugged tablet computer is designed for ease of use and high performance mobility features with everything users expect from a tablet computer - along with the confidence that it will perform at optimum capability no matter where the workplace may be.

Full specifications (PDF)
Processor
Processor Manufacturer:
Intel
Processor Type:
Atom
Processor Model:
N2600
Processor Speed:
1.60 GHz
Processor Core:
Dual-core (2 Core)
Cache:
1 MB
Direct Media Interface:
2.50 GT/s
64-bit Processing:
Yes
Hyper-Threading:
Yes
vPro Technology:
No
Memory
Standard Memory:
4 GB
Memory Technology:
DDR3 SDRAM
Storage
Solid State Drive Capacity:
64 GB
Display & Graphics
Screen Size:
7"
Display Screen Type:
Active Matrix TFT Color LCD
Aspect Ratio:
128:75
Screen Mode:
WSVGA
Screen Resolution:
1024 x 600
Touchscreen:
Yes
Multi-touch Screen:
Yes
Network & Communication
GPS:
Yes
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11b/g/n
Bluetooth:
Yes
Bluetooth Standard:
Bluetooth 4.0
Interfaces/Ports
HDMI:
Yes
USB Host:
Yes
Total Number of USB Ports:
2
Audio Line Out:
Yes
Input Devices
Keyboard Type:
Touchscreen Keyboard
Pointing Device Type:
Stylus
Built-in Devices
Sensor Type:
  • Accelerometer
  • Digital Compass
Front Camera/Webcam:
Yes
Front Camera/Webcam Resolution:
5 Megapixel
Focus Modes:
Auto-focus
Microphone:
Yes
Speakers:
Yes
Software
Operating System Platform:
Windows
Operating System:
Windows 7 Professional
Software Included:
  • Internet Explorer
  • Camera Software with Geo-tagging
  • Trimble GPS Information Receiver Control Software
Battery Information
Number of Batteries Supported:
2
Battery Capacity:
3000 mAh
Battery Energy:
21.60 Wh
Maximum Battery Run Time:
5 Hour
Physical Characteristics
Rugged:
Yes
Color:
  • Gray
  • Yellow
Form Factor:
Slate
Height:
1.5"
Width:
9.6"
Depth:
6.3"
Weight (Approximate):
2.60 lb
Miscellaneous
Package Contents:
  • Yuma 2 C Net-tablet PC
  • 2 x Standard Batteries
  • International AC Charging Kit with 4 Adapters
  • Microfiber Cloth for Display Cleaning
  • 2 x Clear View Screen Protectors
  • Capacitive Stylus with Tether
  • Quick Start Guide
Certifications & Standards:
  • IP65
  • MIL-STD-810G
  • CCX (Version 4)
  • Wi-Fi Alliance Certified
  • FCC
  • CE
  • UL 60950
  • IC (Canada)
  • SAIFE
  • MIL461
  • RSS 210
  • CSA
  • RSS CSA C22.2
  • IEC 60950
  • A-Tick
  • C-Tick Mark for Australia and New Zealand
Features:
Gorilla Glass
Security Features:
  • Kensington Security Slot
  • Certified Trusted Processing Module (to allow encryption)
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211509
