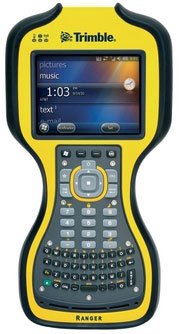

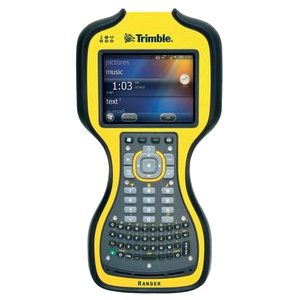

Trimble Ranger 3L – Mobile Computer

Part Number: RGRAHY-121-00
Model: Ranger
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wireless
Light Source
Laser
Barcode Symbology Supported
1D
Drop Specification
48" To Concrete

Product Description:

  Trimble Ranger 3L Handheld Terminal - Texas Instruments ARM 800 MHz - 256 MB RAM - 8 GB Flash - 4.2" LCD - 58 Keys - Alphanumeric Keyboard - Wireless LAN - Bluetooth
Explore all Trimble Ranger Mobile Computers
Add to Quote
Trimble RGRAHY-121-00 Mobile Computer
Trimble RGRAHY-121-00 Mobile Computer
Trimble RGRAHY-121-00 Mobile Computer Trimble RGRAHY-121-00 Mobile Computer
Full specifications (PDF)

Trimble Ranger Mobile Computer Model Overview

The Trimble Ranger computer is designed to withstand the elements and survive the stress of working outdoors. The Ranger series is tested to rigorous military standards for temperature extremes, drops, vibration, humidity and altitude. The IP67 rating means the Ranger handheld is completely sealed against blowing dust and can survive immersion in up to a meter of water for 30 minutes. Trimble rugged computers have proven their reliability and lower Total Cost of Ownership over consumer-grade handhelds in the field with thousands of real world users. Multiple integrated features, a high-performance CPU, and a rugged design make the Trimble Ranger a very capable computing platform for mobile applications. The Ranger Software Development Kit provides software developers with a hardware-specific API to use in conjunction with Microsoft software development tools. The Ranger series has Windows Mobile certification and has undergone hundreds of hours of testing to ensure reliability and stability.
Trimble RGRAHY-121-00 Mobile Computer Overview

The Trimble Ranger 3 series outdoor rugged handheld computer has the features field service workers depend on, like a 30-hour battery, an alpha-numeric keypad and a large touchscreen. The Ranger 3 is a true mobile computing powerhouse with an advanced superscalar processor and many integrated features that enable mobile workforces to collect and transmit data from the field. You choose the optional features that are right for you.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Light Source:
Laser
Barcode Symbology Supported:

1D

Drop Specification:
48" To Concrete
Processor & Chipset
Processor Manufacturer:
Texas Instruments
Processor Type:
ARM
Processor Speed:
800 MHz
Memory
Standard Memory:
256 MB
Flash Memory:
8 GB
Memory Card Slot:
Yes
Memory Card Supported:
  • SDHC
  • SD
Display & Graphics
Screen Size:
4.2"
Screen Mode:
VGA
Display Color:
Color
Display Screen Type:
LCD
Touchscreen Information
Touchscreen:
Yes
Keyboard/Keypad
Number of Keys:
58
Keyboard Layout:
QWERTY
Keyboard Type:
Alphanumeric
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11b/g
Bluetooth:
Yes
GPS:
Yes
Software
Operating System:
Windows Mobile 6.5 Professional Edition
Battery Information
Battery Capacity:
2500 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Physical Characteristics
Height:
10.5"
Width:
5.2"
Depth:
1.9"
Weight (Approximate):
2.30 lb
Miscellaneous
Package Contents:
  • Ranger 3L Handheld Terminal
  • Battery
  • Stylus
Certifications & Standards:
  • FCC
  • CE
  • R&TTE
  • IC (Canada)
  • C-tick
  • GCF Compliant
  • Section 508 Compliant
  • Wi-Fi Alliance Certified
  • MIL-STD-810G
  • IP67
  • MIL-STD-461
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211715
