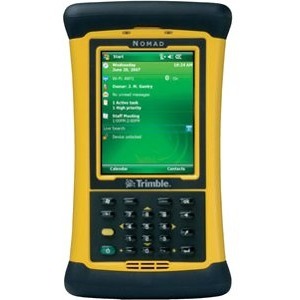

Trimble Nomad – Mobile Computer

Part Number: NMDAGY-121-00
Model: Nomad
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wireless
Light Source
LED
Drop Specification
48" To Plywood Over Concrete
Processor Manufacturer
Marvell

Product Description:

  Trimble Nomad Rugged Handheld Computer - Marvell XScale 806 MHz - 128 MB RAM - 1 GB Flash - VGA LCD - Numeric Keyboard - Wireless LAN - Bluetooth
Explore all Trimble Nomad Mobile Computers
Add to Quote
Trimble NMDAGY-121-00 Mobile Computer
Trimble NMDAGY-121-00 Mobile Computer
Trimble NMDAGY-121-00 Mobile Computer Trimble NMDAGY-121-00 Mobile Computer
Full specifications (PDF)

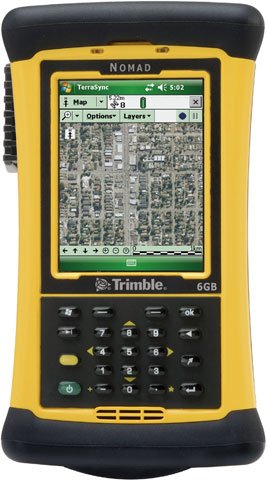

Trimble Nomad Mobile Computer Model Overview

The Trimble Nomad outdoor rugged handheld computer has power and capabilities to help you do more in the field. The Nomad computer is extremely rugged, meeting rigorous MIL-STD-810F and IP67 standards for water and dust, yet is light and easy to carry. Featuring an 806 MHz processor, the Nomad computer also includes 128 MB of memory, a long-life 5200 mAh lithium-ion (Li-Ion) battery, a sunlight readable full VGA display, integrated Bluetooth, user-accessible CompactFlash (CF) and SD/SDHC card ports, plus I/O ports that include USB host/client and an audio jack.
Trimble NMDAGY-121-00 Mobile Computer Overview
EVERYTHING YOU WANTED IN AN OUTDOOR RUGGED HANDHELD COMPUTER-BUILT IN.

The Trimble® Nomad® 900 series packs even more functionality into one of the powerful and full-featured rugged handheld computers available. Standard features include an 806 MHz processor, a long-life lithium-ion battery, 512 MB to 2­GB of Flash storage and integrated wireless capabilities like GPS, Wi-Fi and Bluetooth®. The high-resolution, sunlight-visible VGA display shows images, maps and data in crisp detail. Optional features include an integrated cellular WWAN, laser bar code scanner and a 5 MP color digital­camera.

The Nomad computer also includes the latest Windows Mobile® 6.1 software, so it runs all the applications you use most, including a wide range of third-party software for industry specific applications.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Light Source:
LED
Drop Specification:
48" To Plywood Over Concrete
Processor & Chipset
Processor Manufacturer:
Marvell
Processor Type:
XScale
Processor Speed:
806 MHz
Memory
Standard Memory:
128 MB
Flash Memory:
1 GB
Memory Card Slot:
Yes
Memory Card Supported:
  • SDHC
  • SD
Display & Graphics
Screen Mode:
VGA
Screen Resolution:
480 x 640
Display Color:
Color
Display Screen Type:
LCD
Backlight Technology:
LED
Touchscreen Information
Touchscreen:
Yes
Keyboard/Keypad
Keyboard Type:
Numeric
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11g
Bluetooth:
Yes
GPS:
Yes
Wireless Security:
(CCX) v4
Interfaces/Ports
USB:
Yes
Serial:
Yes
Camera
Rear Camera:
Yes
Rear Camera Resolution:
5 Megapixel
Software
Operating System:
Windows Mobile 6.1
Battery Information
Battery Capacity:
5000 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Physical Characteristics
Height:
6.9"
Width:
3.9"
Depth:
2"
Weight (Approximate):
1.31 lb
Miscellaneous
Package Contents:
  • Nomad Rugged Handheld Computer
  • Auto-switching AC Charger with Four International Adapters
  • Rechargeable Lithium-ion Battery Module
  • 2 x Screen Protectors (Ultra Clear)
  • Stylus Pen
  • Stylus Lanyard
  • Hand Strap
  • USB Data Cable
  • CD-ROM
  • Quick-Start Guide
Certifications & Standards:
  • FCC
  • CE/R & TTE
  • IC
  • C-Tick
  • PTCRB
  • GCF Compliant
  • AT&T
  • Section 508 Compliant
  • CCX v4 ASD
  • MIL-STD-461ERE102
  • MIL-STD-461E RS103
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
12 Month
Item Numbers
UNSPSC: 43211715
