Trimble Nomad – Mobile Computer – Windows Mobile 6.1 – 128 MB

Part Number: NMDAEY-111-00
Model: Nomad
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

RAM Memory
128 MB
Interface Options
Wi-Fi
Operating System
Windows Mobile 6.1

Product Description:

  Trimble Nomad Rugged Handheld Computer - Intel XScale 806 MHz - 128 MB RAM - 1 GB Flash - 3.5" Numeric Keyboard - Wireless LAN - Bluetooth
Explore all Trimble Nomad Mobile Computers
Add to Quote
Trimble NMDAEY-111-00 Mobile Computer
Trimble NMDAEY-111-00 Mobile Computer
Trimble NMDAEY-111-00 Mobile Computer Trimble NMDAEY-111-00 Mobile Computer
Full specifications (PDF)

Trimble Nomad Mobile Computer Model Overview

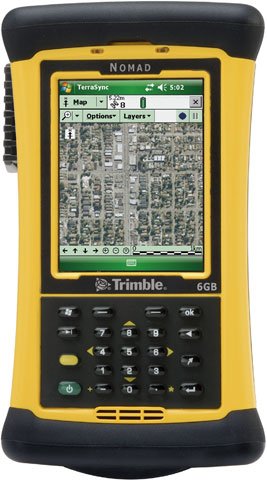

The Trimble Nomad outdoor rugged handheld computer has power and capabilities to help you do more in the field. The Nomad computer is extremely rugged, meeting rigorous MIL-STD-810F and IP67 standards for water and dust, yet is light and easy to carry. Featuring an 806 MHz processor, the Nomad computer also includes 128 MB of memory, a long-life 5200 mAh lithium-ion (Li-Ion) battery, a sunlight readable full VGA display, integrated Bluetooth, user-accessible CompactFlash (CF) and SD/SDHC card ports, plus I/O ports that include USB host/client and an audio jack.
Trimble NMDAEY-111-00 Mobile Computer Overview

The Trimble® Nomad® rugged outdoor handheld makes it easy to collect, save and transmit data with its many built-in capabilities. It also enjoys a solid reputation with application developers as being reliable and easy to work with. Six available models enable you pick the features appropriate to your workforce management needs.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Light Source:
LED
Drop Specification:
47.24"
Processor & Chipset
Processor Manufacturer:
Intel
Processor Type:
XScale
Processor Speed:
806 MHz
Memory
Standard Memory:
128 MB
Flash Memory:
1 GB
Memory Card Slot:
Yes
Memory Card Supported:
  • CompactFlash
  • SD
  • SDHC
Display & Graphics
Screen Size:
3.5"
Screen Mode:
VGA
Screen Resolution:
480 x 640
Touchscreen Information
Touchscreen:
Yes
Keyboard/Keypad
Keyboard Type:
Numeric
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11g
Bluetooth:
Yes
GPS:
Yes
Software
Operating System:
Windows Mobile 6.1
Battery Information
Battery Capacity:
5000 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Physical Characteristics
Weight (Approximate):
1.30 lb
Miscellaneous
Package Contents:
  • Nomad Handheld Terminal
  • Rechargeable Li-ion Battery
  • User's Guide
  • Rugged Stylus with Spring-Loaded Tip
  • Hand Strap
  • Stylus Lanyard
  • Screen Protectors
  • AC Charger and International Adapters
  • Getting Started CD with ActiveSync
  • USB Data Cable
  • USB Boot
  • Standard Cap
Certifications & Standards:
  • FCC
  • CE/R & TTE
  • IC (Canada)
  • C-Tick
  • PTCRB
  • GCF Compliant
  • Section 508 Compliant
  • CCX v4 ASD
  • MIL-STD-461ERE102
  • MIL-STD-810F
  • IEC-529
  • IP68
  • MIL-STD-461E RS103
  • WiFi
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211715
