Trimble Nomad – Mobile Computer

Part Number: NMDAEM-121-00
Model: Nomad

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wireless
Light Source
LED
Drop Specification
48.03" To Plywood Over Concrete @ -22°F (-30°C) to 140°F (60°C)
Processor Manufacturer
Marvell

Product Description:

  Trimble Nomad Rugged Handheld Computer - Marvell PXA320 806 MHz - 128 MB RAM - 1 GB Flash - VGA LCD - Numeric Keyboard - Wireless LAN - Bluetooth

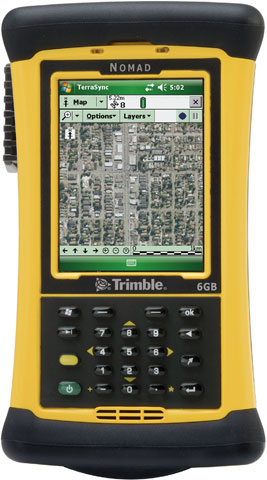

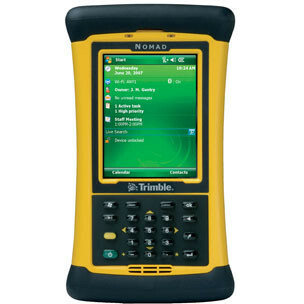

Trimble Nomad Mobile Computer Model Overview

The Trimble Nomad outdoor rugged handheld computer has power and capabilities to help you do more in the field. The Nomad computer is extremely rugged, meeting rigorous MIL-STD-810F and IP67 standards for water and dust, yet is light and easy to carry. Featuring an 806 MHz processor, the Nomad computer also includes 128 MB of memory, a long-life 5200 mAh lithium-ion (Li-Ion) battery, a sunlight readable full VGA display, integrated Bluetooth, user-accessible CompactFlash (CF) and SD/SDHC card ports, plus I/O ports that include USB host/client and an audio jack.
Trimble NMDAEM-121-00 Mobile Computer Overview
EVERYTHING YOU WANTED IN AN OUTDOOR RUGGED HANDHELD COMPUTER-BUILT IN.

The Trimble® Nomad® 900 series packs even more functionality into one of the most powerful and full-featured rugged handheld computers available. Standard features include an 806 MHz processor, a long-life lithium-ion battery, 512 MB to 2GB of Flash storage and integrated wireless capabilities like GPS, Wi-Fi and Bluetooth®. The high-resolution, sunlightvisible VGA display shows images, maps and data in crisp detail. Optional features include an integrated cellular WWAN, laser bar code scanner and a 5 MP color digital camera.

The Nomad computer also includes the latest Windows Mobile® 6.1 software, so it runs all the applications you use most, including a wide range of third-party software for industry specific applications.
Technical Information
Connectivity Technology:
Wireless
Light Source:
LED
Drop Specification:
48.03" To Plywood Over Concrete @ -22°F (-30°C) to 140°F (60°C)
Processor & Chipset
Processor Manufacturer:
Marvell
Processor Type:
PXA320
Processor Speed:
806 MHz
Memory
Standard Memory:
128 MB
Flash Memory:
1 GB
Memory Card Slot:
Yes
Memory Card Supported:
  • SD
  • SDHC
  • CompactFlash
Display & Graphics
Screen Mode:
VGA
Screen Resolution:
480 x 640
Display Screen Type:
LCD
Backlight Technology:
LED
Touchscreen Information
Touchscreen:
Yes
Keyboard/Keypad
Keyboard Type:
Numeric
Network & Communication
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11b/g
Bluetooth:
Yes
GPS:
Yes
Interfaces/Ports
USB:
Yes
Serial:
Yes
I/O Expansions
Expansion Slot Type:
  • CompactFlash
  • SDIO
Software
Operating System:
Windows Mobile 6.1
Battery Information
Battery Capacity:
5000 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Physical Characteristics
Height:
6.9"
Width:
3.9"
Depth:
2"
Weight (Approximate):
1.30 lb
Miscellaneous
Package Contents:
  • Nomad Rugged Handheld Computer
  • Battery
  • Rechargeable Li-ion Battery Module
  • User's Guide
  • Rugged Stylus With Spring-loaded Tip
  • Hand Strap
  • Stylus Lanyard
  • Screen Protectors
  • AC Charger and International Adapters
  • Getting Started CD with ActiveSync
  • USB Data Cable
  • USB Boot
  • Standard Cap
Certifications & Standards:
  • FCC
  • CE/R & TTE
  • IC (Canada)
  • C-Tick
  • PTCRB
  • GCF Compliant
  • AT&T network compatible
  • Section 508 compliant
  • CCX v4 ASD
  • MIL-STD-461ERE102
  • MIL-STD-461E RS103
  • MIL-STD-810F
  • Method 512.4
  • Method 510.3
  • Method 516.5
  • Method 514.5
  • Method 502.4
  • Method 501.4
  • Method 502.4
  • Method 503.4
  • Method 507.4
  • Method 500.5
  • Procedure I, II, III, IV
  • IEC-529
  • IP68
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
12 Month
Item Numbers
UNSPSC: 43211715
