Trimble NMDABM-111-00 Mobile Computer

The Trimble NMDABM-111-00 Mobile Computer has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Trimble Nomad - Trimble Nomad Rugged Handheld Computer - Marvell XScale 806 MHz - 128 MB RAM - 512 MB Flash - VGA LCD - Bluetooth

Wireless connectivity provides computing versatility throughout the workplace
LED aimer is a perfect choice for patient-facing applications
CompactFlash memory card slot can be accessed by user to expand storage
Experience the versatility of Bluetooth connectivity with your Trimble Handheld Terminal
Windows Mobile 6.1 offers familiar interface and control of web-based applications for greater ease of use and worker satisfaction

Need a different version? See all Trimble Nomad Mobile Computers

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

Trimble Nomad Mobile Computer Model Overview

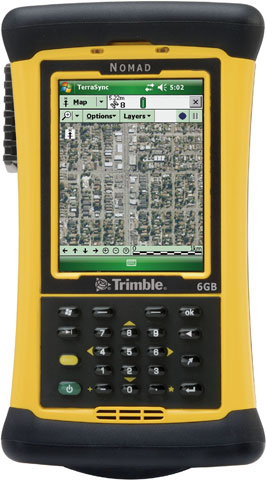

The Trimble Nomad outdoor rugged handheld computer has power and capabilities to help you do more in the field. The Nomad computer is extremely rugged, meeting rigorous MIL-STD-810F and IP67 standards for water and dust, yet is light and easy to carry. Featuring an 806 MHz processor, the Nomad computer also includes 128 MB of memory, a long-life 5200 mAh lithium-ion (Li-Ion) battery, a sunlight readable full VGA display, integrated Bluetooth, user-accessible CompactFlash (CF) and SD/SDHC card ports, plus I/O ports that include USB host/client and an audio jack.

Trimble NMDABM-111-00 Mobile Computer Overview

EVERYTHING YOU WANTED IN AN OUTDOOR RUGGED HANDHELD COMPUTER-BUILT IN.

The Trimble® Nomad® 900 series packs even more functionality into one of the powerful and full-featured rugged handheld computers available. Standard features include an 806 MHz processor, a long-life lithium-ion battery, 512 MB to 2GB of Flash storage and integrated wireless capabilities like GPS, Wi-Fi and Bluetooth®. The high-resolution, sunlight-visible VGA display shows images, maps and data in crisp detail. Optional features include an integrated cellular WWAN, laser bar code scanner and a 5 MP color digitalcamera.

The Nomad computer also includes the latest Windows Mobile® 6.1 software, so it runs all the applications you use most, including a wide range of third-party software for industry specific applications.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Wireless

Light Source:

LED

Drop Specification:

48" To Plywood Over Concrete

Processor & Chipset

Processor Manufacturer:

Marvell

Processor Type:

XScale

Processor Speed:

806 MHz

Memory

Standard Memory:

128 MB

Flash Memory:

512 MB

Memory Card Slot:

Yes

Memory Card Supported:

CompactFlash
SD

Display & Graphics

Screen Mode:

VGA

Screen Resolution:

480 x 640

Display Color:

Color

Display Screen Type:

LCD

Backlight Technology:

LED

Touchscreen Information

Touchscreen:

Yes

Network & Communication

Bluetooth:

Yes

Interfaces/Ports

USB:

Yes

I/O Expansions

Expansion Slot Type:

CompactFlash

Software

Operating System:

Windows Mobile 6.1

Battery Information

Battery Capacity:

5000 mAh

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Included:

Yes

Physical Characteristics

Height:

6.9"

Width:

3.9"

Depth:

Weight (Approximate):

1.31 lb

Miscellaneous

Package Contents:

Nomad Rugged Handheld Computer
Auto-switching AC Charger with Four International Adapters
Rechargeable Lithium-ion Battery Module
2 x Screen Protectors (Ultra Clear)
Stylus Pen
Stylus Lanyard
Hand Strap
USB Data Cable
CD-ROM
Quick-Start Guide

Certifications & Standards:

FCC
CE/R & TTE
IC
C-Tick
PTCRB
GCF Compliant
AT&T
Section 508 Compliant
CCX v4 ASD
MIL-STD-461ERE102
MIL-STD-461E RS103

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Warranty

Limited Warranty:

12 Month

Item Numbers

UNSPSC: 43211715
