Trimble NMDAAM-111-00 Mobile Handheld Computer

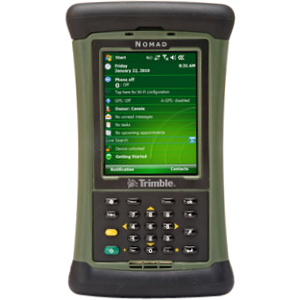

Trimble Nomad - 900B, Numeric Keypad, 806 MHz Processor, 128MB RAM/512MB Flash, 5200 mAh Lithium-ion Battery, Windows Mobile 61, Bluetooth, Compact Flash And SD ports Color: Green - Custom part. Interface Cables And Charging Cradle Sold Separately.
$949.00
Temporarily out of stock; available to order
FREE SHIPPING OVER $49
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.

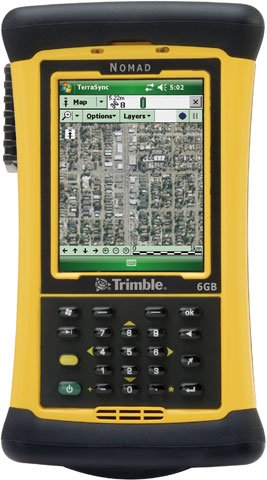

Everything you want in an outdoor rugged handheld computer

The Trimble Nomad outdoor rugged handheld computer has power and capabilities to help you do more in the field. The Nomad computer is extremely rugged, meeting rigorous MIL-STD-810F and IP67 standards for water and dust, yet is light and easy to carry. Featuring an 806 MHz processor, the Nomad computer also includes 128 MB of memory, a long-life 5200 mAh lithium-ion (Lithium-ion) battery, a sunlight readable full VGA display, integrated Bluetooth, user-accessible CompactFlash (CF) and SD/SDHC card ports, plus I/O ports that include USB host/client and an audio jack.

General Information

  • Product Type: Handheld Terminal
  • Product Series: 900
  • Brand Name: Trimble
  • Manufacturer: Trimble Navigation Limited
  • Product Model: 900B
  • Product Name: Nomad Rugged Handheld Computer
  • Product Line: Nomad

Technical Information

  • Connectivity Technology: Wireless
  • Light Source: LED
  • Drop Specification: 48.03" To Plywood Over Concrete @ -22°F (-30°C) to 140°F (60°C)

Physical Characteristics

  • Height: 6.9"
  • Width: 3.9"
  • Depth: 2"
  • Weight (Approximate): 1.30 lb

Interfaces/Ports

  • USB: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • Nomad Rugged Handheld Computer
    • Battery
    • Rechargeable Li-ion Battery Module
    • User's Guide
    • Rugged Stylus With Spring-loaded Tip
    • Hand Strap
    • Stylus Lanyard
    • Screen Protectors
    • AC Charger and International Adapters
    • Getting Started CD with ActiveSync
    • USB Data Cable
    • USB Boot
    • Standard Cap
    • Nomad Rugged Handheld Computer
    • Battery
    • Rechargeable Li-ion Battery Module
    • User's Guide
    • Rugged Stylus With Spring-loaded Tip
    • Hand Strap
    • Stylus Lanyard
    • Screen Protectors
    • AC Charger and International Adapters
    • Getting Started CD with ActiveSync
    • USB Data Cable
    • USB Boot
    • Standard Cap
  • Certifications & Standards:
    • FCC
    • CE/R & TTE
    • IC (Canada)
    • C-Tick
    • PTCRB
    • GCF Compliant
    • AT&T network compatible
    • Section 508 compliant
    • CCX v4 ASD
    • MIL-STD-461ERE102
    • MIL-STD-461E RS103
    • MIL-STD-810F
    • Method 512.4
    • Method 510.3
    • Method 516.5
    • Method 514.5
    • Method 502.4
    • Method 501.4
    • Method 502.4
    • Method 503.4
    • Method 507.4
    • Method 500.5
    • Procedure I, II, III, IV
    • IEC-529
    • IP68

Memory

  • Flash Memory: 512 MB
  • Standard Memory: 128 MB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • Secure Digital (SD) Card
    • Secure Digital High Capacity (SDHC)
    • CompactFlash (CF) Card

Display & Graphics

  • Display Screen Type: LCD
  • Backlight Technology: LED
  • Screen Mode: VGA
  • Screen Resolution: 480 x 640

Processor & Chipset

  • Processor Manufacturer: Marvell
  • Processor Speed: 806 MHz
  • Processor Type: PXA320

Battery Information

  • Battery Capacity: 5000 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

I/O Expansions

  • Expansion Slot Type:
    • CompactFlash (CF)
    • SDIO

Network & Communication

  • Bluetooth: Yes

Keyboard/Keypad

  • Keyboard Type: Numeric

Warranty

  • Limited Warranty: 12 Month

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Mobile 6.1

Full specifications (PDF)

Full specifications (PDF)

Brand Trimble
Model Nomad
Style Full-size
