Trimble Nomad 5 – Mobile Computer – Android, Android 8.1 – 1 GB

Part Number: NMD5XY-102-00
Model: Nomad 5

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
RAM Memory
1 GB
IP Rating
IP30, IP65, IP68
Interface Options
Bluetooth, Wi-Fi, LTE
WWAN
No

Product Description:

  The Nomad 5, Bluetooth 4.2, Wi-Fi 802.11 a/b/g/n/ac, Front 8MP and Rear 16MP cameras, Accelerometer and Compass, GPS, 4G LTE, North America, EMEA.

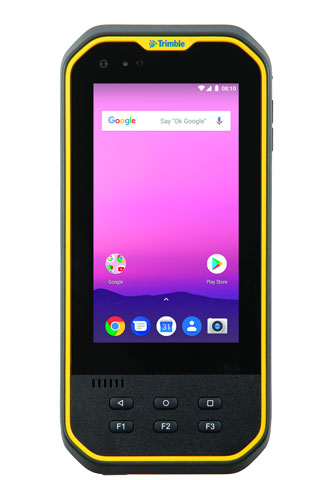

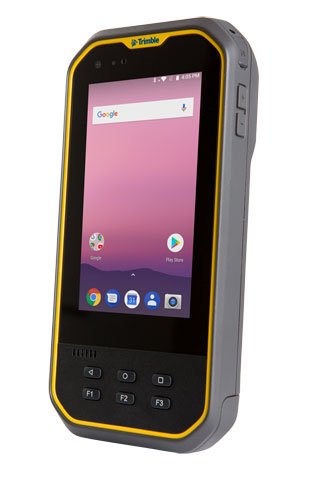

Trimble Nomad 5 Mobile Computer Model Overview

The Trimble Nomad 5 is a fully rugged handheld computer that combines strength, flexibility, and advanced technology for professional field workers. Powered by Android™ 8.1, it features a 5-inch sunlight-readable touchscreen, 4G LTE connectivity, and the innovative Trimble EMPOWER platform for customizable expansion. Built to withstand harsh environments, the Nomad 5 ensures seamless performance in any condition, making it the ideal companion for those who rely on productivity in the field.


Key Features
  • Trimble EMPOWER Platform: A modular system that allows for easy customization.
  • 5-inch high-brightness touchscreen: Perfect for visibility indoors and outdoors.
  • 4G LTE and Bluetooth 4.2: Reliable high-speed wireless connectivity.
  • Powered by Android 8.1: Access to over one million apps and a user-friendly interface.
  • Dependable maintenance plans: Professional service support available worldwide.

Specifications
  • Platform: Qualcomm® SnapDragon 820 (APQ8096), Kyro CPU, quad-core, 2.2GHz
  • OS: Android 8.1 with Google GMS core apps
  • Memory/Storage:
    • 4 GB RAM
    • 32 GB UFS storage (expandable via microSD)
  • Display: 5 inches, 1280 x 720 pixels, capacitive multitouch
  • Cameras: 16 MP rear and 8 MP front
  • Wireless:
    • 802.11 a/b/g/n/ac, Bluetooth 4.2
  • GNSS: Horizontal accuracy of 2-4 m (RMS)
  • Battery: 3200 mAh, standby time up to 6 days
  • Environmental Ratings: IP65/IP68, MIL-STD-810G
  • Dimensions: 200 mm x 95.4 mm x 44 mm (7.87 in x 3.76 in x 1.73 in) with battery
  • Weight: 700 g (1.54 lb)
Brand
Trimble
Model
Nomad 5
Imager
1D Barcodes
WWAN
No
IP Rating
IP30, IP65, IP68
Wireless Connectivity
4G
Display Resolution
1280 x 720
Operating System
Android, Android 8.1
Scanner Type
No Scan Engine
Style
Handheld
RAM Memory
1 GB
Keypad
6 Keys, Numeric
Interface Options
Bluetooth, Wi-Fi, LTE
