TRENDnet TV-IP310PI Security Camera

The TRENDnet TV-IP310PI Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
TRENDnet - TRENDnet TV-IP310PI 3 Megapixel Network Camera - H.264, MJPEG - 2048 x 1536 - CMOS - Fast Ethernet
  • 3 Megapixel resolution
  • Compact IP66 weather rated housing
  • Night vision up to 30 meters (100 ft.)
  • Save installation costs with Power over Ethernet (PoE)
  • Program motion detection recording and email alerts
  • Digital Wide Dynamic Range image balancing
  • ONVIF and IPv6 support
Read More

Need a different version? See all TRENDnet Parts Accessories

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
TRENDnet TV-IP310PI Security Camera
TRENDnet TV-IP310PI Security Camera TRENDnet TV-IP310PI Security Camera
TRENDnet TV-IP310PI Security Camera
TRENDnet TV-IP310PI Security Camera
TRENDnet Parts Accessory Model Overview
Products and parts from TRENDnet.
TRENDnet TV-IP310PI Security Camera Overview

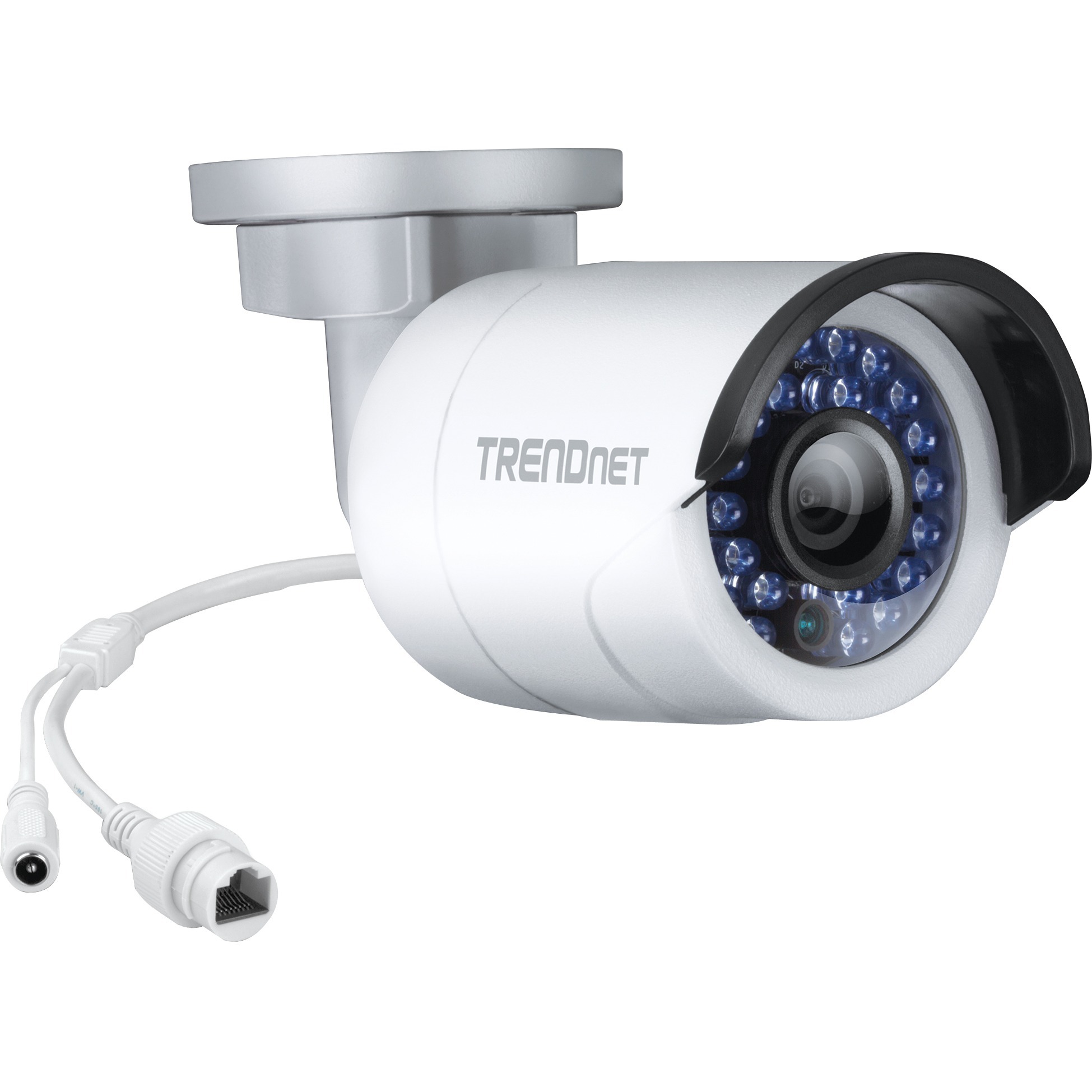

The Outdoor 3 MP PoE Day/Night Network Camera, model TV-IP310PI, provides powerful 3 megapixel night vision in complete darkness for up to 30 meters (100 ft.). This ultra-compact vandal resistant camera is outdoor ready with an IP66 weather rated housing. It comes with a free Apple® and Android™ mobile app and complimentary pro-grade software to manage up to 32 TRENDnet cameras.
Technical Information
Fixed Focal Length:
4 mm
Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/3"
Minimum Illumination:
0 lux
Color Supported:
Color
Field of View:
52° to 89°
Effective Camera Resolution:
3 Megapixel
Video
Video Formats:
  • H.264
  • MJPEG
Maximum Video Resolution:
2048 x 1536
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
4 mm
Lens Included:
Yes
Lens Mount Type:
Board Mount
Maximum Aperture:
f/1.2
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
  • IPv4
  • IPv6
  • UDP
  • TCP
  • ICMP
  • ONVIF
  • DHCP
  • NTP
  • DNS
  • DDNS
  • SMTP
  • FTP
  • SNMP (v1/v2c/v3)
  • NFS
  • Samba
  • HTTP
  • HTTPS
  • PPPoE
  • UPnP
  • RTCP
  • RTSP
  • RTP
  • SSL
  • QoS
  • CIFS
Power Description
Maximum Power Consumption:
5 W
Physical Characteristics
Durability:
  • Vandal Resistant
  • Tamper Proof
Color:
White
Height:
4"
Width:
4.6"
Length:
7"
Weight (Approximate):
13.23 oz
Software
Operating System Supported:
  • Windows
  • Apple iOS
  • Android
Miscellaneous
Features:
  • Motion Detection
  • Digital Noise Reduction
  • Day/Night
Indoor/Outdoor:
Outdoor
System Requirements:
Operating System:
  • Windows 8.1/8/7/Vista/XP
  • Windows Server 2003/2008
Browser:
  • Internet Explorer 9.0 or higher
  • Firefox 13.0 or higher
  • Safari 4.0 or higher
  • Chrome 24.0 or higher
Security Features:
IP Address Filter
Platform Supported:
PC
Environmentally Friendly:
Yes
Environmental Certification:
  • REACH
  • WEEE
  • RoHS
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0012300076838, 0172304337936, 0710931110364, 0809392595381, 3700379531484, 4913603158732, 4923773139936, 7109311103646
UPC: 012300076838, 172304337936, 710931110364, 809392595381
EAN: 0012300076838, 0172304337936, 0710931110364, 0809392595381, 3700379531484, 4913603158732, 4923773139936, 7109311103646
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The TRENDnet TV-IP310PI Security Camera is also known as TV-IP310PI
