Protection Type:
- Surge Protection
- ESD Protection
TRENDnet TI-SG104 PoE Injectors
Part Number:
TI-SG104
Model:
Parts
TRENDnet Parts Accessory Model Overview
Products and parts from TRENDnet.
TRENDnet TI-SG104 PoE Injectors Overview

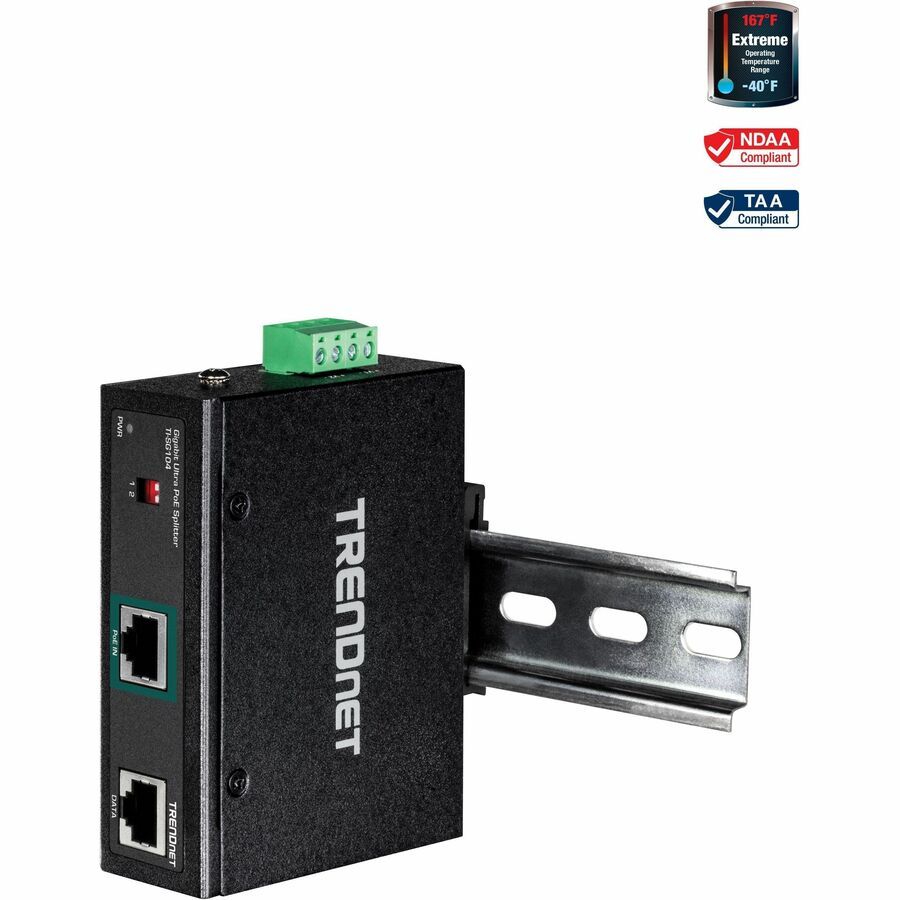

TRENDnet's Industrial Gigabit UPoE Splitter, model TI-SG104, networks a non-PoE device by using a Gigabit Ultra PoE connection and splitting it into separate power and gigabit data sources. The industrial gigabit UPoE splitter can power to up to two devices from a single UPoE source. A convenient DIP switch adjusts output power to 12V, 16V, 24V, or 48V in order to match power requirements for non-PoE devices. The UPoE splitter's dual DC power output provides greater device compatibility.UPoE Powered
No power adapter necessary; the UPoE splitter takes a UPoE network connection, and splits power and data into separate connections to network a non-PoE device with power up to 100m (328ft.).
- GIGABIT ETHERNET : 1 x Gigabit UPoE input port, 1 x Gigabit output port
- NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial Gigabit UPoE Splitter, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
- MANUFACTURER PROTECTION: We stand by the quality of our products.The TI-SG104, Industrial Gigabit UPoE Splitter is backed and supported with 3 years of TRENDnet Manufacturer Protection.
- UPoE POWERED: No power adapter necessary; the UPoE splitter takes a UPoE network connection, and splits power and data into separate connections to network a non-PoE device with power up to 100m (328ft.).
- ADJUSTABLE VOLTAGE OUTPUT: Convenient DIP switch adjusts voltage output to 12V (2.3A), 16V (2.3A), 24V (2.3A) or 48V (1.25A) to match non-PoE device power requirements.
- WALL MOUNTABLE: The UPoE splitter's wall mountable design accommodates most installation scenarios.
- DUAL DC POWER OUTPUT TERMINAL BLOCK: The UPoE splitter includes a dual DC power output terminal block, powering for up to two devices
- For best performance pair with UPoE switches or injectors; Save on installation and equipment cost
- Full Duplex Gigabit speeds: IEEE 802.3bt compatible
Technical Information
Power Description
Minimum Output Voltage:
12 V DC
Maximum Output Voltage:
48 V DC
Interfaces/Ports
Input Ports:
1 x UPoE
Output Ports:
1 x Gigabit Ethernet
Physical Characteristics
Form Factor:
DIN Rail/Wall Mountable
Height:
3"
Width:
7"
Length:
9"
Weight (Approximate):
6.07 oz
Miscellaneous
Package Contents:
- Industrial Gigabit UPoE Splitter
- Quick Installation Guide
- Removable Terminal Block
- DIN-rail and Wall Mount Kit
Certifications & Standards:
Standards:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt compatible
- CE
- FCC
- IEC EN60950-1
- Shock (IEC 60068-2-27)
- Freefall (IEC 60068-2-32)
- Vibration (IEC 60068-2-6)
Country of Origin:
Taiwan
TAA Compliant:
Yes
NDAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0710931161380
UPC:
710931161380
EAN:
0710931161380
UNSPSC:
39121006
