Efficiency:
94%
Number of Fans:
1
TRENDnet TI-S24052 Network Management Devices
Part Number:
TI-S24052
Model:
TRENDnet Network Management Devices Model Overview
Discover TRENDnet’s easy-to-use management solutions
TRENDnet TI-S24052 Network Management Devices Overview

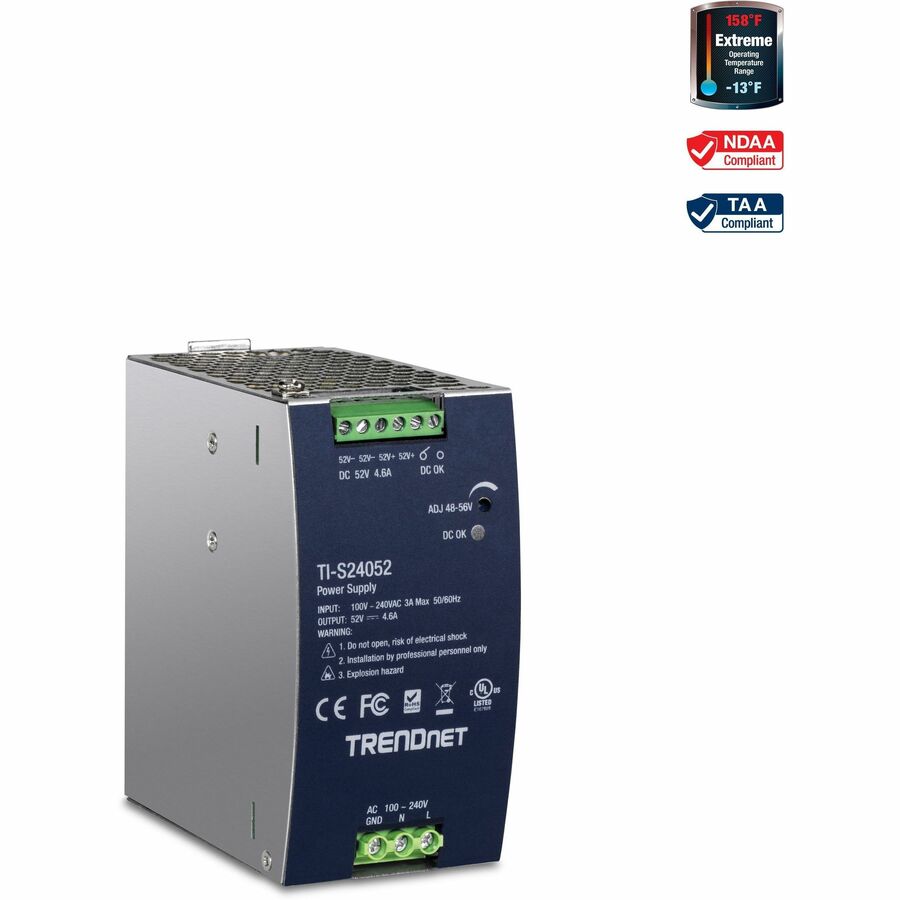

TRENDnet's AC to DC Industrial DIN-Rail Power Supply with PFC Function, model TI-S24052, supplies up to 240W (52V DC, 4.61A) of power to industrial equipment, such as PoE switches, injectors, and WiFi access points. This industrial power supply supports active PFC to help eliminate unusable reactive power, and comes with an integrated DIN-Rail mount. It also supports protections for overload, short circuit, over voltage, over current, and over temperature. The industrial power supply is designed for industrial environments with an operating temperate range of -25° - 70° C (-13° - 158° F).
- DEVICE INTERFACE: Input: 90 - 264V AC, 47 - 63Hz, 3.15A 127 - 370V DC; Output: 240W, 48 - 56V, 0 - 4.6A; DIN-rail: TS-35/7.5 or 15
- NDAA + TAA COMPLIANT: With our NDAA and TAA compliant DIN-Rail Power Supply, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
- MANUFACTURER PROTECTION: We stand by the quality of our products.The TI-S24052 240W, 52V DC, 4.61A AC to DC DIN-Rail Power Supply with PFC Function is backed and supported with 1 year of TRENDnet Manufacturer Protection.
- 240W POWER: The UL508 approved industrial power supply provides up to 240W (52V DC, 4.61A) of power for PoE devices, such as switches, and access points.
- INDUSTRIAL APPLICATIONS: Power network devices for manufacturing, general industrial, warehousing, surveillance, and corporate applications.
- PROTECTIONS: Overload, and over temperature protection
- PASSIVE COOLING: The industrial power supply cools itself by natural air convection
- DIN-RAIL MOUNT: Metal enclosure with integrated DIN-Rail mount
- 150% Peak Load Capability; UL 508 approved
Technical Information
Power Description
Output Voltage:
52 V DC
Output Voltage Detail:
52 V DC @ 4.61 A
Output Current:
4.61 A
Output Power:
240 W
Physical Characteristics
Form Factor:
DIN Rail
Height:
2.5"
Width:
4.9"
Depth:
4.5"
Weight (Approximate):
1.86 lb
Miscellaneous
Environmentally Friendly:
Yes
Environmental Compliance:
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0710931162431
UPC:
710931162431
EAN:
0710931162431
UNSPSC:
39121004
The TRENDnet TI-S24052 Network Management Devices is also known as
TI-S24052
