TRENDnet TI-PGM102 Data Terminal

Part Number: TI-PGM102

Model: Parts

$227.34

In Stock

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Total Number of Network Ports

Network (RJ-45)

Yes

Port/Expansion Slot Details

8 x Gigabit Ethernet PoE+2 x Gigabit Ethernet Expansion Slot

Media Type Supported

Twisted PairOptical Fiber

Product Description:

Fixed/Vehicle Mount Data Terminal, TRENDnet, 10-port Industrial Gigabit PoE+ DIN-Rail Switch -20 65 C (-4 149 F)

Explore all TRENDnet Parts Accessories

Add to Quote

Overview

TRENDnet Parts Accessory Model Overview

Products and parts from TRENDnet.

TRENDnet TI-PGM102 Data Terminal Overview

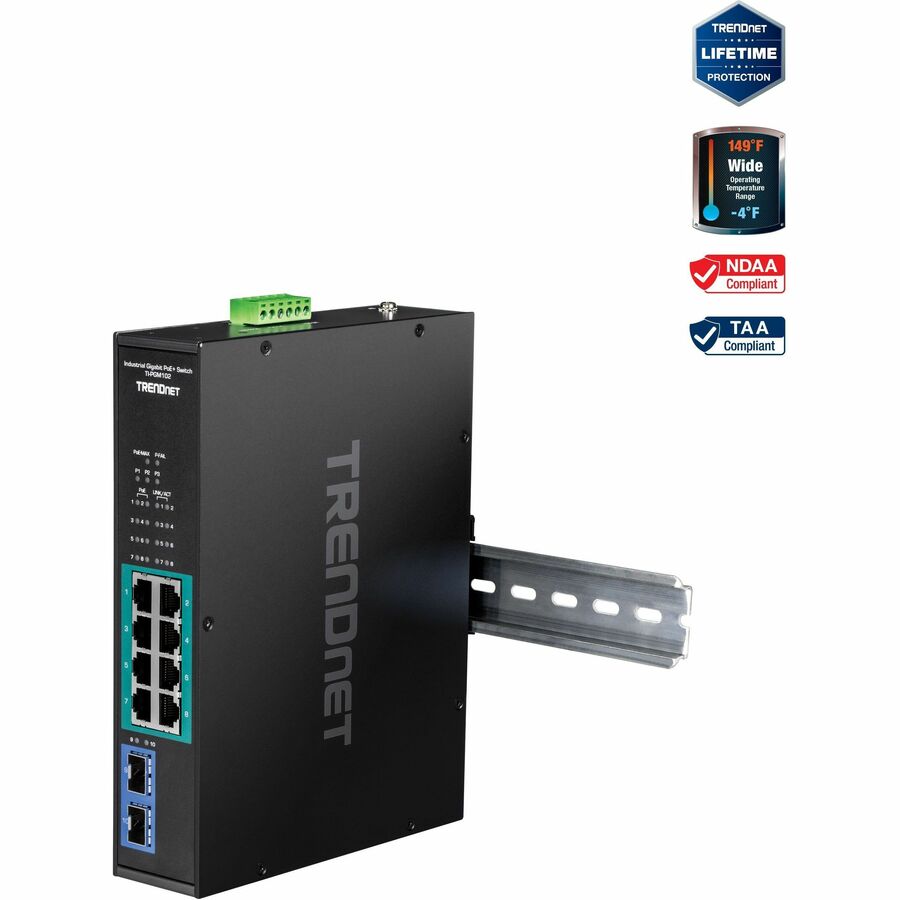

TRENDnet's 10-Port Industrial Gigabit PoE+ DIN-Rail Switch -20° - 65°C (-4° - 149°F), model TI-PGM102, has eight gigabit PoE+ ports with a 240W PoE power budget, plus two gigabit SFP slots for long distance fiber applications. Users are able to connect eight PoE+ devices to the switch, while still providing two gigabit SFP slots for additional network connections. This switch is equipped with an IP30 rated metal enclosure, designed to operate within a wide temperature range of -20° - 65°C (-4° - 149°F) for harsh, industrial environments.

8 x Gigabit PoE+ ports
2 x Gigabit SFP slots
240W PoE power budget
20Gbps switching capacity
Hardened IP30 rated metal switch
Includes DIN-Rail and wall mounts
Wide operating temperature range of -20° - 65°C (-4° - 149°F)
Redundant power inputs with overload current protection
Alarm output triggered by power failure
Power supply sold separately (models: TI-S24052, TI-S24048)
NDAA / TAA compliant
Lifetime Warranty

PoE Power

A 240W PoE+ power budget supplies up to eight Power over Ethernet devices with PoE+ power.

Fault Tolerance

Features redundant power inputs with overload current protection and output alarm relay.

Industrial Hardened Design

Rugged IP30 rated housing is designed to operate within a wide temperature range of -20° - 65°C (-4° - 149°F).

More from the Manufacturer

Detailed Specs

Interfaces/Ports

Total Number of Network Ports:

Network (RJ-45):

Yes

Port/Expansion Slot Details:

8 x Gigabit Ethernet PoE+
2 x Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported:

Twisted Pair
Optical Fiber

Ethernet Technology:

Gigabit Ethernet

Network Technology:

1000Base-FX
1000Base-T

I/O Expansions

Total Number of Expansion Slots:

Expansion Slot Type:

SFP (mini-GBIC)

Number of SFP Slots:

Network & Communication

Layer Supported:

Networking Standards:

IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3z
IEEE 802.3x
IEEE 802.3af
IEEE 802.3at

Power Description

PoE (RJ-45) Port:

Yes

PoE Budget:

240 W

Frequency:

50 Hz
60 Hz

Power Source:

AC/DC

Power Consumption:

6.30 W

Plug/Connector Type:

Terminal Block

Physical Characteristics

Product Material:

Metal

Form Factor:

DIN Rail Mountable
Wall Mountable

Height:

1.8"

Width:

8.3"

Depth:

6.3"

Weight (Approximate):

2.43 lb

Miscellaneous

Package Contents:

10-Port Industrial Gigabit PoE+ DIN-Rail Switch -20° - 65°C (-4° - 149°F)
Quick Installation Guide
Removable Terminal Block

Country of Origin:

Taiwan

TAA Compliant:

Yes

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0710931162202

UPC: 710931162202

EAN: 0710931162202

UNSPSC: 43222612
