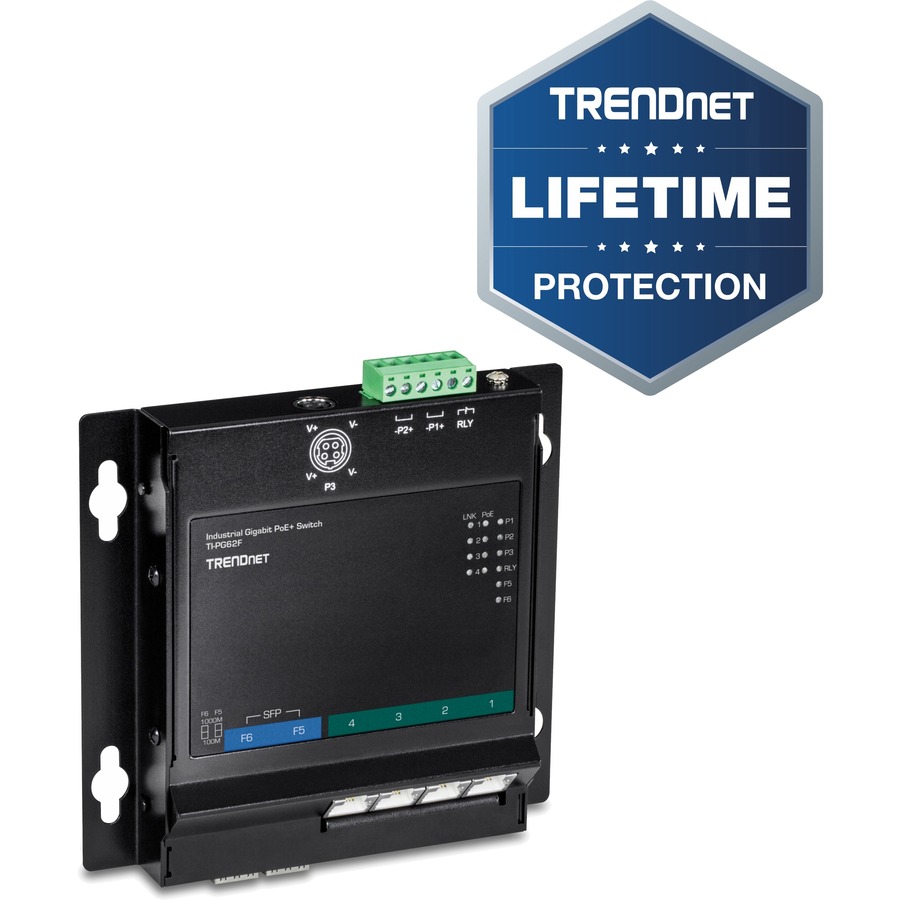

TRENDnet TI-PG62F Wireless Switch

TRENDnet - 6-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch
  • 4 x Gigabit PoE+ ports
  • 2 x Gigabit SFP slots
  • 120W PoE power budget
  • 12Gbps switching capacity
  • Forwarding rate: 8.9Mpps (64-byte packet size)
  • Supports jumbo frames up to 10KB
  • Hardened IP30 rated metal housing
  • Includes DIN-Rail bracket and magnetic wall mount kit
  • Operating temperature range of -40° - 75° C (-40° - 167° F)
  • Redundant power inputs with overload current protection
Read More
$352.85
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
TRENDnet Parts Accessory Model Overview
Products and parts from TRENDnet.
TRENDnet TI-PG62F Wireless Switch Overview
TRENDnet's Industrial Gigabit PoE+ Wall-Mounted Front Access Switch Series is well suited for IP surveillance, IoT, and automation networks for homes and businesses. These hardened industrial gigabit flat switches provide front access to ports and power interfaces for easier installation. The flat and compact size make them ideal for cabinet installations where space is limited. Each hardened industrial front access switch features gigabit PoE+ ports for connecting devices, such as wireless access points, IP cameras, and IoT appliances. These hardened front access switches come equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments.

Wall-Mounted Front Access Switch

The wall mountable flat switch provides front access to ports and power interfaces for easier installation. It's flat and compact size make it ideal for cabinet installations where space is limited.

PoE+ Power

A 120W PoE power budget supplies PoE power from the hardened industrial front access switch to up to eight Power over Ethernet devices.

Hardened Industrial Design

Equipped with an IP30 rated metal enclosure, this front access switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments.

Network Ports

4 x Gigabit PoE+ ports, and 2 x Gigabit SFP Slots

PoE Power

Supplies up to 30W of PoE+ power per port with a 120W power budget

Hardware Design

Wall mountable hardware design provides front access to ports and power interfaces for easier installation

Compact

The flat and compact size is ideal for cabinet installations where space is limited

Mounting Hardware

Includes DIN-Rail bracket and magnetic wall mount kit

Switching Capacity

12Gbps switching capacity

Redundant Power

Dual power inputs provide redundant power with overload current protection, and an output alarm relay to indicate input power failure. (Power supply sold separately, models: TI-S12048, TI-S24048, and 48VDC3000)

Alarm Relay

Alarm relay output triggered by power failure of primary or secondary power inputs

Jumbo Frames

Sends larger packets, or jumbo frames (up to 10KB), for increased performance

Wide Temperature Range

Hardened industrial housing offers a wide operating temperature range of -40° - 75° C (-40° - 167° F), allowing for installations in extreme hot and cold environments

Shock and Vibration Resistant

Hardened design rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6) for industrial settings

More from the Manufacturer

Interfaces/Ports
Total Number of Network Ports:
6
Modular:
Yes
Network (RJ-45):
Yes
Port/Expansion Slot Details:
  • 4 x Gigabit Ethernet PoE+
  • 2 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
  • Optical Fiber
  • Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
  • 1000Base-T
  • 1000Base-FX
I/O Expansions
Number of Total Expansion Slots:
2
Expansion Slot Type:
SFP (mini-GBIC)
Number of SFP Slots:
2
Network & Communication
Layer Supported:
2
Networking Standards:
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3z
  • IEEE 802.3x
  • IEEE 802.3af
  • IEEE 802.3at
Management & Protocols
Manageable:
No
Power Description
PoE (RJ-45) Port:
Yes
PoE Budget:
120 W
Input Voltage:
  • 120 V AC
  • 230 V AC
  • 48 V DC
  • 56 V DC
Frequency:
  • 50 Hz
  • 60 Hz
Power Source:
AC/DC
Power Consumption:
7.20 W
Plug/Connector Type:
Terminal Block
Physical Characteristics
Material:
Metal
Form Factor:
  • DIN Rail Mountable
  • Wall Mountable
  • Magnetic Mount
  • Compact
  • Cabinet Mount
  • Enclosure
Height:
5.7"
Width:
5.9"
Depth:
1.1"
Weight (Approximate):
1.28 lb
Miscellaneous
Package Contents:
  • 6-Port Industrial Gigabit PoE+ Wall-Mounted Front Access Switch
  • Quick Installation Guide
  • Removable Terminal Block
  • DIN-Rail, Wall and Magnet Mount Kit
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0710931161793
UPC: 710931161793
EAN: 0710931161793
UNSPSC: 43222612
