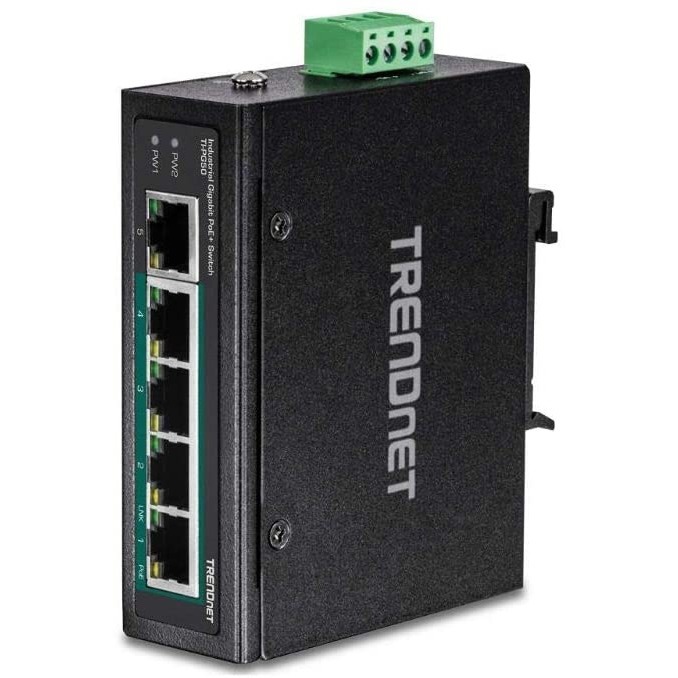

TRENDnet's 5-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG50, has four gigabit PoE+ ports with a 120W PoE power budget. Users are able to connect four PoE+ devices to this industrial switch, while simultaneously providing a non-PoE gigabit port for connectivity to the network. The TI-PG50 industrial switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments
PoE Power
A 120W PoE+ power budget for up to four Power over Ethernet devices with PoE+ power.
Fault Tolerance
The industrial switch features redundant power inputs with overload current protection.
Industrial Design
Equipped with a rugged IP30 rated housing, and operate within a wide temperature range of -40° - 75° C (-40° - 167° F).
Network Ports
4 x Gigabit PoE+ ports and 1 x Gigabit port
DIN-Rail/Wall Mounts
IP30 rated metal enclosure with included DIN-Rail and wall mount hardware
Jumbo Frame
Sends larger packets, or Jumbo Frames (up to 9KB), for increased performance
Redundant Power
Redundant power inputs with overload current protection (compatible power supply sold separately models: TI-S12048 / TI-S24048)
Switching Capacity
10Gbps switching capacity
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
Grounding Point
Grounding point on the industrial switch protects equipment from external electrical surges
PACKAGE CONTENTS
TI-PG50
Quick Installation Guide
Removable terminal block
DIN-Rail and wall mount kit
