Application/Usage:
- Data Networking
- Optical Network
TRENDnet TI-MGBSX Data Networking
Part Number:
TI-MGBSX
Model:
Parts
TRENDnet Parts Accessory Model Overview
Products and parts from TRENDnet.
TRENDnet TI-MGBSX Data Networking Overview

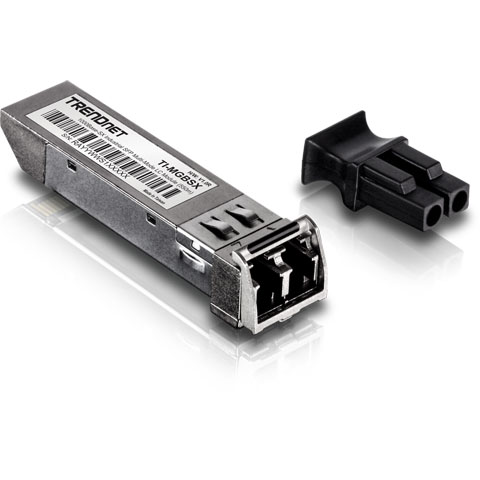

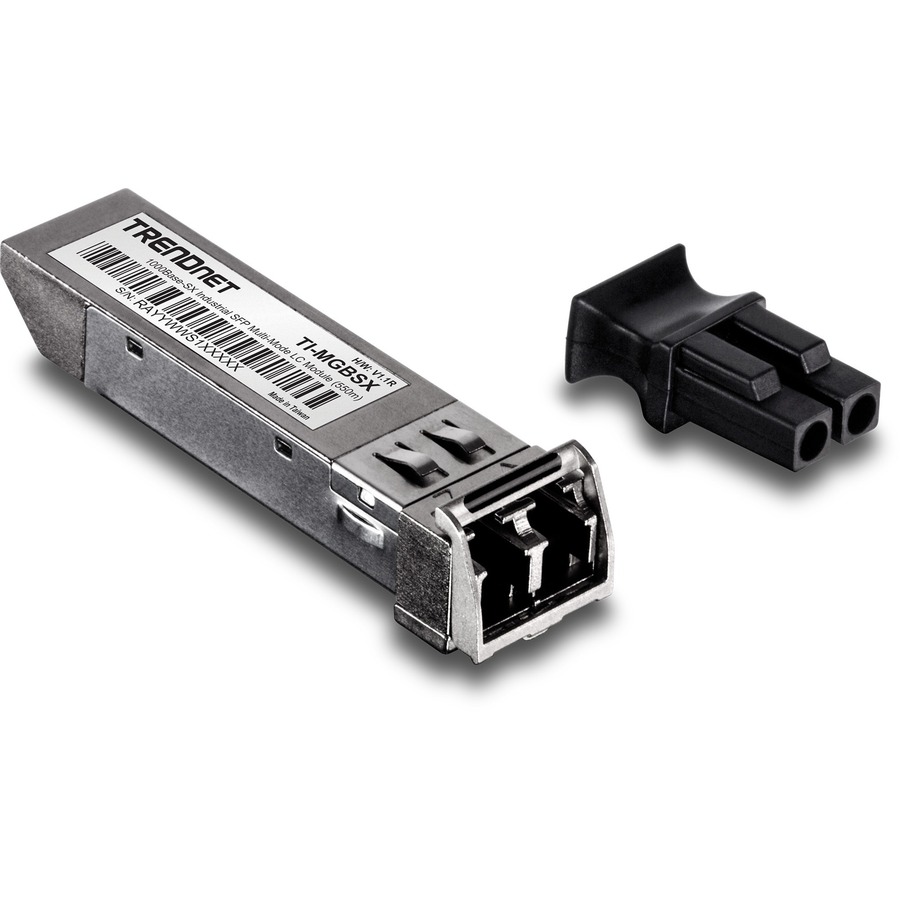

The 1000Base-SX Industrial SFP Multi-Mode LC Module, model TI-MGBSX, is designed to operate within a wide temperature range and is well suited for industrial environments. This SFP module works with standard SFP slots found on industrial switches and fiber converters. The TI-MGBSX is compatible with Duplex LC fiber connector types and supports gigabit multi-mode fiber connections at distances of up to 550 m (1804 ft.).Fiber Applications
Long distance fiber networking for industrial, manufacturing, and corporate/education campus applications.
Fiber Mode / DistanceMulti-Mode transceiver spans distances up to 550 m (1804 ft.) and supports up to 1.25 Gbps.
CompatibilityHot-pluggable with a MSA compliant SFP slot and compatible with fiber cables with LC-type duplex connectors.
- Compliant with IEEE 802.3z Gigabit Ethernet
- ANSI Fiber Channel compliant
- Small Form-Factor Pluggable (SFP) and Multi-Source Agreement (MSA) compliant
- Wide operating temperature range of -40°- 85 °C (-40° - 185 °F)
- Supports data rates of up to 1.25 Gbps
- Transmission distance of up to 550 m (1804 ft.)
- Low Electromagnetic Interference (EMI) design
- Supports 850 nm multi-mode network transmissions
- Duplex LC optical interface
- Low power consumption
- NDAA / TAA compliant
- Lifetime Warranty
Technical Information
Interfaces/Ports
Total Number of Ports:
1
Connector Type:
LC
Interfaces/Ports Details:
1 x LC Duplex 1000Base-SX Network
Media & Performance
Media Type Supported:
Optical Fiber
Fiber Mode Supported:
Multi-mode
Ethernet Technology:
- Gigabit Ethernet
- 1.25 Gigabit Ethernet
Network Technology:
1000Base-SX
Physical Characteristics
Form Factor:
Hot-pluggable
Height:
3"
Width:
5"
Depth:
10"
Weight (Approximate):
1.43 lb
Miscellaneous
Package Contents:
- 1000Base-SX Industrial SFP Multi-Mode LC Module (550 m)
- Quick Installation Guide
Compatibility:
MSA Compliant
Country of Origin:
Taiwan
NDAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0710931161045, 0818230420235, 0818242482160
UPC:
710931161045, 818230420235, 818242482160
EAN:
0710931161045, 0818230420235, 0818242482160
UNSPSC:
43201404
Get help from a Barcoding Expert!
The TRENDnet TI-MGBSX Data Networking is also known as
TRE-TIMGBSX
