TRENDnet TI-M6024 Power Device

Part Number: TI-M6024
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$51.49

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Input Voltage
120 V AC230 V AC
Output Voltage
24 V DC
Output Voltage Detail
24 V DC @ 2.5 A
Output Current
2.50 A

Product Description:

  60 W Single DIN-Rail Power supply
Explore all TRENDnet Parts Accessories
Add to Quote
TRENDnet TI-M6024 Power Device
TRENDnet TI-M6024 Power Device

TRENDnet Parts Accessory Model Overview

Products and parts from TRENDnet.
TRENDnet TI-M6024 Power Device Overview

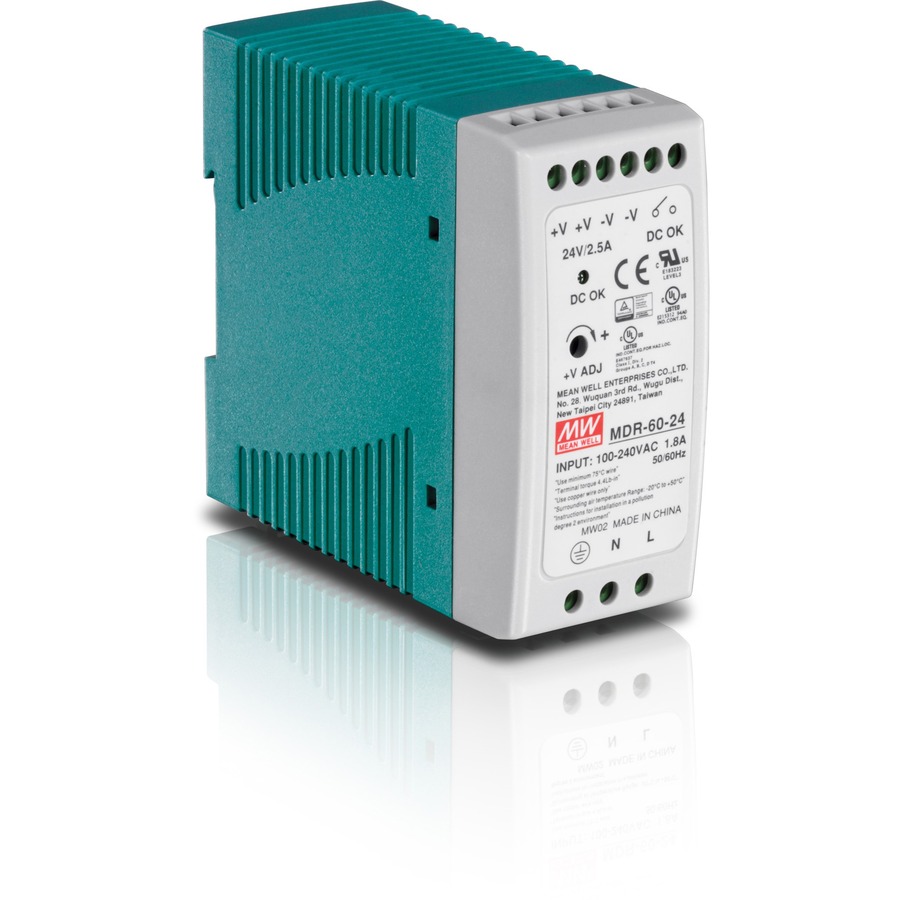

TRENDnet's AC to DC Industrial DIN-Rail Power Supply, model TI-M6024, supplies up to 60W (24V DC, 2.5A) of power to industrialequipment, such as switches, injectors, and WiFi access points. This DIN-Rail power supply comes with an integrated DIN-Railmount, and short circuit, over power, and overload current protection.

  • DEVICE INTERFACE: Input: 100 - 240V AC, 47 - 63Hz, 1.8A 120 - 370V DC; Output: 60W, 24 - 30V, 0 - 2.5A; DIN-Rail:TS-35/7.5 or 15
  • 60W POWER: The power supply provides up to 60W of power (24V DC, 2.5 A)
  • OUTPUT VOLTAGE: 24 - 30V DC
  • HOUSING: IP30 Rated DIN-Rail Mount
  • OPERATING TEMPERATURE: The IP30 Rated housing provides an extreme -20 to 70 °C (-4 to 158 °F) operating temperature range
  • PEAK LOAD CAPABILITY: 150% peak load capability
  • COOLING METHOD: Natural air convection is used to cool the 60W power supply
  • PROTECTION FUNCTIONS: Short circuit/overload/over voltage/over current protection with a self-recovery protection type.
  • UL 62368 Approved
  • ADDITIONAL FEATURES: 100% full load burn-in test; Built-in DC OK relay contact

    • More from the Manufacturer

    Power Description
    Input Voltage:
    • 120 V AC
    • 230 V AC
    Output Voltage:
    24 V DC
    Output Voltage Detail:
    24 V DC @ 2.5 A
    Output Current:
    2.50 A
    Output Power:
    60 W
    Physical Characteristics
    Form Factor:
    DIN Rail
    Height:
    3"
    Width:
    5"
    Length:
    10"
    Weight (Approximate):
    10.58 oz
    Miscellaneous
    Additional Information:
    Certifications:
    • CE
    • UL 508
    • UL 60950-1
    • CB 60950-1
    • TUV EN60950-1
    • Class I
    • Div.2 hazardous locations T4
    Compatibility:
    • Network Cameras
    • Access Points
    TRENDnet Switches:
    • Ti-G50
    • Ti-G62
    • Ti-G80
    • Ti-F11sfp
    Country of Origin:
    China
    TAA Compliant:
    Yes
    NDAA Compliant:
    Yes
    Warranty
    Limited Warranty:
    3 Year
    Item Numbers
    GTIN: 0710931160376
    UPC: 710931160376
    EAN: 0710931160376
    UNSPSC: 39121004
