Features:
- Surge Protection
- Fanless

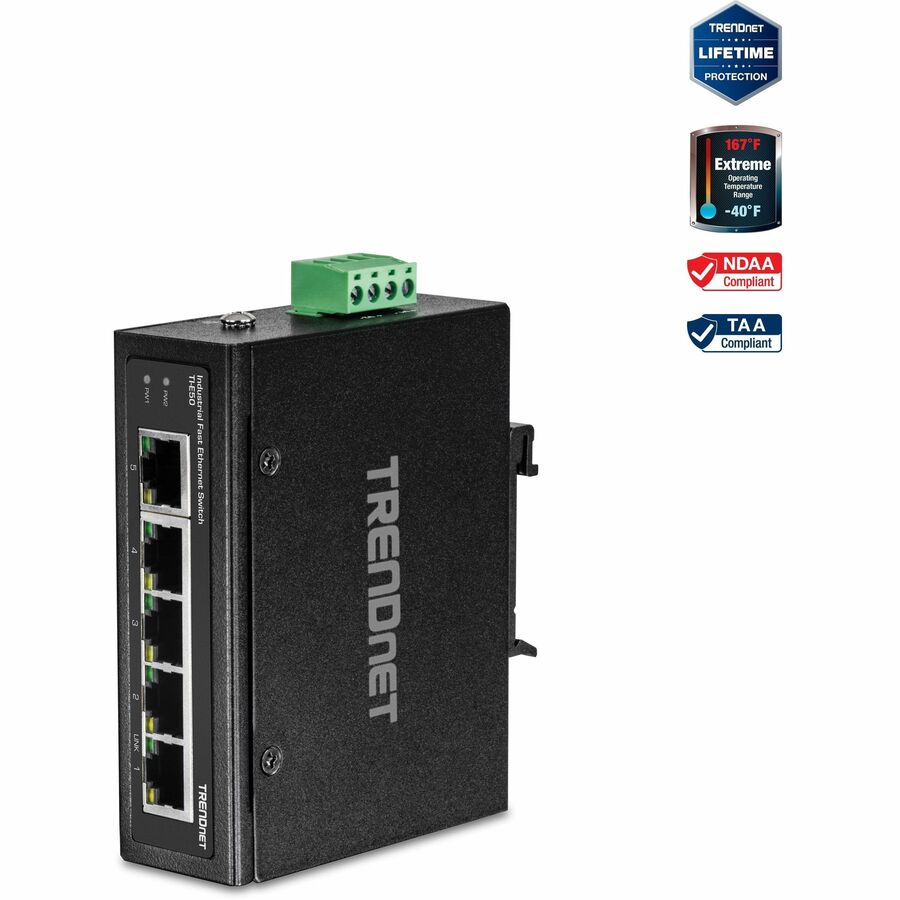

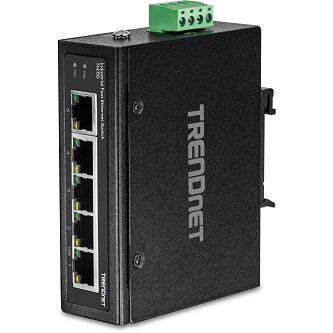

TRENDnet TI-E50 Wireless Switch
Part Number:
TI-E50
Model:
Parts
TRENDnet Parts Accessory Model Overview
Products and parts from TRENDnet.
TRENDnet TI-E50 Wireless Switch Overview
- 5 x Fast Ethernet ports
- 1Gbps switching capacity
- Hardened IP30 rated metal switch
- Includes DIN-Rail mount and wall mount brackets
- Wide operating temperature range of -40° - 75° C (-40° - 167° F)
- Dual inputs provide redundant power with overload current protection
- Power supply sold separately (model: TI-M6024)
- Fanless design for silent operation
- Lifetime Warranty
TRENDnet's Industrial Fast Ethernet DIN-Rail Switches feature a rugged IP30 rated metal enclosure. These industrial Ethernet switches are designed to withstand high levels of vibration and shock, operate in both low and high temperatures for industrial environments within a -40° - 75° C (-40° - 167° F) wide-temperature range. Redundant power inputs with overload current protection on each industrial Ethernet switch minimizes network downtime.
Easy Installation
No configuration needed, simply connect network devices to the industrial Ethernet switch.
Redundant Power
The industrial Ethernet switches feature dual power inputs to provide redundant power with overload current protection.
Industrial Hardened Design
Equipped with a rugged IP30 rated housing, and designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F).
Technical Information
Interfaces/Ports
Total Number of Network Ports:
5
Network (RJ-45):
Yes
Port/Expansion Slot Details:
5 x Fast Ethernet Network
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
Fast Ethernet
Network Technology:
100Base-X
Maximum Data Transfer Rate:
25 MB/s
Network & Communication
Layer Supported:
2
Networking Standards:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
Reliability
MTBF:
580159 Hour
Power Description
Input Voltage:
- 12 V DC
- 56 V DC
Power Source:
Power Supply
Power Consumption:
1.68 W
Plug/Connector Type:
Terminal Block
Physical Characteristics
Product Material:
Aluminum
Form Factor:
- DIN Rail Mountable
- Wall Mountable
Height:
1.2"
Width:
3.2"
Length:
4"
Weight (Approximate):
5.70 oz
Miscellaneous
Package Contents:
- 5-Port Industrial Fast Ethernet DIN-Rail Switch
- Removable Terminal Block
- DIN-Rail / Wall Mount Kit
Application/Usage:
Network
Certifications & Standards:
- CE
- FCC
- LVD
- Shock (IEC 60068-2-27)
- Freefall (IEC 60068-2-32)
- Vibration (IEC 60068-2-6)
- IEC 61000-4-2
- IEC 61000-4-4
- IEC 61000-4-5
Country of Origin:
Taiwan
TAA Compliant:
Yes
NDAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0710931161755
UPC:
710931161755
EAN:
0710931161755
UNSPSC:
43222612
Get help from a Barcoding Expert!
The TRENDnet TI-E50 Wireless Switch is also known as
TRE-TIE50
