TRENDnet TEW-822DRE Wireless Transmitter / Receiver

The TRENDnet TEW-822DRE Wireless Transmitter / Receiver has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

TRENDnet - TRENDnet TEW-822DRE IEEE 802.11ac 1.17 Gbit/s Wireless Range Extender - 2.40 GHz, 5 GHz - MIMO Technology - 1 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - Wall Mountable

This wireless range extender uses IEEE 802.11ac technology with steadfast speed of up to 1.17 Gbit/s for optimal wireless signals
Ethernet port provides Ethernet connections for fast data transfer and large file transfers between your access point and wired network

Need a different version? See all TRENDnet Parts Accessories

Discontinued Need Assistance?

Chat Now for Qty Discount

Add to Quote

TRENDnet TEW-822DRE Wireless Transmitter / Receiver

Overview

TRENDnet Parts Accessory Model Overview

Products and parts from TRENDnet.

TRENDnet TEW-822DRE Wireless Transmitter / Receiver Overview

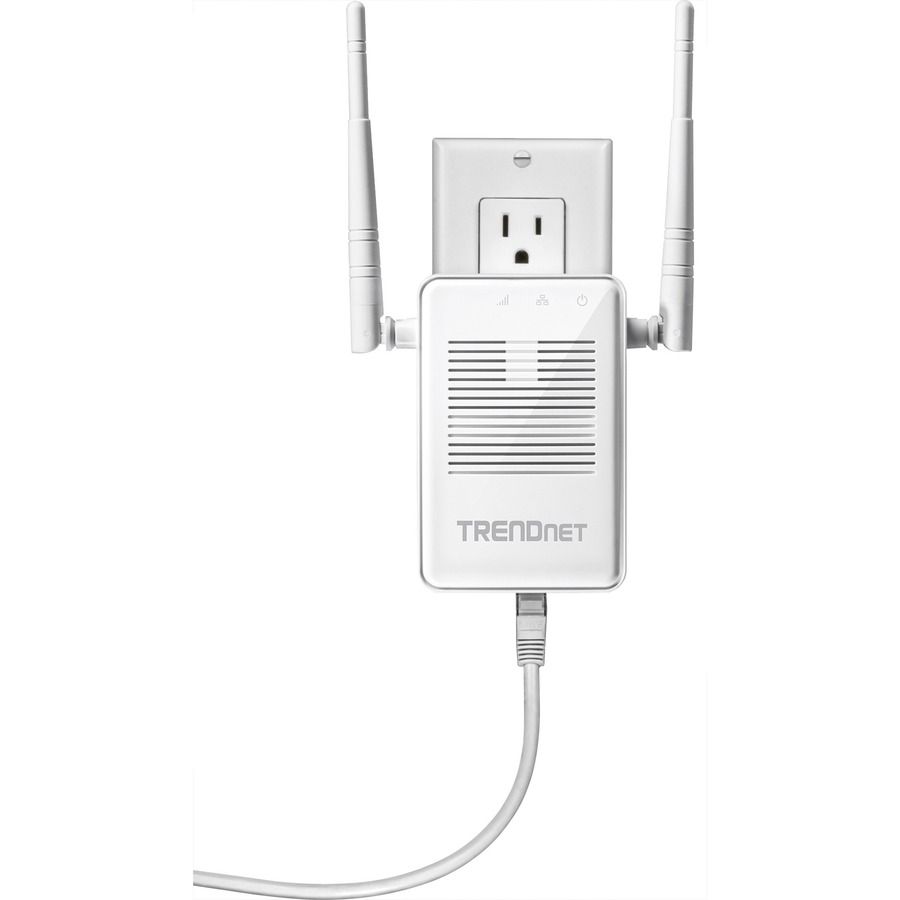

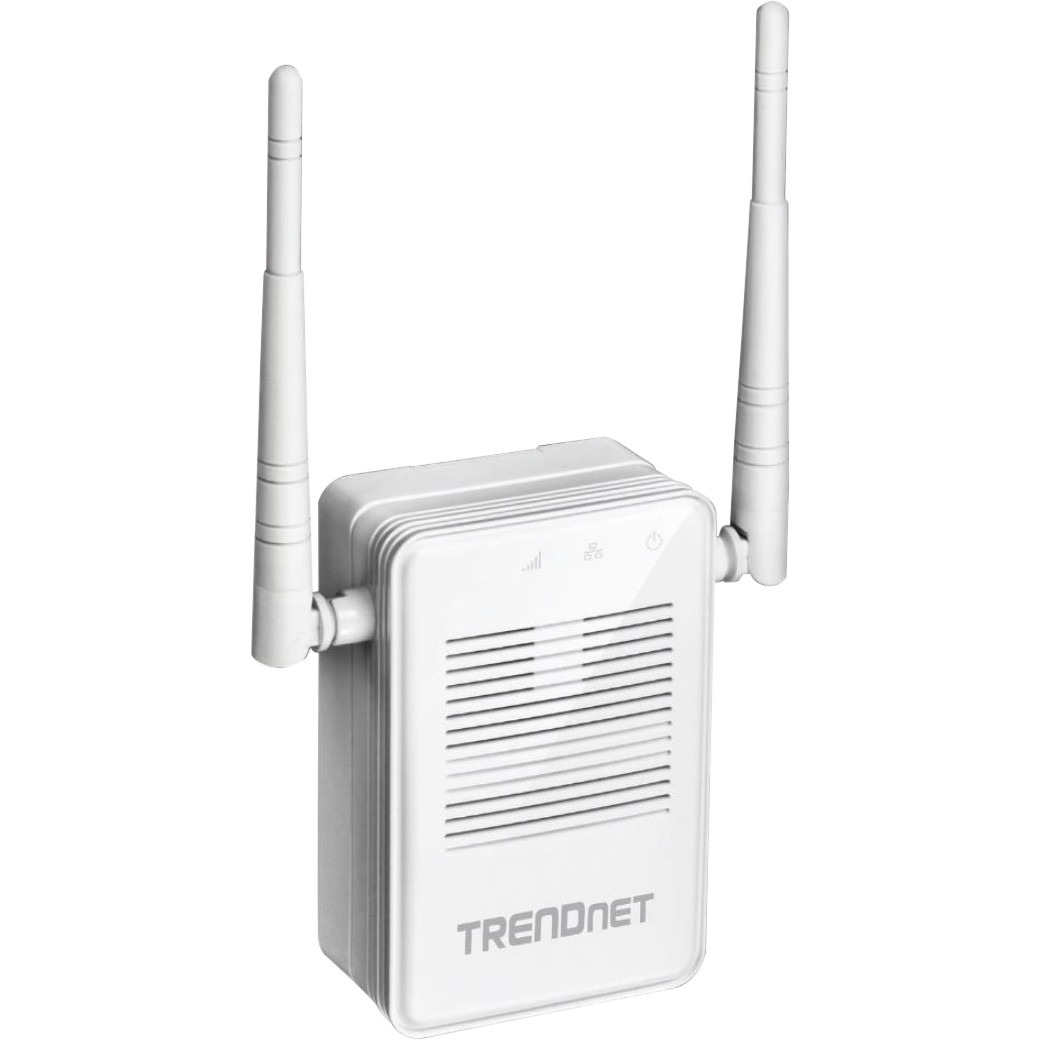

TRENDnet's AC1200 WiFi Range Extender, model TEW-822DRE, offers extreme wireless coverage to eliminate existing wireless network dead spots. Setup takes minutes with no drivers to install and it stays out of the way by plugging directly into an outlet. Connect to either an existing WiFi N or WiFi AC router and extend concurrent WiFi N and AC networks into an area with low or no wireless.

Blasts Away Deadspots
High performance WiFi amplifiers and external antennas broadcast strong AC1200 WiFi into areas with low or no coverage.

Extreme WiFi for All
All home WiFi devices are supported by concurrent 867 Mbps WiFi AC and 300 Mbps WiFi N networks.

Beamforming = Better
Beamforming increases real-time performance by directing stronger wireless signals to each device's specific location.

Easy Setup
Quick intuitive setup connects to either a WiFi AC or WiFi N network and adopts existing WiFi settings

AC1200 Dual Band
Broadcasts concurrent high speed 867 Mbps WiFi AC + 300 Mbps WiFi N networks

Extreme Coverage
Adjustable external antennas, high power amplifiers, and multiple antenna technology produces extreme wireless coverage

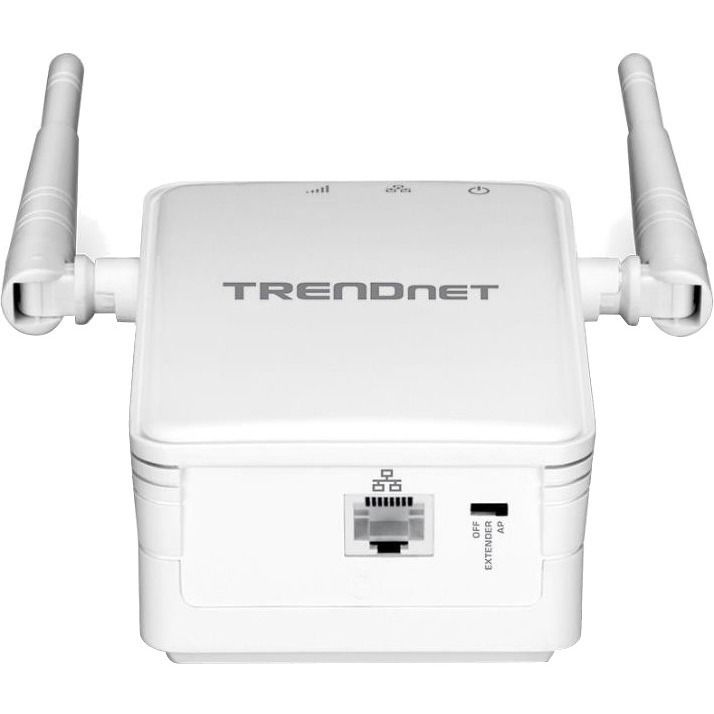

Gigabit Port
Gigabit port extends a high performance connection to a wired device

No Clutter
The extender plugs directly into an outlet

Operating Modes
External switch toggles between Extender (connects to a WiFi network) and Access Point (connects to a wired network) modes

Encrypted Wireless
Supports the latest encryption standards

Compatibility
Compatible with legacy wireless devices

Targeted Beamforming
Increased real-time performance by directing stronger wireless signals to a device's specific location

Detailed Specs

Technical Information

Wireless LAN Standard:

IEEE 802.11ac

Frequency Band:

2.40 GHz
5 GHz

ISM Band:

Yes

UNII Band:

Yes

Number of External Antennas:

Wireless Transmission Speed:

1.17 Gbit/s

Wireless Security:

WEP
WPA/WPA2-PSK
WPA/WPA2-RADIUS

MIMO Technology:

Yes

Beamforming Technology:

Yes

Data Encryption:

Yes

Encryption Standard:

WEP
WPA-PSK
WPA2-PSK
WPA
WPA2

Interfaces/Ports

Ethernet Technology:

Ethernet
Fast Ethernet
Gigabit Ethernet

Number of Network (RJ-45) Ports:

PoE (RJ-45) Port:

VGA:

HDMI:

USB:

Powerline:

Management Port:

Physical Characteristics

Color:

White

Form Factor:

Wall Mountable

Height:

2.4"

Width:

5.9"

Depth:

5.1"

Weight (Approximate):

9.35 oz

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0710931130706, 0710931160703, 0710931160710

UPC: 710931130706, 710931160703, 710931160710

EAN: 0710931130706, 0710931160703, 0710931160710

UNSPSC: 43222631
