Application/Usage:
Data Networking

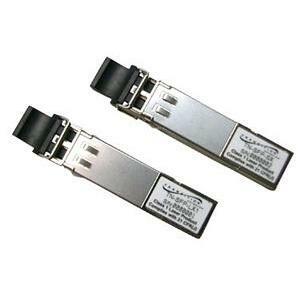

Transition TN-SFP-SX Products
Part Number:
TN-SFP-SX
Model:
Parts
Technical Information
Interfaces/Ports
Total Number of Ports:
1
Connector Type:
LC
Interfaces/Ports Details:
1 x LC 1000Base-SX
Media & Performance
Media Type Supported:
Optical Fiber
Fiber Mode Supported:
Multi-mode
Maximum Distance Supported:
0.55 km
Power Description
Input Voltage:
3.3 V DC
Physical Characteristics
Form Factor:
Hot-pluggable
Height:
0.3"
Width:
0.5"
Depth:
2.2"
Miscellaneous
Additional Information:
- Fiber Channel Switch Infrastructure
- XDSL Applications
- Metro Edge Switching
- 850nm Wavelength
- Compliant with Fiber Channel 1x SM-LC-L FC-PI
- Min TX PWR: -9.5 dBm
- Max TX PWR: -4.0 dBm
- RX Sensitivity: -17.0 dBm
- Max In PWR: -3.0 dBm
- Link Budget: 7.5 dB
Compatibility:
- The device is designed for use in Switches and routers compatible with Small Form Factor Pluggable Multi-Sourcing Agreement (MSA).
Certifications & Standards:
- IEEE 802.3 2003
- ANSI X3.297-1997
- IEEE 802.3z: Gigabit Ethernet
Compliance:
- IEC-60825
- FDA 21
- CFR 1040.10 and 1040.11
Country of Origin:
Taiwan
TAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0648177013876, 0648177138760
UPC:
648177013876, 648177138760
EAN:
0648177013876, 0648177138760
UNSPSC:
43201404
The Transition TN-SFP-SX Products is also known as
TNI-TNSFPSX
