Application/Usage:
Optical Network

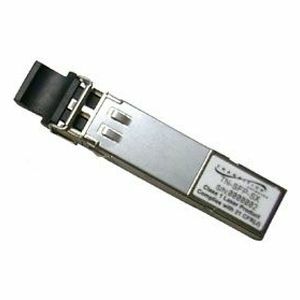

Transition TN-SFP-ESX6 Products
Part Number:
TN-SFP-ESX6
Model:
Parts
Technical Information
Interfaces/Ports
Total Number of Ports:
1
Connector Type:
LC
Interfaces/Ports Details:
1 x LC 1000Base-SX
Media & Performance
Media Type Supported:
Optical Fiber
Fiber Optic Cable Standard:
62.5/125 µm
Fiber Mode Supported:
Multi-mode
Maximum Data Transfer Rate:
1
Physical Characteristics
Height:
0.3"
Width:
0.5"
Depth:
2.2"
Miscellaneous
Additional Information:
- Temperature: -10°C to 85°C
- Min TX Power: -10.0 dBm
- Max TX Power: -3.0 dBm
- RX Sensitivity: -18.0 dBm
- Max Input Power: -3.0 dBm
- Link Budget: 8.00 dB
Country of Origin:
Taiwan
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0648177003969
UPC:
648177003969
EAN:
0648177003969
UNSPSC:
43222612
Get help from a Barcoding Expert!
The Transition TN-SFP-ESX6 Products is also known as
TNI-TNSFPESX6
