Transition SGPAT1040-105-NA Data Networking

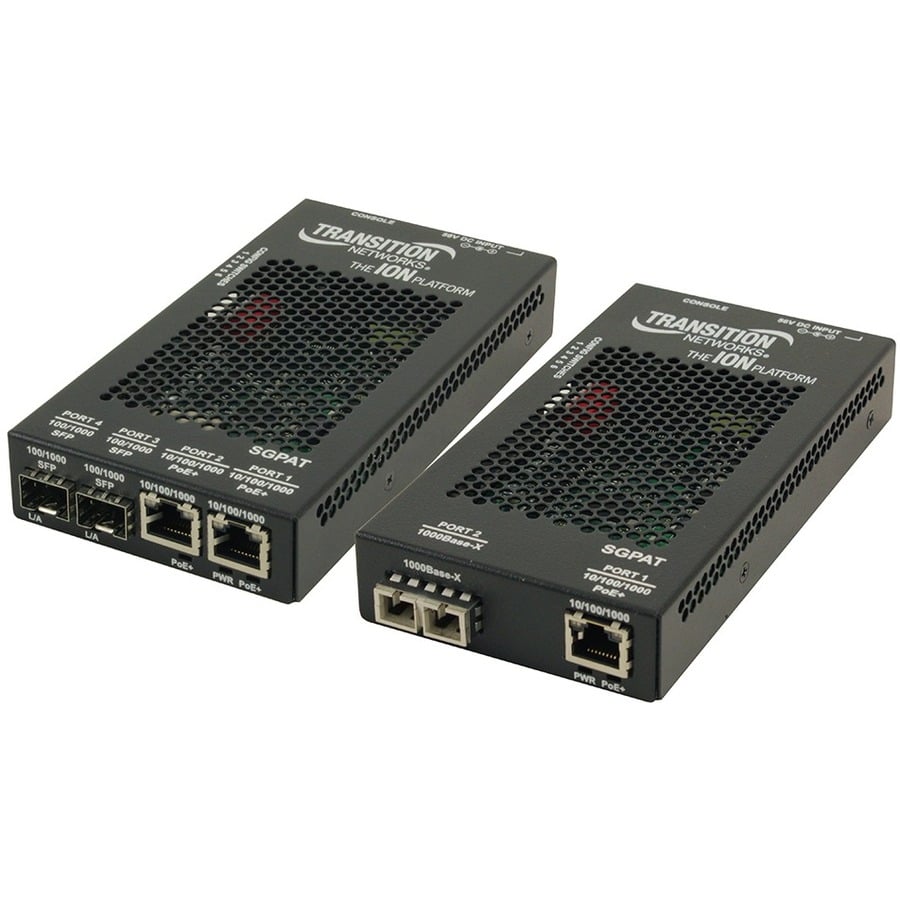

Transition - Transition Networks SGPAT1040-105 Transceiver/Media Converter, 1 x Network (RJ-45), Gigabit Ethernet, 10/100/1000Base-T, 1000Base-X, 1 x Expansion Slots, SFP, AC Adapter, Wall Mountable, Rail-mountable, Standalone, Desktop
  • Wall mount, DIN Rail, or table top installation
  • External AC/DC power supply included with country specific power cord
  • 2-port 10/100/1000 copper to fiber media conversion with IEEE 802.3at PoE+ on the copper port
  • Supports full 30 Watts of power to each twisted pair port
  • Various fiber versions available supporting fixed SC, fixed LC, and open SFP slots
  • 3-port version offers (1) RJ-45 PoE+ port and (2) open SFP slots, device can be configured as a 3-port switch or as a 2-port media converter with redundant fiber links
  • 4-port version offers (2) RJ-45 PoE+ ports and (2) open SFP slots, device can be configured as a 4-port switch (with or without redundant fiber) or as two independent PoE+ media converters
  • SFP slots can support 100Base-FX, 1000Base-X, or SGMII based (MSA compliant) SFP modules
  • Supports Auto-Negotiation, Auto MDI/MDI-X, Active Link Pass Through (ALPT), and Remote Fault Detection
  • Jumbo frame support
Read More

Need a different version? See all Transition Parts Products

$637.57
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Transition SGPAT1040-105-NA Data Networking
Transition SGPAT1040-105-NA Data Networking
Interfaces/Ports
Total Number of Ports:
1
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
1
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Optical Fiber
I/O Expansions
Number of Total Expansion Slots:
1
Expansion Slot Type:
SFP
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 1000Base-X
Power Description
Power Source:
AC Adapter
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Rail-mountable
  • Standalone
  • Desktop
Height:
1"
Width:
3.3"
Depth:
4.8"
Weight (Approximate):
2 lb
Miscellaneous
Package Contents:
  • SGPAT1040-105 Transceiver/Media Converter
  • Power Cord (North America)
Country of Origin:
Taiwan
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0648177041312
UPC: 648177041312
EAN: 0648177041312
UNSPSC: 43201553
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Transition SGPAT1040-105-NA Data Networking is also known as TNI-SGPAT1040105NA
