Transition S4TEF1040-125-NA Products

Part Number: S4TEF1040-125-NA
Model:
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Management Port
Yes
Number of Network (RJ-45) Ports
1
Number of RJ-48 Ports
4
Connectivity Technology
Wired

Product Description:

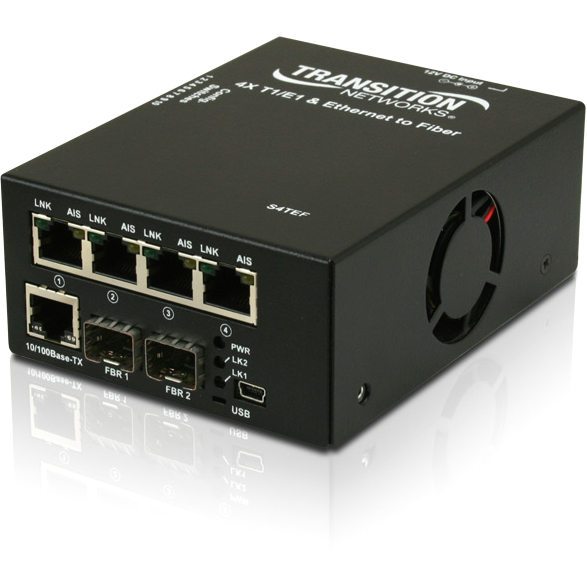

  Transition Networks 4x T1/E1/J1 + 10/100 Ethernet Transport Mux - Optical Fiber, Twisted Pair - Fast Ethernet, Ethernet - 100 Mbit/s - 1 x RJ-45
Explore all Transition Parts Products
Add to Quote
Transition S4TEF1040-125-NA Products
Transition S4TEF1040-125-NA Products
Interfaces/Ports
Management Port:
Yes
Number of Network (RJ-45) Ports:
1
Number of RJ-48 Ports:
4
Media & Performance
Connectivity Technology:
Wired
Media Type Supported:
  • Optical Fiber
  • Twisted Pair
Ethernet Technology:
  • Fast Ethernet
  • Ethernet
Network Technology Supported:
  • T1/E1/J1
  • 10/100Base-TX
Maximum Data Transfer Rate:
100 Mbit/s
I/O Expansions
Number of Total Expansion Slots:
1
Expansion Slot Type:
SFP
Number of SFP Slots:
1
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Form Factor:
  • Desktop
  • Wall Mountable
  • Rail-mountable
Height:
1.8"
Width:
3.7"
Depth:
4.7"
Miscellaneous
Certifications & Standards:
  • IEEE 802.3
  • IEEE 802.3u

TDM Interfaces:

  • ANSI T1.102
  • T1.403
  • T1.408
  • ITU I.431
  • G.703,G.736
  • G.775
  • G.823
  • ETSI 300-166
  • 300-233
  • TBR 12/13
  • AT&T Pub 62411

Regulatory Compliance:

  • EN55022 Class A
  • EN55024
  • CE Mark
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0648177035663
UPC: 648177035663
EAN: 0648177035663
UNSPSC: 43222827
