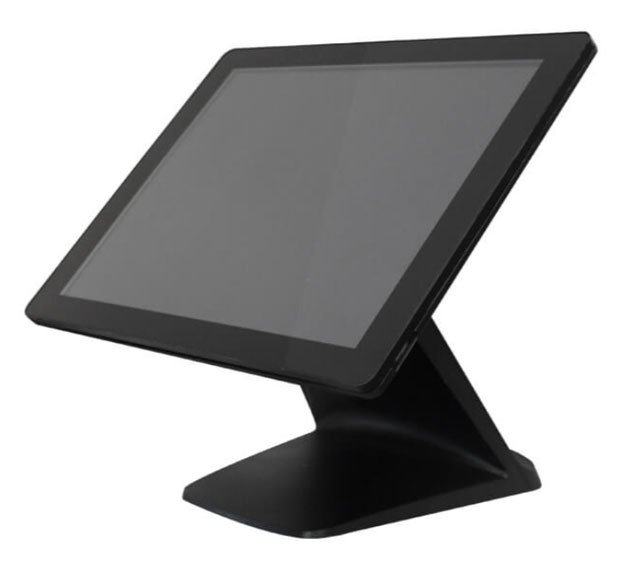

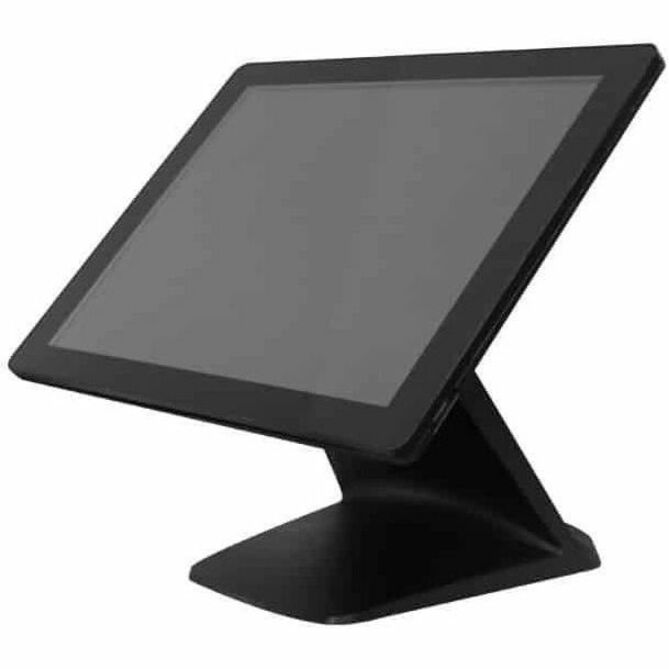

Touch Dynamic UB5E8A-7E100F POS System

Part Number: UB5E8A-7E100F
Model: Pulse Ultra AIO
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$1,448.00

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Cooling Fan
Fanless
Form Factor
All-in-One
Features
Adjustable Display Angle
Processor Type
Celeron

Product Description:

  POS Systems, Touch-Dynamic Pulse Ultra All-In-One, 15.6" Wide Screen LCD, Projected Capacitive Touch True Falt, Intel Celeron J6412 CPU 2.6Ghz, 8 GB LV RAM, 128 GB M.2 Nvme SSD, iD Tech MSR, Windows 10 IoT (64-Bit), Ultra Base II
Explore all Touch Dynamic Pulse Ultra AIO POS Systems
Add to Quote
Touch Dynamic UB5E8A-7E100F POS System
Touch Dynamic UB5E8A-7E100F POS System
Touch Dynamic UB5E8A-7E100F POS System Touch Dynamic UB5E8A-7E100F POS System
Full specifications (PDF)

Touch Dynamic Pulse Ultra AIO POS System Model Overview

Experience unparalleled performance and sleek design with the Touch Dynamic Pulse Ultra All-In-One. This versatile system seamlessly integrates advanced technology into a compact unit, perfect for retail or hospitality environments. Choose from powerful CPU options, including Intel® Celeron Quad Core and i3/i5 Skylake® processors, ensuring responsive operation. The stunning LED LCD touch screen is available in both 15” and 17” displays, providing exceptional clarity and ease of use. Enjoy fast access to applications, along with various expansion ports for added functionality.


Key Features:

  • 15” & 17” LED LCD Projected Capacitive Display
  • Optional Rear Customer Display
  • External I/O Ports: 15 total
  • Optional Integrated Fingerprint Reader
  • Optional MSR (Magnetic Stripe Reader)

Specifications:

  • Processing:
    • CPU: Intel® Celeron Quad Core J3455 up to 2.3GHz, i3-6100U & i5-6300U
    • System Memory: 1x DDR3-LV SODIMM 4GB (up to 8GB Optional)
    • Graphics Memory: Intel HD Graphics 500
  • Storage:
    • Solid State Drive: 128 GB SSD (Optional 256 GB SSD)
  • Power:
    • Power Supply: 65W +19V or 90W Power Adapter
    • Operating Temperature: 5°C to 35°C (41°F to 95°F)
  • Dimensions:
    • 15" with base: 13" H x 14 7/8" W x 9" D
    • Peripheral variations: Up to 16" width available
  • Connectivity:
    • USB: 2 (USB 2.0), 4 (USB 3.0)
    • Serial: 3 x RJ45
    • Gigabit LAN: 1
Full specifications (PDF)
Technical Information
Cooling Fan:
Fanless
Form Factor:
All-in-One
Features:
Adjustable Display Angle
Processor & Chipset
Processor Type:
Celeron
Processor Speed:
2.60 GHz
Processor Model:
J6412
Memory
Standard Memory:
8 GB
Memory Technology:
DDR3L SDRAM
Maximum Memory Supported:
8 GB
Storage
Solid State Drive Capacity:
128 GB
Solid State Drive Interface:
M.2
Display & Graphics
Screen Size:
15.6"
Display Screen Type:
LED
Screen Mode:
XGA
Touchscreen:
Yes
Touchscreen Technology:
Projected Capacitive
Multi-touch Screen:
Yes
Graphics Controller Model:
HD Graphics 500
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
USB:
Yes
Powered USB:
Yes
USB Type-C:
Yes
Network (RJ-45):
Yes
Cash Drawer Port:
Yes
Serial Port:
Yes
Number of USB 3.0 Ports:
4
Optional Ports:
  • Fingerprint Reader: Steel Coat Crossmatch (USB interface)
  • MSR USB: Encrypted Option Available
Built-in Devices
Magnetic Stripe Reader:
Yes
Software
Operating System:
Windows 10 IoT x64
Power Description
Power Source:
DC Power
Physical Characteristics
Color Family:
Black
Product Color:
Black
Height:
13"
Width:
14.9"
Depth:
9"
Miscellaneous
Durability:
Dust Resistant
Item Numbers
UNSPSC: 43211505
