Full specifications (PDF)
Cooling Fan:
Fanless
Touch Dynamic UB5E4A-067F4C All-in-One PC
Part Number:
UB5E4A-067F4C
Model:
Pulse Ultra All-In-One

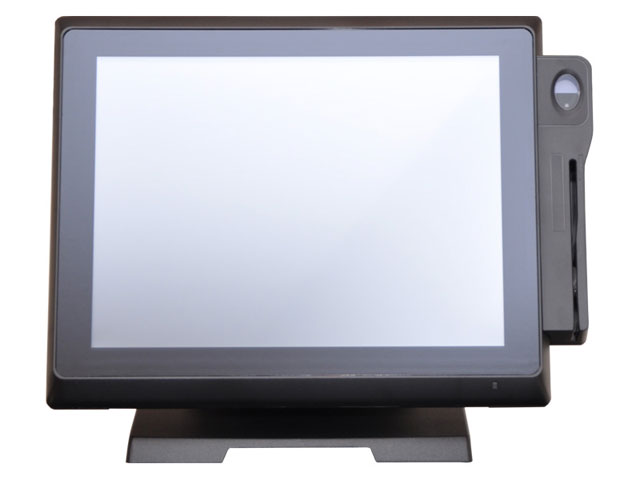

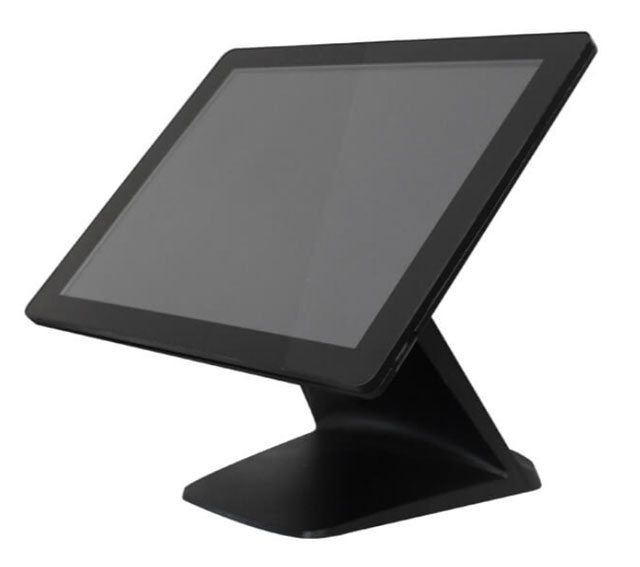

Touch Dynamic Pulse Ultra All-In-One Touchscreen Model Overview
The Pulse Ultra All-In-One system is designed to offer speed and reliability at an affordable price. It boasts a quick detachable base and easy overall service features. A 15" LCD with Projected Capacitive touchscreen and up to 8GB of RAM, this fanless system is ideal for harsh environments because it doesn’t pull dust and dirt into the computer and can accommodate any of your application needs.
Technical Information
Processor & Chipset
Processor Type:
Celeron
Processor Core:
Quad-core (4 Core)
Processor Speed:
2.30 GHz
Memory
Standard Memory:
4 GB
Memory Technology:
DDR4 SDRAM
Storage
Solid State Drive Capacity:
128 GB
Solid State Drive Interface:
M.2/SATA
Display & Graphics
Screen Size:
15.6"
Display Screen Type:
LED
Touchscreen:
Yes
Graphics Controller Model:
HD Graphics 500
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
USB:
Yes
Network (RJ-45):
Yes
Cash Drawer Port:
Yes
Serial Port:
Yes
Built-in Devices
Magnetic Stripe Reader:
Yes
Software
Operating System:
Windows 10 IoT Enterprise (64-bit)
Power Description
Power Source:
AC Power
Physical Characteristics
Height:
13"
Depth:
9"
Item Numbers
UNSPSC:
43211505
