Full specifications (PDF)
Cooling Fan:
Fanless
Form Factor:
All-in-One

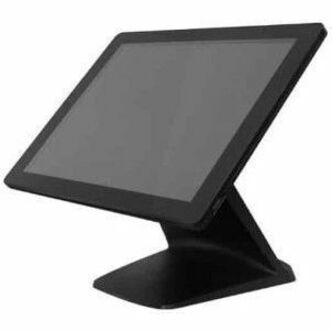

Touch Dynamic P5100MN1N-00NNNNN Touchscreen
Part Number:
P5100MN1N-00NNNNN
Model:
Pulse Ultra All-In-One

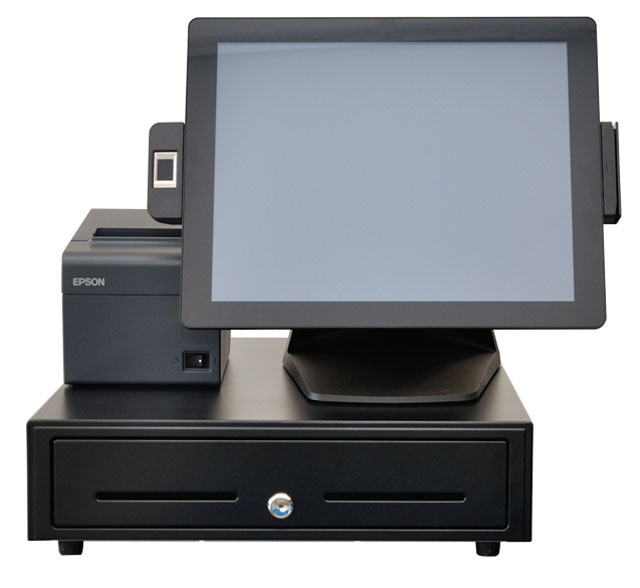

Touch Dynamic Pulse Ultra All-In-One Touchscreen Model Overview
The Pulse Ultra All-In-One system is designed to offer speed and reliability at an affordable price. It boasts a quick detachable base and easy overall service features. A 15" LCD with Projected Capacitive touchscreen and up to 8GB of RAM, this fanless system is ideal for harsh environments because it doesn’t pull dust and dirt into the computer and can accommodate any of your application needs.
Touch Dynamic P5100MN1N-00NNNNN Touchscreen Overview
Pulse Ultra | A Powerful All-In-One Solution
Boost your business operations with the fully customizable Pulse Ultra All-in-One! Powered by Intel® Celeron® J6412 and Intel® Core processors, the Pulse Ultra delivers exceptional speed and performance. Its True Flat PCAP multi-touch HD display keeps employees efficient and customers engaged with sharp, vibrant visuals. Tailor your setup with memory options ranging from 8GB to 32GB and an array of peripherals, including a customer-facing display, magnetic stripe reader, mounted barcode scanner, and fingerprint reader.
Slim and Sleek Design
- Multiple CPU options
- Up to 32GB of high-speed DDR4 memory
- Available in 15" or 17" Display
Custom Configuration
- Optional 11.6" or 15.6" rear display
- Wall Mount and Printer Base options available
Technical Information
Processor & Chipset
Processor Type:
Celeron
Processor Model:
J6412
Memory
Standard Memory:
4 GB
Memory Technology:
DDR4 SDRAM
Maximum Memory Supported:
32 GB
Storage
Solid State Drive Capacity:
128 GB
Solid State Drive Interface:
M.2
Display & Graphics
Screen Size:
15"
Display Screen Type:
LCD
Screen Mode:
XGA
Touchscreen:
Yes
Touchscreen Technology:
Projected Capacitive
Multi-touch Screen:
Yes
Aspect Ratio:
4:3
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
USB:
Yes
USB Type-C:
Yes
Network (RJ-45):
Yes
Cash Drawer Port:
Yes
Serial Port:
Yes
Number of USB 3.0 Ports:
2
Number of USB Type C Ports:
2
Optional Ports:
- 3-Track MSR (USB)
- HID global fingerprint reader (USB)
- LCM 2×20 customer display (USB)
Software
Operating System:
Windows 10 IoT Enterprise LTSC
Physical Characteristics
Mount Type:
Wall Mountable
Height:
13.1"
Width:
14.2"
Depth:
8.3"
Miscellaneous
Durability:
Dust Resistant
Item Numbers
UNSPSC:
43211505
