Full specifications (PDF)
Form Factor:
All-in-One
Touch Dynamic FH-2DSCAN Tablet
Part Number:
FH-2DSCAN
Model:
Fusion Hybrid

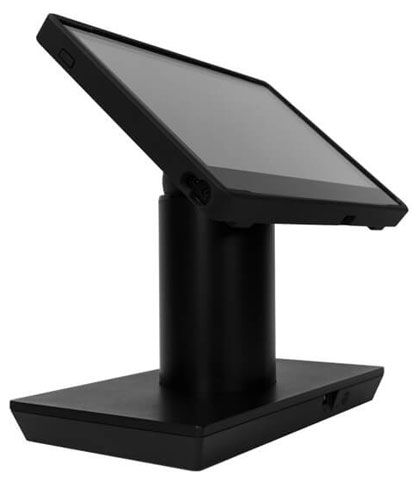

Touch Dynamic Fusion Hybrid Tablet Model Overview
Fusion Hybrid Tablet by Touch Dynamic combines powerful performance with versatile functionality. Featuring a stunning 11.6" projected capacitive LED LCD display, this innovative tablet seamlessly transitions from a fully equipped all-in-one device to a tablet with just a push of a button. Its robust specifications, including options for Windows, Linux, and Android operating systems, make it a perfect solution for diverse business environments. With optional peripherals like an MSR, fingerprint reader, and RFID, it caters to advanced security and identification needs, while the electronic lock ensures your device stays secure at all times.
Key Features
Specifications
Key Features
- 11.6" LED LCD with Projected Capacitive Touch
- Push of a button to release tablet from base
- Electronic lock holds the tablet in place
- ID Tech MSR
- 2D Barcode scanner
- Next generation technology
Specifications
- MOTHERBOARD
- Intel™ Elkhart Lake Celeron TM J6412 up to 2.6 GHz
- System Memory: 8 GB RAM
- Graphics: Intel HD Graphics
- DISPLAY
- LCD: 11.6"
- Maximum Resolution: 1920x1080
- Brightness: 300 nits
- Backlight Technology: LED
- Aspect Ratio: 16:9
- Touch: True Flat Projected Capacitive Multi-Touch
- STORAGE
- Solid State Drive: 128 GB eMMC
- I/O PORTS IN BASE
- 1x USB 3.0 (Type-C data transfer only, no charge)
- Powered USB: 1x12V, 1x24V
- Serial: 2x DB9
- LAN: 1xRJ45 (10x100Mbs)
- Cash Drawer: 1xRJ11
- DC Jack: 1x 4-pin Locking
- POWER
- Power Adapter: 120W/19V
- Battery: 3.8 V 7000mAh
- COMMUNICATION
- Intel Wireless: 802.11 a/b/g/ac/ax 5.2
- AUDIO
- Microphone: Integrated
- Speakers: 1x1W
- OPTIONAL PERIPHERALS
- MSR: ID Tech 3-Track MSR
- Fingerprint Reader: HID Global Capacitive Reader
- RFID: HID Global RFID Reader
- Rear Camera: 2 Megapixel
- Barcode Reader: Integrated 2D Barcode Reader, Honeywell 3601
- CERTIFICATE: EMC & Safety: FCC Class B, CE Mark Class B, LVD, RF
- ENVIRONMENT
- Operating & Storage Temperature: 0°C ~ 104°F
- Operating & Storage Humidity: 20% ~ 80% RH non-condensing
- OS SUPPORT: Windows 10 IOT, Windows 11, Android 13, *Linux (*Inquire about availability)
Technical Information
Processor & Chipset
Processor Type:
Celeron
Maximum Turbo Speed:
2.60 GHz
Processor Model:
J6412
Memory
Standard Memory:
8 GB
Storage
Solid State Drive Capacity:
128 GB
Display & Graphics
Screen Size:
11.6"
Display Screen Type:
LED
Screen Mode:
Full HD
Touchscreen:
Yes
Touchscreen Technology:
Projected Capacitive
Multi-touch Screen:
Yes
Aspect Ratio:
16:9
Graphics Controller Model:
HD Graphics
Network & Communication
Wireless LAN:
Yes
Ethernet Technology:
Fast Ethernet
Interfaces/Ports
USB:
Yes
Powered USB:
Yes
USB Type-C:
Yes
Network (RJ-45):
Yes
Cash Drawer Port:
Yes
Serial Port:
Yes
Number of USB 3.0 Ports:
1
Built-in Devices
Number of Speakers:
1
Speaker Power:
1 W
Item Numbers
UNSPSC:
43211505
Questions? Get Help from
a Mobile Expert!
a Mobile Expert!
The Touch Dynamic FH-2DSCAN Tablet is also known as
FH-2DSCAN
