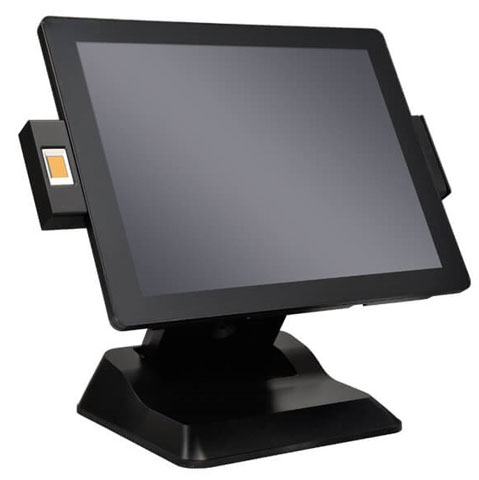

Touch Dynamic BU556GM0NN0-00NNNNN POS Touch Terminal

Part Number: BU556GM0NN0-00NNNNN
Model: Breeze Ultra
Add to My Shopping List Add to Compare
$2,489.00
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Form Factor
All-in-One
Features
Adjustable Display Angle
Processor Type
Core i5
Processor Core
Quad-core (4 Core)

Product Description:

  POS Terminals, Touch Dynamic Breeze Ultra, 15" LED LCD, PCAP Touch, Kaby Lake Motherboard, Intel i5-7500T 2.70Ghz, 8GB Lv RAM, Wd 128GB SSD, Windows 10 IoT Enterprise (64 Bit), No Base
Explore all Touch Dynamic Breeze Ultra Touchscreens
Add to Quote
Touch Dynamic BU556GM0NN0-00NNNNN POS Touch Terminal
Touch Dynamic BU556GM0NN0-00NNNNN POS Touch Terminal
Touch Dynamic BU556GM0NN0-00NNNNN POS Touch Terminal Touch Dynamic BU556GM0NN0-00NNNNN POS Touch Terminal
Full specifications (PDF)

Touch Dynamic Breeze Ultra Touchscreen Model Overview

The Breeze Ultra All-In-One from Touch Dynamic is a cutting-edge solution for businesses that demand both performance and versatility. Featuring a 15" projected capacitive touch screen, this system is designed for seamless user interaction. With multiple CPU options, including Intel i7, and expandable RAM of up to 16GB, it caters to various processing needs. The sleek, bezel-less design not only enhances its aesthetic appeal but also provides reliable functionality for any commercial environment. The expansive peripheral compatibility ensures that you can tailor the system to your specific business requirements.
Key features:
  • 15" Projected Capacitive Touch Screen
  • Rackable motherboard for easy installation
  • Optional MSR for additional functionality
  • Optional Steelcoat Fingerprint Reader for enhanced security

Specifications:
  • Processing:
    • Intel Celeron G3930TE Dual-core 2.7GHz
    • Intel Core i3-7101TE Dual-core 3.4GHz
    • Intel Core i5-7500T Quad-core 2.7GHz, up to 3.3GHz
    • Intel Core i7-7700T Quad-core 2.9GHz, up to 3.8GHz
    • Memory: 2X DDR4-LV up to 16GB
    • Graphics: Intel HD Graphics
  • LCD Panel:
    • LCD Size: 15"
    • LCD Type: LED LCD
    • Brightness: 350 nits
    • Maximum Resolution: 1024 x 768
    • Touch Screen Type: Projected Capacitive
    • Tilt Angle: 0° ~ 140°
    • Screen: Bezel-less True Flat
  • Storage:
    • 2x2.5" SATA with Raid 0, 1 and Hot swap
  • Power Supply:
    • 120W +19V or 180W with powered USB Port
  • Dimensions:
    • 15" with base; 14.8" H x 8.3" W x 9" D (with MSR)
    • Peripheral Variation (width only): 15 5/8" (with fingerprint), 16" (with MSR and fingerprint)
  • Expansion:
    • M.2 Slot: 1 Optional
  • I/O Ports (Standard):
    • USB: 2 (USB 2.0), 4 (USB 3.0)
    • Serial: 3xRJ45 with DB9 Adapters
    • LAN: Gigabit LAN (10/100/1000)
    • VGA: D-SUB 15 with power options via BIOS
    • Display Port: 1
    • Audio Out: 1
  • I/O Ports (Optional):
    • 2xUSB 2.0, RJ45 Gigabit LAN
    • 1x Power USB +24V, 1x Power USB +12V, 1x CD
    • 1x +28V Printer power port, 1x CD
  • OS Support:
    • Windows 10 IOT & Pro (64 bit)
Full specifications (PDF)
Technical Information
Form Factor:
All-in-One
Features:
Adjustable Display Angle
Processor & Chipset
Processor Type:
Core i5
Processor Core:
Quad-core (4 Core)
Processor Speed:
3.30 GHz
Processor Model:
i5-7500T
Memory
Standard Memory:
8 GB
Memory Technology:
DDR3L SDRAM
Storage
Solid State Drive Capacity:
128 GB
Display & Graphics
Screen Size:
15"
Display Screen Type:
LED
Screen Mode:
XGA
Touchscreen:
Yes
Touchscreen Technology:
Projected Capacitive
Aspect Ratio:
4:3
Graphics Controller Model:
HD Graphics
Network & Communication
Ethernet Technology:
Gigabit Ethernet
Interfaces/Ports
USB:
Yes
Powered USB:
Yes
Network (RJ-45):
Yes
Cash Drawer Port:
Yes
Number of USB 3.0 Ports:
4
Optional Ports:
  • 2 x USB 2.0, RJ45 Gigabit LAN
  • 1 x Power USB +24V, 1x Power USB +12V, 1x Cash Drawer
  • 1 x +24V Printer power port, 1x Cash Drawer
Software
Operating System:
Windows 10 IoT Enterprise (64-bit)
Item Numbers
UNSPSC: 43211505
The Touch Dynamic BU556GM0NN0-00NNNNN POS Touch Terminal is also known as BU556GM0NN000NNNNN
