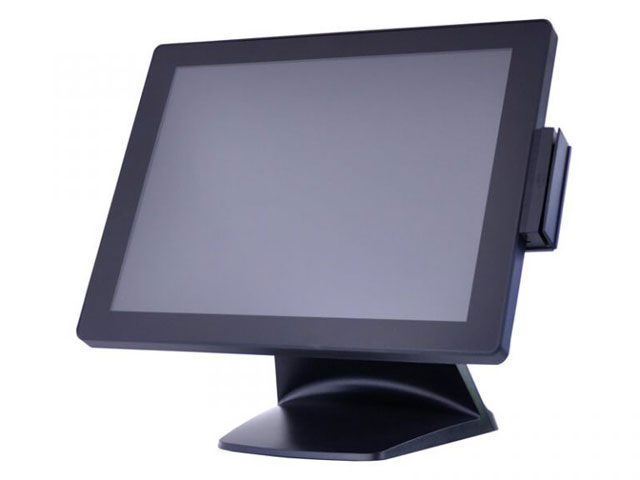

Touch Dynamic ATJ8MWNN1 POS Touch Terminal

The Touch Dynamic Atlas All-In-One terminal blends elegance and functionality, making it an ideal solution for various commercial environments. Equipped with a powerful Intel® Celeron® Quad Core J1900 processor and a 15" projected capacitive touch screen, this device ensures seamless operation while maximizing efficiency. Its IP64-rated water and dust proof front panel guarantees durability, while the expandable storage options and multiple peripheral support make it versatile for any business need.

Key Features

• 15" LED LCD Projected Capacitive Display
• Sleek Design
• Multiple Base Options
• Multiple Ports including USB, VGA, and Powered COM

Specifications

• Processing:
• CPU: Intel® Celeron® Quad Core J1900 2.42Ghz
• System Memory: 1x DDR3L SODIMM up to 8GB
• LCD Panel:
• LCD Size: 15"
• Maximum Resolution: 1024 x 768
• Brightness: 300 nits
• LCD Backlight Type: LED
• LCD Aspect Ratio: 4:3
• Storage:
• Solid State Drive: Standard 128 GB SSD
• Power:
• Power Supply: 60W +19V lockable 3 Pin power adapter
• Operating Temperature: 32°F to 95°F (0° to 40°C)
• Dimensions:
• 15" with base; 13.3" H x 14.3" W x 9" D (with MSR)
• I/O Ports:
• USB: 3x 2.0, 1x 3.0, 1x 2.0 on side of unit
• COM: 2x RS-232 (power option by jumper)
• Gigabit LAN (10/100/1000): x1
• Cash Drawer Port: x1 RJ11 (+ 24V)
• Power Button: x1
• VGA: 1x D-SUB15
• Audio: 3.5mm Jack audio out (Does not include speakers)
• Optional Peripherals:
• MSR USB: Encrypted Option Available
• Customer Display: 2 x 20 VFD, 8" & 15"
• Scanner: 2D Barcode Scanner
• Fingerprint Reader
• Pin Pad Mount
• VESA/Wallmountable
• Printer Base: Compatible with Universal Printer Base (T25 and Epson T7011 printers) and the Slim Printer Base (Epson TM-M30 printer)
• OS Support:
• POSREADY 7 (64 bit), Windows 10 IOT & Pro (64 bit), Linux
