Full specifications (PDF)
Image Sensor Type:
CCD
White Balance Modes:
Auto
Maximum Illumination:
16 lux
Color Supported:
Color

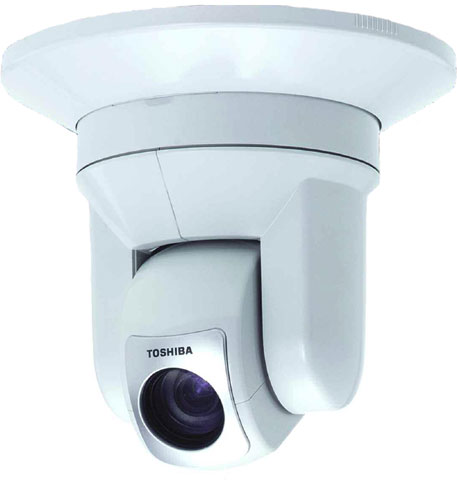

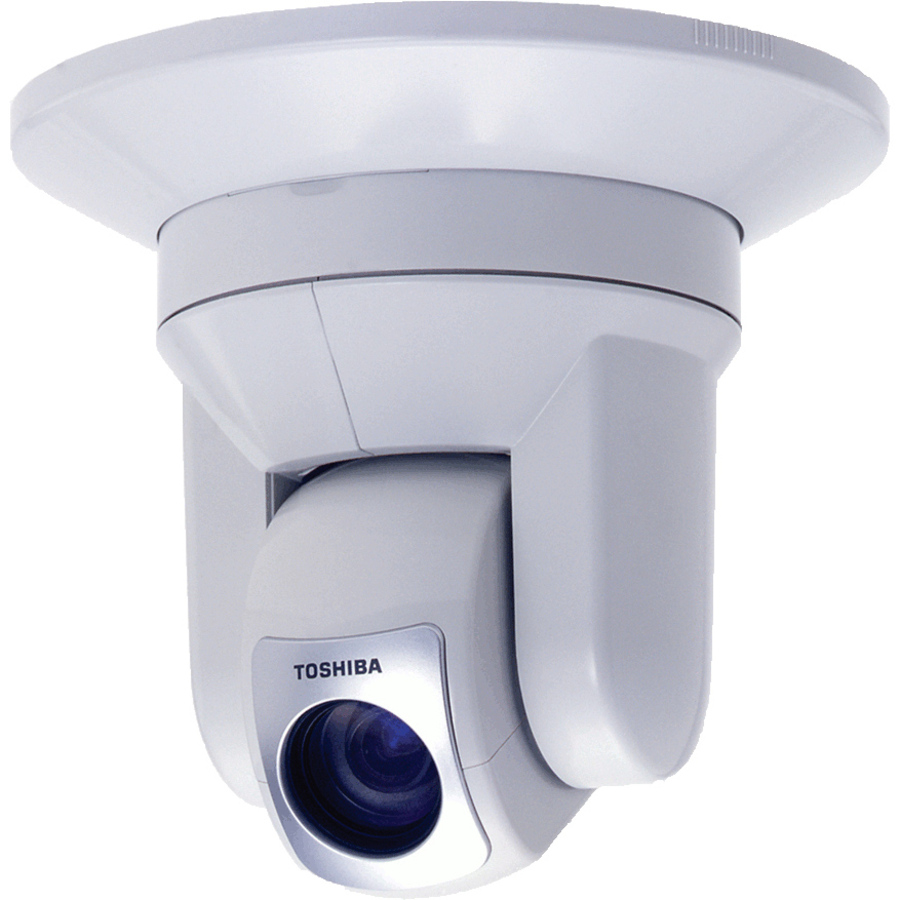

Toshiba IK-WB21A Security Camera Model Overview
The Toshiba IK-WB21A features high resolution video from a versatile IP Network PTZ Dome Camera with 22x zoom you can view anywhere, anytime using only a standard browser!
Toshiba IK-WB21A Security Camera Overview
- 1.4" CCD Image Sensor
- 22x Optical Zoom
- Pan Angle: -175 to +175 degrees
- Tilt Angle: -30 to 90 degrees (Desktop), -90 to 30 degrees (Ceiling)
- External SD (Secure Digital) Card Slot
- 0.13 [email protected] Illumination
Display & Graphics
Video
Video Formats:
MJPEG
Maximum Video Resolution:
640 x 480
Lens
Lens Type:
Zoom
Minimum Focal Length:
4 mm
Maximum Focal Length:
88 mm
Optical Zoom:
22x
Focus Modes:
- Automatic
- Manual
- Preset
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
- TCP/IP
- UDP
- FTP
- DHCP
- HTTP
- DNS
- DDNS
- ARP
- ICMP
- SMTP
- NTP
- RNCP
Power Description
Maximum Power Consumption:
10 W
Input Voltage:
- 12 V DC
- 240 V AC
Physical Characteristics
Height:
5.4"
Width:
4.5"
Depth:
4.5"
Weight (Approximate):
1.59 lb
Miscellaneous
Additional Information:
- Automatic Pan/Tilt Rotation
- Automatic Gain control (AGC)
- Effective Picture Element: 629,865 Pixels
- Pan speed 300 degrees/sec
- Tilt speed 200 degrees/sec
- DNR off/Low/High (3D digital system)
- Sharpness: Sharp/Standard/Soft
- Color Gain: R-Y/B-Y Gain Control
- Slow Shutter off,1/7.5s(x4), 1/3.75s(x8), 1/2.5s(x12), 1/1.8s(x16), 1s(x30) 2s(x60),4s(x120) off=1/30s
Certifications & Standards:
- FCC Class B
- UL Listed
Platform Supported:
PC
Item Numbers
GTIN:
0032017392038
UPC:
032017392038
EAN:
0032017392038
UNSPSC:
46171610
