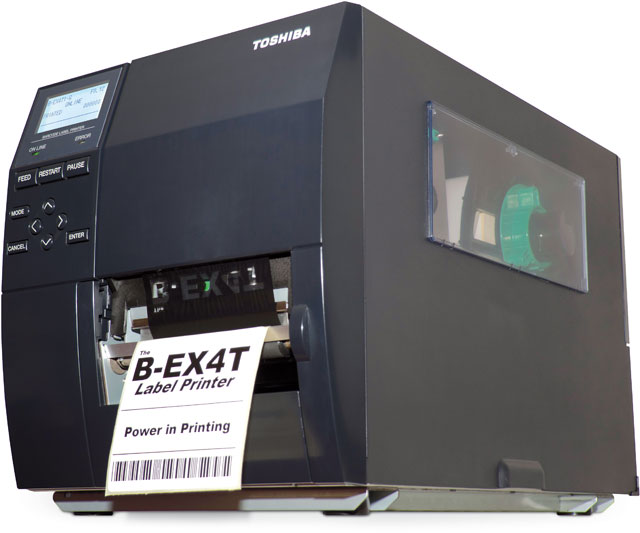

Toshiba B-EX4T2/D2 – Barcode Label Printer – 600 dpi – Thermal Transfer
Toshiba B-EX4T2/D2 Barcode Label Printer Model Overview
Key Features
- Seamless integration with legacy systems via Z-Mode emulation
- High-speed printing at 12 ips for demanding applications
- Cost-effective with long 600m ribbons to reduce operational costs
- Easy maintenance with snap-in printheads and field upgradeable options
- Environmentally friendly with Energy Star compliance and carbon-neutral printing
- Specialist high-resolution options available in 203/300 or 600 dpi
Specifications
- Print Method: Direct thermal / thermal transfer
- Print Width: 104 mm
- Max. Print Speed: 12 ips (304 mm/sec)
- Resolution: 203 dpi / 300 dpi / 600 dpi
- Dimensions: 310(H) x 278(W) x 460(D) mm
- Interface: USB 2.0, Ethernet (optional: Parallel, Serial, WLAN)
- Media Width: 114 mm, left alignment
- Max Paper Roll Diameter: 200 mm
- Standard Ribbon Lengths: 450m, 600m
- Optional: Cutter, peel-off, and internal rewinder
Frequently Asked Questions
What processor options are available in the Elo E429049 POS Touch Terminal?
The Elo I-Series 3 is powered by Intel 12th Gen processors with options ranging from Celeron to Core i7, allowing you to select the performance level that matches your point-of-sale or kiosk requirements. This flexibility ensures you can optimize cost and capability for your specific deployment needs.
What does the Cisco CON-OSP-WSC296XT service contract cover?
The Cisco CON-OSP-WSC296XT is a 1-year US On-site service contract providing 24X7X4 support for the Catalyst 2960-X 24 GigE switch with 4x1G SFP ports. This contract ensures that Cisco technical support is available around the clock with on-site response to keep your network infrastructure operational. We offer this service contract to provide comprehensive coverage for your critical networking equipment.
What are the print speed and resolution specifications for the Toshiba BEX4T2HS12M02?
The Toshiba BEX4T2HS12M02 delivers print speeds up to 6 inches per second (152 mm/sec) with a maximum resolution of 600 DPI, making it ideal for high-quality barcode and label applications requiring fine detail. This combination of speed and resolution provides excellent output quality for industrial printing environments. We offer this model as part of our comprehensive barcode printer lineup available from barcodesinc.com.
Is this service contract compatible with the Catalyst 2960-X switches?
Yes, the CON-OSP-WSC296XT service contract is specifically designed for the Cisco Catalyst 2960-X 24 GigE switch with 4x1G SFP ports. The Catalyst 2960-X Series provides fixed-configuration switching with Gigabit Ethernet connectivity ideal for midmarket and branch office networks. Contact us today to verify compatibility with your specific switch configuration and ensure proper coverage.
What connectivity options does the Toshiba BEX4T2HS12M02 support?
The Toshiba BEX4T2HS12M02 features standard USB 2.0 and Ethernet connectivity, with optional interfaces available for Parallel, Serial, Wireless LAN, Real-Time Clock (RTC), and USB host capabilities. This multi-interface design ensures compatibility with diverse warehouse management systems and legacy equipment. Contact us today to discuss which connectivity options best fit your facility's infrastructure.
What display sizes does the Elo E429049 come in?
The Elo I-Series 3 All-In-One Interactive Display is available in 15", 17", 22", and 24" models, with both square and wide aspect ratio options. This range of sizes makes it suitable for various retail, hospitality, and self-service applications.
What are the key features of the Catalyst 2960-X switch covered under this contract?
The Catalyst 2960-X switch offers 24 Gigabit Ethernet ports plus 4x1G SFP uplink ports, delivering Layer 2 switching with intelligent services for network edge deployments. It includes advanced security features such as port security, RADIUS/TACACS+ authentication, ACL support for up to 1,024 rules, and comprehensive QoS capabilities with 8 hardware queues. The switch also supports standards-based fault tolerance through 802.1S/W and rapid convergence protocols, ensuring high availability for your business-critical network.
Is the Toshiba BEX4T2HS12M02 suitable for both direct thermal and thermal transfer printing?
Yes, the Toshiba BEX4T2HS12M02 supports both direct thermal and thermal transfer printing methods, providing flexibility for different labeling applications and media types. This dual capability allows you to optimize your printing approach based on label durability and longevity requirements. Visit barcodesinc.com to explore compatible media and ribbon options we offer for this printer.
Is the Elo E429049 suitable for dusty or wet environments?
Yes, the Elo I-Series 3 features an IP54 rating for dust and splash resistance, making it suitable for challenging retail and hospitality environments. The fanless technology also contributes to its durability by eliminating moving parts that could be compromised by dust or moisture.
What connectivity options does the Elo E429049 POS Terminal support?
The terminal includes 1x Gigabit RJ45 LAN port, Wi-Fi 802.11 a/b/g/n/ac/ax, and Bluetooth 5.2 for flexible network and peripheral connectivity. It also features 4x USB 3.0 ports, 4x Micro USB 2.0 ports, and 1x USB-C port for connecting barcode scanners, payment devices, and other peripherals through Elo Edge Connect™ compatibility.
What maintenance features does the Toshiba BEX4T2HS12M02 offer?
The Toshiba BEX4T2HS12M02 features a user-replaceable snap-in printhead and platen roller design, which significantly reduces maintenance downtime and costs. The wide opening printhead block allows easy access for consumables loading and maintenance operations. These design elements minimize training requirements and keep your operation running smoothly with minimal service interruptions.
What support response time can I expect with the 24X7X4 service level?
The 24X7X4 designation indicates that Cisco provides on-site support 24 hours a day, 7 days a week with a 4-hour response time commitment. This ensures that if your Catalyst 2960-X switch experiences issues, a Cisco technician will be dispatched to your location within 4 hours to diagnose and resolve the problem. Available from us, this service level is critical for organizations that cannot tolerate extended network downtime.
What touchscreen technology does the Elo E429049 use?
The Elo I-Series 3 features a responsive 10-touch PCAP (Projected Capacitive) edge-to-edge touchscreen that delivers seamless multi-touch interaction for customers and staff. This technology is ideal for interactive signage, self-service kiosks, and point-of-sale applications.
Does the Catalyst 2960-X support advanced security and QoS features?
Yes, the Catalyst 2960-X includes comprehensive security capabilities such as port-based MAC address locking, RADIUS and TACACS+ authentication, DoS prevention, and support for up to 1,024 Access Control Lists (ACLs). For quality of service, it features 8 hardware queues with strict priority and Weighted Round-Robin scheduling, enabling granular bandwidth management and traffic prioritization. These features allow you to maintain secure, high-performance networks across your organization.
What industries is the Toshiba BEX4T2HS12M02 designed for?
The Toshiba BEX4T2HS12M02 is engineered for demanding industrial environments including manufacturing, automotive, pharmaceutical, food sector, retail distribution, transport and logistics, healthcare, and government applications. Its robust design and reliable performance make it well-suited for high-volume labeling operations across these diverse sectors. Contact us today to discuss how this printer can meet your specific industry requirements.
What operating system and memory options are available for the Elo E429049?
The terminal is available with no OS, Windows 10 IoT, or Windows 11 Professional, with 8GB to 16GB DDR5 memory that is expandable to 32GB. Storage options include 128GB or 256GB M.2 PCIe NVMe SSD, providing flexibility to match your software requirements and performance needs.
What management and monitoring capabilities does the Catalyst 2960-X provide?
The Catalyst 2960-X supports comprehensive network management through SNMP v3, RMON-MIB for statistics and alarms, and an embedded GUI for device-level configuration. It is compatible with Cisco Network Assistant, a free network management tool that simplifies switch configuration and upgrades across your infrastructure. These management capabilities enable IT teams to efficiently monitor and administer your switching environment, and we can help you integrate these tools into your operations.
What are the environmental credentials and compliance standards for the Toshiba BEX4T2HS12M02?
The Toshiba BEX4T2HS12M02 is RoHS compliant and manufactured with green credentials as part of Toshiba's commitment to reducing environmental impact. The printer is designed with low power consumption to minimize operational costs and environmental footprint. We're committed to offering sustainable printing solutions—visit barcodesinc.com to learn more about our environmentally responsible product offerings.
