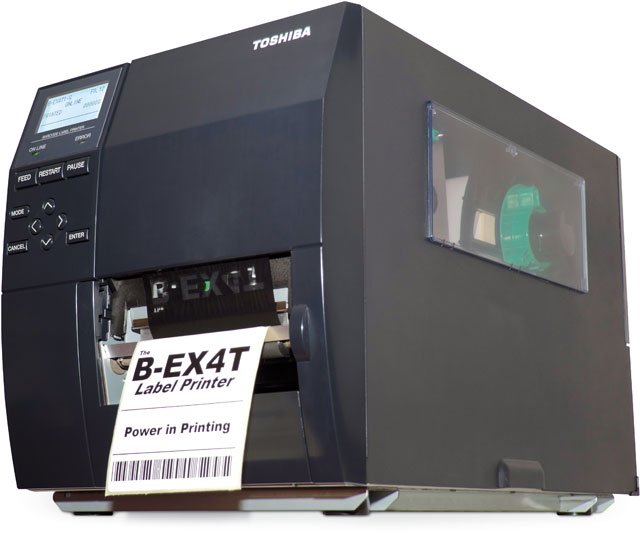

Toshiba B-EX4T2/D2 – Barcode Label Printer – 600 dpi – Thermal Transfer
Full specifications (PDF)
Toshiba B-EX4T2/D2 Barcode Label Printer Model Overview
Key Features
- Seamless integration with legacy systems via Z-Mode emulation
- High-speed printing at 12 ips for demanding applications
- Cost-effective with long 600m ribbons to reduce operational costs
- Easy maintenance with snap-in printheads and field upgradeable options
- Environmentally friendly with Energy Star compliance and carbon-neutral printing
- Specialist high-resolution options available in 203/300 or 600 dpi
Specifications
- Print Method: Direct thermal / thermal transfer
- Print Width: 104 mm
- Max. Print Speed: 12 ips (304 mm/sec)
- Resolution: 203 dpi / 300 dpi / 600 dpi
- Dimensions: 310(H) x 278(W) x 460(D) mm
- Interface: USB 2.0, Ethernet (optional: Parallel, Serial, WLAN)
- Media Width: 114 mm, left alignment
- Max Paper Roll Diameter: 200 mm
- Standard Ribbon Lengths: 450m, 600m
- Optional: Cutter, peel-off, and internal rewinder
Frequently Asked Questions
What does the Cisco CON-OSP-WSC248SL service contract cover?
The Cisco CON-OSP-WSC248SL is a 1-year on-site service contract providing 24x7x4 support for the Catalyst 2960-X 48 GigE PoE 370W switch with 4x1G uplinks. This means Cisco will dispatch a technician to your site within 4 business hours for any hardware issues. We offer this contract to ensure your network infrastructure maintains maximum uptime and receives rapid technical support when needed.
What printing methods does the Toshiba BEX4T2HS12M01 support?
The Toshiba B-EX4T2 supports both direct thermal and thermal transfer printing methods, giving you flexibility to choose the best option for your labeling needs. This dual capability allows you to print without ribbons using direct thermal, or extend label life with thermal transfer when required.
Is this service contract compatible with my Catalyst 2960-X switch?
Yes, the CON-OSP-WSC248SL is specifically designed for the Catalyst 2960-X 48 GigE PoE 370W switch with 4x1G uplinks. This contract covers the exact hardware configuration you're running, ensuring comprehensive on-site support for your network equipment. Contact us today to verify your specific switch model and ensure proper coverage.
What is the maximum print speed and resolution of this Toshiba printer?
The Toshiba BEX4T2HS12M01 delivers a maximum print speed of 6 inches per second (152 mm/sec) with 600 dpi resolution, providing high-quality barcode and label output for demanding industrial applications. This combination ensures both speed and clarity for your warehouse and logistics operations.
What is the difference between 24x7x4 support and standard service contracts?
The 24x7x4 designation means Cisco provides support 24 hours a day, 7 days a week with a 4-hour on-site response time guarantee. This is ideal for mission-critical network infrastructure where downtime directly impacts your operations. We recommend this level of service for warehouse, logistics, and enterprise environments where network reliability is essential.
What connectivity options are available on the Toshiba B-EX4T2?
The printer features standard USB 2.0 and Ethernet connectivity, with optional interfaces available for parallel, serial, wireless LAN, real-time clock (RTC), and USB host connections. Network management is supported through SNMP tools, making it easy to integrate into your existing IT infrastructure.
How long is the coverage period for this Cisco service contract?
The Cisco CON-OSP-WSC248SL provides 1 year of continuous on-site support coverage for your Catalyst 2960-X switch. After the initial year expires, you can renew your service contract with us to maintain uninterrupted technical support and hardware replacement services.
Is the Toshiba BEX4T2HS12M01 easy to maintain?
Yes—the B-EX4T2 features a user-replaceable snap-in printhead and platen roller that significantly reduce maintenance downtime and costs. The wide-opening printhead block and easy access for consumables loading make routine maintenance straightforward for your warehouse team.
What should I do if my switch fails during the contract period?
If your Catalyst 2960-X experiences a hardware failure while covered under the CON-OSP-WSC248SL contract, Cisco will dispatch an on-site technician within 4 business hours to diagnose and repair the issue. Your contract includes parts replacement and labor, minimizing network downtime. Contact us today if you need to file a service claim or have questions about the claims process.
What barcode formats does this Toshiba printer support?
The Toshiba B-EX4T2 includes support for GS1 DataBar (RSS) compatible barcodes, along with bitmap and outline fonts for flexible labeling requirements. This ensures compatibility with modern supply chain and retail distribution standards.
Can I purchase additional service contracts for other Cisco switches?
Yes, we offer a full range of Cisco service contracts for different switch models and configurations, including the Catalyst 2960-X series and other enterprise networking equipment. Our team can help you build a comprehensive support strategy across your entire network infrastructure. Visit barcodesinc.com to browse available contracts or contact us today for a customized quote.
What print width and media specifications does the Toshiba BEX4T2HS12M01 offer?
The printer accommodates a 4-inch (104 mm) print width with paper roll diameters up to 200 mm, and supports standard ribbon lengths of 450m or 600m. This configuration is ideal for industrial labeling in manufacturing, logistics, healthcare, and retail distribution environments.
