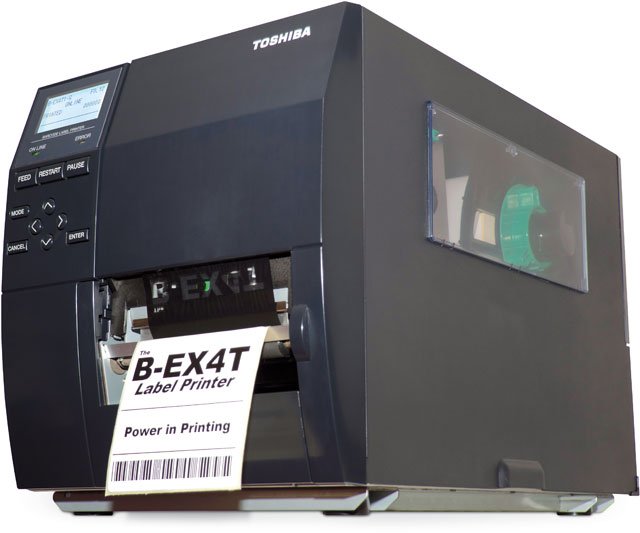

Toshiba B-EX4T2/D2 – Barcode Label Printer – 200 dpi – Thermal Transfer
Full specifications (PDF)
Toshiba B-EX4T2/D2 Barcode Label Printer Model Overview
Key Features
- Seamless integration with legacy systems via Z-Mode emulation
- High-speed printing at 12 ips for demanding applications
- Cost-effective with long 600m ribbons to reduce operational costs
- Easy maintenance with snap-in printheads and field upgradeable options
- Environmentally friendly with Energy Star compliance and carbon-neutral printing
- Specialist high-resolution options available in 203/300 or 600 dpi
Specifications
- Print Method: Direct thermal / thermal transfer
- Print Width: 104 mm
- Max. Print Speed: 12 ips (304 mm/sec)
- Resolution: 203 dpi / 300 dpi / 600 dpi
- Dimensions: 310(H) x 278(W) x 460(D) mm
- Interface: USB 2.0, Ethernet (optional: Parallel, Serial, WLAN)
- Media Width: 114 mm, left alignment
- Max Paper Roll Diameter: 200 mm
- Standard Ribbon Lengths: 450m, 600m
- Optional: Cutter, peel-off, and internal rewinder
Frequently Asked Questions
What print width and resolution does the Toshiba BEX4T2GS12M01 offer?
The Toshiba B-EX4T2 delivers a 4-inch (104 mm) print width at 203 dpi resolution, making it suitable for standard barcode label applications across warehouses and logistics operations. This resolution provides crisp, scannable barcodes while maintaining economical operating costs.
How fast can the Toshiba BEX4T2GS12M01 print labels?
The Toshiba B-EX4T2 prints at a maximum speed of 12 inches per second (304 mm/sec), enabling efficient high-volume label production for busy warehouse and distribution environments. This speed helps reduce production bottlenecks while maintaining print quality.
What connectivity options are available on the Toshiba BEX4T2GS12M01?
The Toshiba B-EX4T2 features USB 2.0 and Ethernet interfaces as standard, with optional connectivity including parallel, serial, wireless LAN, RTC, and USB host capabilities. This flexibility allows seamless integration into existing warehouse management and inventory systems.
Is the Toshiba BEX4T2GS12M01 suitable for direct thermal and thermal transfer printing?
Yes, the Toshiba B-EX4T2 supports both direct thermal and thermal transfer printing methods, giving you flexibility in media choices and application requirements. This dual-method capability allows you to optimize for different label types and durability needs.
What barcode formats does the Toshiba BEX4T2GS12M01 support?
The Toshiba B-EX4T2 includes GS1 DataBar (RSS) compatible barcode support, making it ideal for retail, logistics, and supply chain applications that require modern barcode standards. The printer also supports both bitmap and outline fonts for flexible label design.
What maintenance features does the Toshiba BEX4T2GS12M01 include?
The Toshiba B-EX4T2 features a user-replaceable snap-in printhead and platen roller that reduce maintenance downtime and costs, with easy access for consumables loading. The intuitive graphical LCD display helps guide operators through maintenance procedures, minimizing training requirements. Contact us today to learn how we can support your printer maintenance and supplies.
