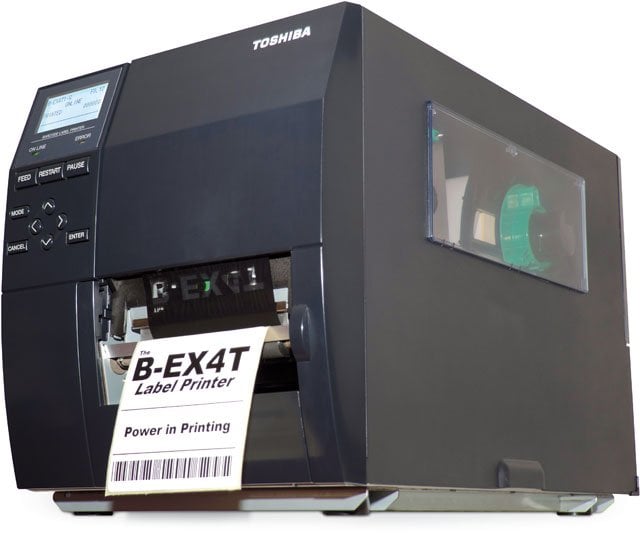

Toshiba B-EX4T1 – Barcode Label Printer
Full specifications (PDF)
Toshiba B-EX4T1 Barcode Label Printer Model Overview
Key features:
- High-speed printing: Up to 14 ips for faster workflows.
- Energy-efficient: Significantly lower power consumption and operating costs.
- User-friendly design: Intuitive graphical LCD for easy operation.
- Durable construction: Long life printhead and robust design for industrial use.
- Advanced emulation: Compatible with ZPL IIⓇ without software modifications.
Specifications:
- Print Method: Direct thermal / Thermal transfer
- Print Width: 104 mm
- Max. Print Speed: 14 ips (355 mm/sec)
- Resolution: 203dpi / 305dpi
- Dimensions: 310(H) x 278(W) x 460(D) mm
- Connectivity:
- USB 2.0
- Ethernet
- Optional: Parallel, serial, wireless LAN, RTC & USB host
- Standard Ribbon Length: 600 m
- Paper Width: 120 mm
- Paper Roll: 200 mm
Frequently Asked Questions
What is the print speed of the Toshiba B-EX4T1 barcode printer?
The Toshiba B-EX4T1 delivers a maximum print speed of 14 ips (355 mm/sec), which represents a 40 percent improvement in productivity compared to the SX range at 10 ips. This faster speed helps increase throughput in high-volume labeling environments.
What connectivity options does the B-EX4T1 offer?
The B-EX4T1 comes standard with USB 2.0 and Ethernet connectivity. Optional interfaces include parallel, serial, wireless LAN, real-time clock (RTC), and USB host capabilities, giving you flexibility to integrate with your existing warehouse or logistics infrastructure.
Is the Toshiba B-EX4T1 compatible with the older SX range printers?
Yes, the B-EX4T1 is fully compatible with the SX range, allowing for swift migration of legacy printers without requiring significant workflow changes. This compatibility makes it an ideal upgrade path for existing Toshiba users.
What are the maintenance benefits of the B-EX4T1?
The B-EX4T1 features a user-replaceable snap-in printhead and platen roller, which significantly reduces maintenance downtime and costs. The wide opening printhead block provides easy access for consumables loading and maintenance operations.
How energy-efficient is the Toshiba B-EX4T1 compared to previous models?
The B-EX4T1 consumes less than 9W in stand-by mode and delivers nearly 40 percent lower overall power consumption on stand-by compared to its predecessor. The printer qualifies for the Energy Star program, making it an environmentally responsible choice for industrial operations.
What resolution and print width options are available on the B-EX4T1?
The B-EX4T1 offers a 4-inch (104 mm) print width with resolution options of 203 dpi or 305 dpi. It supports both direct thermal and thermal transfer printing methods, with barcode capabilities including GS1 Data compatibility.
