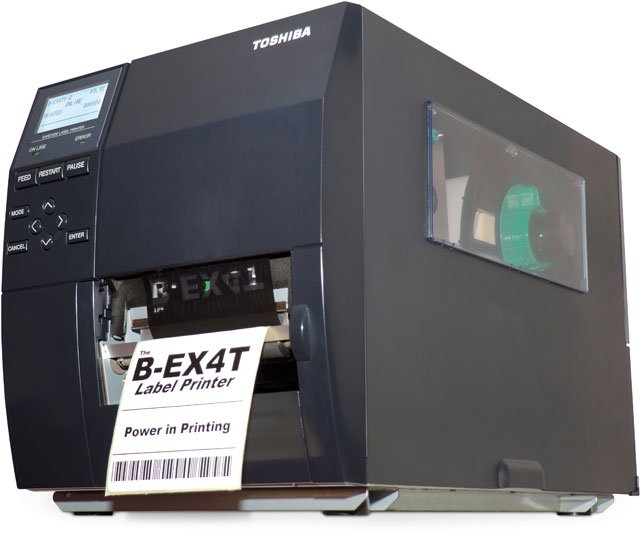

Toshiba B-EX4T1 – Barcode Label Printer
Full specifications (PDF)
Toshiba B-EX4T1 Barcode Label Printer Model Overview
Key features:
- High-speed printing: Up to 14 ips for faster workflows.
- Energy-efficient: Significantly lower power consumption and operating costs.
- User-friendly design: Intuitive graphical LCD for easy operation.
- Durable construction: Long life printhead and robust design for industrial use.
- Advanced emulation: Compatible with ZPL IIⓇ without software modifications.
Specifications:
- Print Method: Direct thermal / Thermal transfer
- Print Width: 104 mm
- Max. Print Speed: 14 ips (355 mm/sec)
- Resolution: 203dpi / 305dpi
- Dimensions: 310(H) x 278(W) x 460(D) mm
- Connectivity:
- USB 2.0
- Ethernet
- Optional: Parallel, serial, wireless LAN, RTC & USB host
- Standard Ribbon Length: 600 m
- Paper Width: 120 mm
- Paper Roll: 200 mm
Frequently Asked Questions
What is the print speed of the Toshiba BEX4T1TS12DS03?
The Toshiba B-EX4T1 delivers a maximum print speed of 14 ips (355 mm/sec), which represents a 40 percent improvement in productivity compared to the SX range at 10 ips. This higher speed makes it ideal for high-volume warehouse and logistics operations requiring faster label throughput.
What connectivity options are available on this Toshiba printer?
The B-EX4T1 comes standard with Ethernet and USB 2.0 connectivity, with optional interfaces available for parallel, serial, wireless LAN, RTC, and USB host. This flexible connectivity allows seamless integration into diverse warehouse and IT environments.
Is the Toshiba BEX4T1TS12DS03 compatible with my existing SX range printers?
Yes, the B-EX4T1 is fully compatible with the SX range, allowing for swift migration of legacy printers without requiring system overhauls. This backward compatibility protects your existing investments while enabling you to upgrade to higher performance.
What are the power consumption and environmental credentials of this printer?
The B-EX4T1 qualifies for the Energy Star program with less than 9W standby power consumption—nearly 40 percent lower than its predecessor. All Toshiba products, including this model, are RoHS compliant and designed to reduce environmental impact.
What print resolutions and methods does the Toshiba BEX4T1TS12DS03 support?
The B-EX4T1 supports both direct thermal and thermal transfer print methods at 203 dpi and 305 dpi resolutions, with a 4-inch (104 mm) print width. It includes GS1 Data barcode support and bitmap and outline font capabilities for flexible labeling needs.
What maintenance features does this printer offer to reduce downtime?
The B-EX4T1 features user-replaceable snap-in printhead and platen roller components, significantly reducing maintenance costs and downtime. An intuitive graphical LCD helpdesk display provides real-time guidance for corrective action, minimizing user training requirements and keeping operations running smoothly.
