Toshiba B-EX4T1 – Barcode Label Printer
Full specifications (PDF)

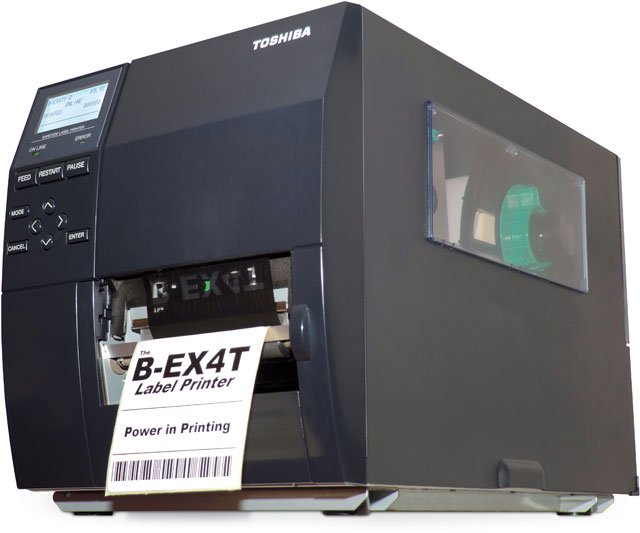

Toshiba B-EX4T1 Barcode Label Printer Model Overview
Key features:
- High-speed printing: Up to 14 ips for faster workflows.
- Energy-efficient: Significantly lower power consumption and operating costs.
- User-friendly design: Intuitive graphical LCD for easy operation.
- Durable construction: Long life printhead and robust design for industrial use.
- Advanced emulation: Compatible with ZPL IIⓇ without software modifications.
Specifications:
- Print Method: Direct thermal / Thermal transfer
- Print Width: 104 mm
- Max. Print Speed: 14 ips (355 mm/sec)
- Resolution: 203dpi / 305dpi
- Dimensions: 310(H) x 278(W) x 460(D) mm
- Connectivity:
- USB 2.0
- Ethernet
- Optional: Parallel, serial, wireless LAN, RTC & USB host
- Standard Ribbon Length: 600 m
- Paper Width: 120 mm
- Paper Roll: 200 mm
Frequently Asked Questions
What is the print speed of the Toshiba BEX4T1TS12DM01?
The Toshiba B-EX4T1 prints at 14 inches per second (355 mm/sec), which represents a 40 percent improvement in productivity compared to the SX range that operated at 10 ips. This higher speed makes it ideal for high-throughput warehouse and logistics environments where label volume is critical.
What connectivity options does this printer offer?
The B-EX4T1 comes standard with Ethernet and USB 2.0 connectivity. Optional interfaces include parallel, serial, wireless LAN, real-time clock (RTC), and USB host capabilities. This flexibility allows seamless integration into existing warehouse management and inventory systems.
Is the Toshiba B-EX4T1 compatible with my existing SX range printers and software?
Yes, the B-EX4T1 is fully compatible with the SX range, allowing for swift migration of legacy printers without requiring software changes. The printer also features emulation technology that enables it to work with ZPL II data streams, protecting your existing investments and lowering total cost of ownership.
What are the power consumption specifications for this printer?
The B-EX4T1 uses less than 9W in stand-by mode and features nearly 40 percent lower overall power consumption on stand-by compared to its predecessor. This energy efficiency qualifies the printer for the Energy Star program, making it an environmentally responsible choice for industrial operations.
What maintenance features does the B-EX4T1 include?
The B-EX4T1 incorporates a user-replaceable snap-in printhead and platen roller, which significantly reduces maintenance costs and downtime. These design elements, combined with an intuitive graphical LCD helpdesk display, minimize user training requirements and enable quick corrective action when needed.
What support and supplies are available for the Toshiba B-EX4T1?
We offer a comprehensive one-stop solution including a full range of approved media, labels, consumables, and cleaning products. Our support network provides experienced engineers and service staff to service and maintain your printer once installed, ensuring peace of mind for your warehouse operations. Contact us today for details on available support options and supplies.
