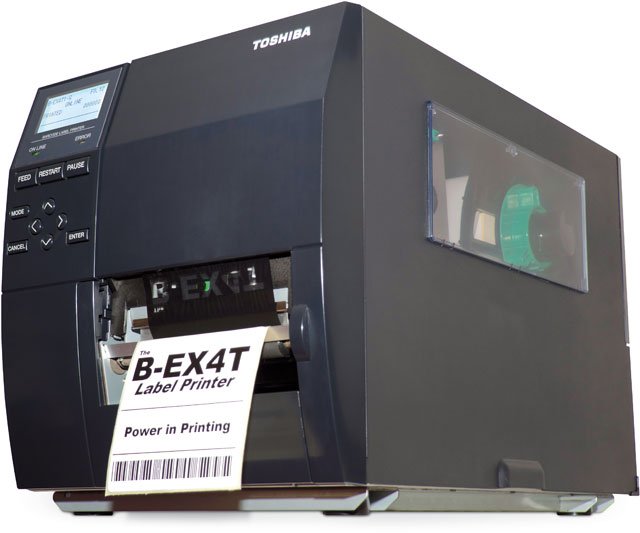

Toshiba B-EX4T1 – Barcode Label Printer
Full specifications (PDF)
Toshiba B-EX4T1 Barcode Label Printer Model Overview
Key features:
- High-speed printing: Up to 14 ips for faster workflows.
- Energy-efficient: Significantly lower power consumption and operating costs.
- User-friendly design: Intuitive graphical LCD for easy operation.
- Durable construction: Long life printhead and robust design for industrial use.
- Advanced emulation: Compatible with ZPL IIⓇ without software modifications.
Specifications:
- Print Method: Direct thermal / Thermal transfer
- Print Width: 104 mm
- Max. Print Speed: 14 ips (355 mm/sec)
- Resolution: 203dpi / 305dpi
- Dimensions: 310(H) x 278(W) x 460(D) mm
- Connectivity:
- USB 2.0
- Ethernet
- Optional: Parallel, serial, wireless LAN, RTC & USB host
- Standard Ribbon Length: 600 m
- Paper Width: 120 mm
- Paper Roll: 200 mm
Frequently Asked Questions
What is the print speed of the Toshiba B-EX4T1 barcode printer?
The Toshiba B-EX4T1 delivers a maximum print speed of 14 inches per second (355 mm/sec), which represents a 40 percent improvement in productivity compared to the predecessor SX range that operated at 10 ips. This faster throughput helps warehouses and logistics operations process higher label volumes efficiently.
What connectivity options are available on the B-EX4T1?
The B-EX4T1 comes standard with Ethernet and USB 2.0 connectivity. Optional interfaces include parallel, serial, wireless LAN, real-time clock (RTC), and USB host capabilities, giving you flexibility to integrate the printer into your existing network infrastructure. We offer the full range of connectivity options to support your deployment needs.
Is the Toshiba B-EX4T1 compatible with my existing SX range printers and software?
Yes, the B-EX4T1 is fully compatible with the SX range, allowing for swift migration of legacy printers without requiring system overhauls. The printer also supports ZPL II® emulation technology, enabling it to work with existing data streams and protecting your software investments while lowering total cost of ownership.
What are the power consumption specifications for this printer?
The B-EX4T1 consumes less than 9W in stand-by mode, delivering nearly 40 percent lower power consumption during stand-by compared to its predecessor. This energy efficiency qualifies the printer for the Energy Star program, making it an environmentally responsible choice for industrial environments.
What maintenance features does the B-EX4T1 include?
The B-EX4T1 features user-replaceable snap-in printhead and platen roller components, which significantly reduce maintenance costs and downtime. Combined with the intuitive graphical LCD helpdesk display that guides users through corrective actions, the printer minimizes training requirements and keeps operations running smoothly.
What print resolution and barcode support does the B-EX4T1 offer?
The B-EX4T1 supports both 203 dpi and 305 dpi print resolutions using direct thermal or thermal transfer printing methods. The printer includes GS1 Data barcode capabilities and supports both bitmap and outline fonts, making it suitable for a wide range of labeling applications in warehouse and logistics environments. Contact us today to discuss which resolution best fits your labeling needs.
