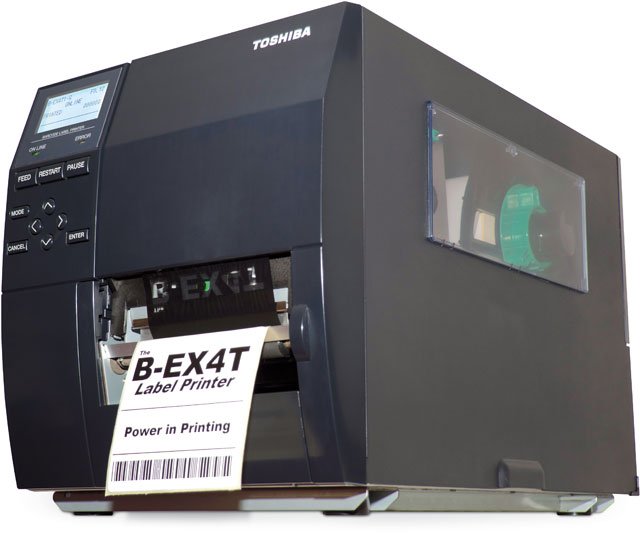

Toshiba B-EX4T1 – Barcode Label Printer
Full specifications (PDF)
Toshiba B-EX4T1 Barcode Label Printer Model Overview
Key features:
- High-speed printing: Up to 14 ips for faster workflows.
- Energy-efficient: Significantly lower power consumption and operating costs.
- User-friendly design: Intuitive graphical LCD for easy operation.
- Durable construction: Long life printhead and robust design for industrial use.
- Advanced emulation: Compatible with ZPL IIⓇ without software modifications.
Specifications:
- Print Method: Direct thermal / Thermal transfer
- Print Width: 104 mm
- Max. Print Speed: 14 ips (355 mm/sec)
- Resolution: 203dpi / 305dpi
- Dimensions: 310(H) x 278(W) x 460(D) mm
- Connectivity:
- USB 2.0
- Ethernet
- Optional: Parallel, serial, wireless LAN, RTC & USB host
- Standard Ribbon Length: 600 m
- Paper Width: 120 mm
- Paper Roll: 200 mm
Frequently Asked Questions
What is the print speed of the Toshiba B-EX4T1 barcode printer?
The Toshiba B-EX4T1 delivers a maximum print speed of 14 inches per second (355 mm/sec), which represents a 40 percent improvement in productivity compared to the earlier SX range that operated at 10 ips. This faster speed helps warehouses and logistics operations increase throughput and reduce label production bottlenecks.
What connectivity options does the B-EX4T1 offer?
The B-EX4T1 comes standard with USB 2.0 and Ethernet connectivity. Optional interfaces are available for parallel, serial, wireless LAN, real-time clock (RTC), and USB host functionality, giving you flexibility to integrate the printer into your existing network infrastructure.
How does the B-EX4T1 compare to the Toshiba B-SX range?
The B-EX4T1 is fully compatible with the B-SX range, enabling swift migration from legacy printers without workflow disruption. It offers 40 percent faster print speeds (14 ips vs. 10 ips) and nearly 40 percent lower standby power consumption (under 9W), while maintaining the ease of use and maintenance features that made the SX range successful over its 8+ years in industrial environments.
What print resolutions are available on the B-EX4T1?
The B-EX4T1 supports both 203 dpi and 305 dpi print resolutions, allowing you to choose the resolution that best matches your label quality and barcode readability requirements. Both resolutions are available across the B-EX4T1 product range.
Is the B-EX4T1 energy-efficient?
Yes, the B-EX4T1 qualifies for the Energy Star program and consumes less than 9W in standby mode—nearly 40 percent lower than its predecessor. This energy efficiency reduces operating costs and environmental impact, making it an ecological choice for industrial printing operations.
What makes maintenance easier on the B-EX4T1?
The B-EX4T1 features user-replaceable snap-in printhead and platen roller components, which significantly reduce maintenance downtime and costs. The printer also includes an intuitive graphical LCD helpdesk display that guides users through troubleshooting and corrective actions, minimizing the need for extensive operator training.
