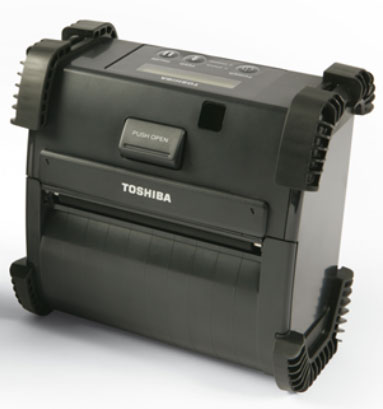

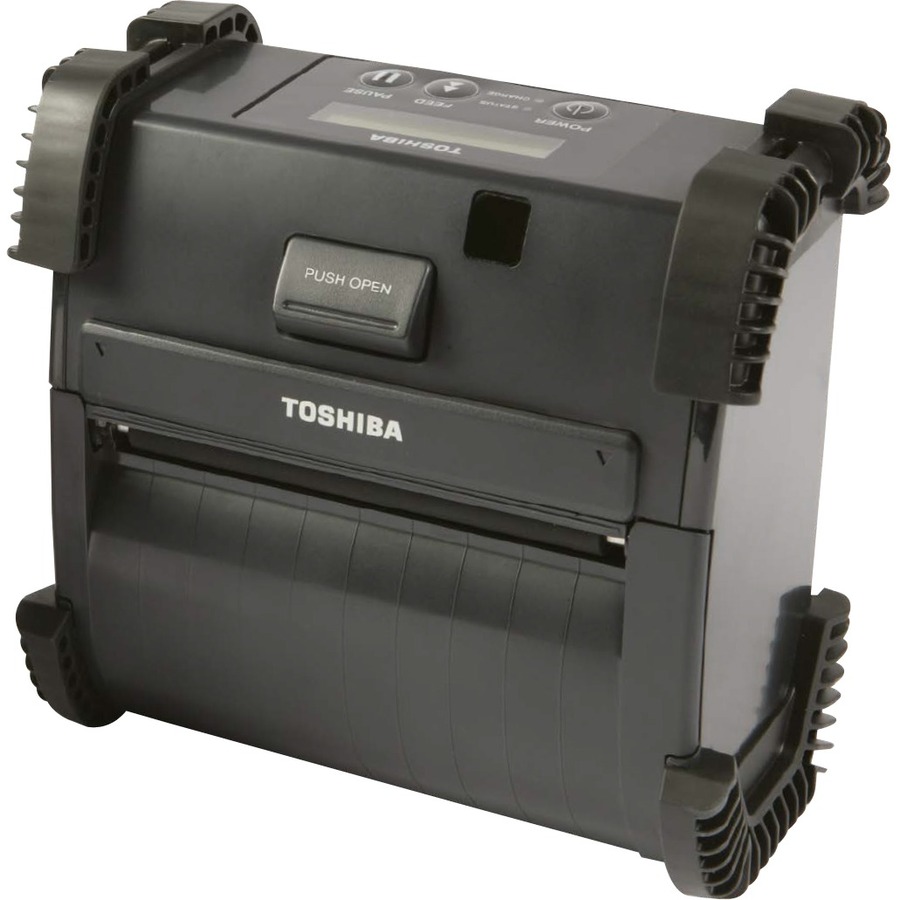

Toshiba B-EP4DL-GH42-QM-R Barcode Label Printer

Toshiba B-EP4DL Series - Barcode Label Printers, TEC B-EP4DL Series, 4" Portable, 200 dpi, 4 ips, IRDA/USB/Wi-Fi
  • A smart and inexpensive solution to print temporary documents
  • 203 maximum print resolution (dpi) for better reliance and added usability
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • This printer produces high-quality labels and receipts
  • Ideal to be used in field service, and in any application that has a need to print on the go
  • Bye bye Wires, Hello Wi-Fi! Cut down the potential hazards of tripping and electrical fires by reducing the number of long cables. Print wirelessly even from your mobile devices.
  • 4.53" maximum label width for dependable, desired results
  • Supports label media type for maximum feasibility and better accommodation of your requirements
  • Direct Thermal Printer with mobile application/usage provides maximum usability with better reliance
  • Compact feature for maximum productivity with added dependability
Read More
$1,274.25
In Stock
Add to Quote
Toshiba Parts Accessory Model Overview
Products and parts from Toshiba.
Toshiba B-EP4DL-GH42-QM-R Barcode Label Printer Overview
Endurance on the move

Lighter, Faster, Better

We've always created the most compact machines on the market. Each one is so small and light that you can wear or carry it and forget that it's there. The B-EP4D printers boast a print speed of up to 4 inches per second. With 'peel & present' on demand, simply take a label and the next one is issued in a flash

Durable and Robust

In the real world, accidents can happen, so we developed rugged rubber corners and the B-EP4D easily passed a 1.5 m drop test onto concrete. But we didn't stop there with the rubber - we also used it on the external ports to protect them from any spills .

So simple to use

For user-friendliness and very fast operator training times, there's nothing like the clear backlit LCD read-out on the larger Toshiba thermal printers. So we put it into the mobile range as well, displaying a label counter, battery level, wireless signal strength and error messages. There's audible alerts too, just in case.

Less media changes

Papers or labels drop-in with one hand? No problem. The large capacity we've designed means changing media less often. Plus there are no cores required on the rolls, so you only have to deal with minimal waste.

Easy networking

The B-EP4D makes networking to all wireless or cabled systems a breeze. USB 2.0 and IrDA are standard across all EP models. Simply choose between serial, Bluetooth and WLAN for 2.4 GHz/5GHz wireless networks. The RS232 model can even be upgraded to WLAN and Bluetooth at a later stage with an optional kit.

Swift integration

With Windows drivers, SAP device drivers and configuration utilities as standard, integration of the EP series is child's play. The printer speaks many programming languages and is designed to simply plug and play without any software changes, whether it's a Toshiba printer using TPCL or any make using BCI (Basic Command Interpreter) 2). The B-EP4D printers will handle inputs from other peripherals such scanners. Uniquely, they also support ESC/POS language.
Technical Information
Recommended Use:
Label/Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Length:
39.17"
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • UPC/EAN
  • Code 39
  • Code 128
  • Code 93
  • EAN 128
  • MSI
  • Interleaved 2 of 5
  • Industrial 2 of 5
  • Matrix 2 of 5
  • POSTNET
  • RM4SCC
  • GS1 DataBar
  • Data Matrix
  • PDF417
  • QR Code
  • Maxi Code
  • Micro PDF-417
  • Customer Barcode
  • KIX-Code
  • NW7
  • UPC/EAN/JAN
Application/Usage:
Mobile
Features:
  • Compact
  • Drop Resistant
  • Spill Resistant
  • LCD Display
  • Rugged
Connectivity Technology:
Wireless
Optional Connectivity:
  • Bluetooth
  • Serial (RS-232)
Fonts Included:
  • Bitmap font
  • Outline font
  • Writable characters
Memory
Standard Memory:
16 MB
Interfaces/Ports
USB Host:
Yes
USB:
Yes
Network & Communication
Wireless LAN:
Yes
Display & Graphics
Display Screen:
Yes
Display Screen Type:
LCD
Media Types & Handling
Media Type:
  • Label
  • Receipt
Media Sensor:
  • Reflective Media Sensor
  • Transmissive Media Sensor
Maximum Roll Diameter:
2.68"
Maximum Label Width:
4.53"
Fonts & Emulation
Language Emulation:
  • ESC/POS
  • ZPL II
  • CPCL
  • TPCL
  • BCI
Software
Operating System Supported:
Windows 10/8.1/8/7 (32/64 bit), Windows Server 2016, Windows Server 2012 R2/Server 2012, Windows Server 2008 R2, SAP
Power Description
Power Source:
Battery
Battery Information
Battery Included:
Yes
Battery Capacity:
2600 mAh
Environmental Conditions
Operating Temperature:
32°F (0°C) - 122°F (50°C)
Operating Relative Humidity:
25% - 85%
Storage Temperature:
-13°F (-25°C) - 140°F (60°C)
Storage Relative Humidity:
10% - 90%
Physical Characteristics
Form Factor:
Portable
Height:
3"
Width:
5.9"
Depth:
5.7"
Weight (Approximate):
1.91 lb
Miscellaneous
Platform Supported:
PC
Item Numbers
UNSPSC: 45101512
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Toshiba B-EP4DL-GH42-QM-R Barcode Label Printer is also known as B-EP4DL-GH42-QM-R
