Device Function:
IP Camera Testing
Tatung Parts Accessory Model Overview
Products and parts from Tatung.

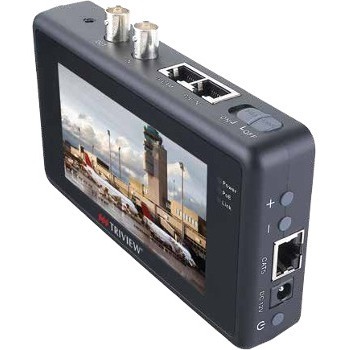

Tatung TOM-0431IP Monitor Overview
TOM-0431IP is an IP installation and service tool that works with a variety of the most popular IP camera protocols. The TOM-0431IP is highly portable and includes a 4.3" sunlight viewable touch-screen display in wide-screen format. The unit incorporates POE function as well as a "snapshot" function. A Leather carrying case along with a velcro wrist strap is included for hands-free operation. The battery powered TOM-0431IP includes a cable for charging the unit's internal battery. In addition to IP connection, the TOM-0431IP also includes a BNC input and output for use with analog cameras.
Technical Information
Interfaces/Ports
HDMI:
No
DVI:
No
VGA:
No
USB:
Yes
Serial Port:
No
Serial V.35 Interface:
No
Audio Line Out:
No
PoE (RJ-45) Port:
Yes
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
3
Wireless Specifications
Wireless LAN:
No
Media & Performance
Media Type Supported:
- Twisted Pair
- Coaxial
Network & Communication
Ethernet Technology:
Ethernet
Battery Information
Battery Size Supported:
7.2V
Battery Built-in:
Yes
Battery Rechargeable:
Yes
Battery Chemistry:
Lithium Ion (Li-Ion)
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Height:
3.7"
Width:
5.6"
Depth:
1.1"
Weight (Approximate):
12 oz
Miscellaneous
Package Contents:
- Universal IP Camera Test Monitor
- Velcro Wrist Strap
- Leather Case
- Carrying Bag
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0025517915043
UPC:
025517915043
EAN:
0025517915043
UNSPSC:
41113600
Questions? Get help from
a POS Expert!
a POS Expert!
The Tatung TOM-0431IP Monitor is also known as
TOM-0431IP
