Symbol WSAP-5110-100-GR Access Point

The Symbol WSAP-5110-100-GR Access Point has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Symbol AP 300 - Zebra AP300 Wireless Access Point - IEEE 802.11a/b/g 54Mbps - 1 x 10/100Base-TX
  • With IEEE 802.11a/b/g network technology and data transfer rate of up to 54 Mbit/s, enjoy superior HD media playback and lag-free gaming
  • Link your Wi-Fi traffic to your wired network with Fast Ethernet port
  • Electrical power is transmitted along with the data in a single cable to devices such as the Access Points, IP cameras or IP phones
Read More

Need a different version? See all Symbol AP 300 Access Points

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Symbol WSAP-5110-100-GR Access Point
Symbol WSAP-5110-100-GR Access Point Symbol WSAP-5110-100-GR Access Point
Symbol WSAP-5110-100-GR Access Point
Symbol WSAP-5110-100-GR Access Point
Full specifications (PDF)

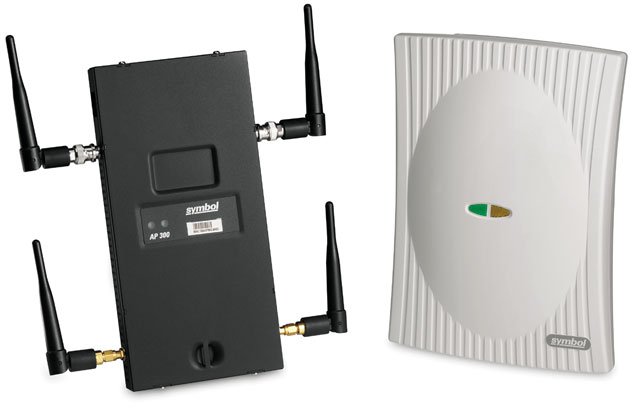

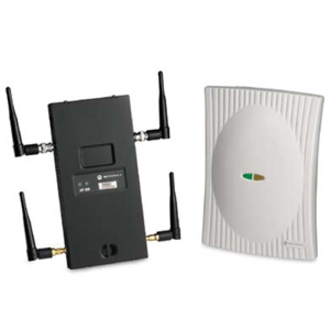

Symbol AP 300 Access Point Model Overview
The Symbol AP 300 provides simultaneous wireless service to 802.11a, 802.11b and 802.11g mobile devices with high-bandwidth wireless connectivity at speeds of up to 54 Mbps in both the 2.4 GHz and 5.2 GHz ISM bands. The AP 300 requires no configuration or manual firmware maintenance. The Symbol Wireless Switch discovers Access Ports on the network and automatically downloads all configuration parameters and firmware. Installation, maintenance and troubleshooting costs are greatly reduced.
Symbol WSAP-5110-100-GR Access Point Overview

The AP 300 IEEE 802.11a/b/g Wireless Access Point substantially reduce the cost of deploying, implementing and managing a wireless LAN, while significantly increasing features, functionality and security of the wireless LAN infrastructure.

Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11a/b/g
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.48 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.88 GHz
Total Number of Antennas:
2
Antenna Gain:
3 dBi
Antenna Connector:
BNC Connector
Wireless Transmission Speed:
54 Mbit/s
Interfaces/Ports
Ethernet Technology:
Fast Ethernet
PoE (RJ-45) Port:
Yes
Management & Protocols
Management:
VLAN
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Ceiling Mountable
Height:
2"
Depth:
9.5"
Weight (Approximate):
15.87 oz
Miscellaneous
Additional Information:
  • Load Balancing
  • Pre-Emptive Roaming
  • Rate Scaling
Item Numbers
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol WSAP-5110-100-GR Access Point is also known as SYM-WSAP5110100GR or WSAP5110100GR.
