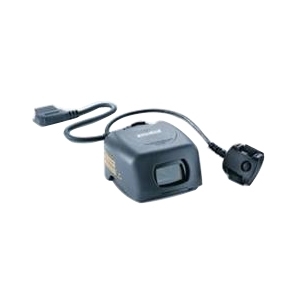

Symbol RS309-FZR Barcode Scanner

The Symbol RS309-FZR Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Symbol WT4090 - Scanner Freezer Kit. Includes: RS309-HP2000FZR, 21-89721-01R Hand Mount, 25-85767-01R Trigger Cable, 25-85975-01R Short Cable to Wrist-Mounted Terminal.
  • Easy to wear & utilize, particularly for those versatile workers that scan barcodes while keeping their hands free
  • Powerful laser scan source provides 40 scan/s decode rate
  • Scan barcodes with a staggering speed of 40 scan/s
Read More
Discontinued Need Assistance?
Add to Quote
Symbol WT4090 Accessory Model Overview
Cable, cradle, strap, battery, scanner, charger, holster, mount and more
Symbol RS309-FZR Barcode Scanner Overview

Equip your workers with high-performance hands-free scanning with the RS309 Wearable Scanner from Symbol Technologies. Part of the WT4000 Series Wearable System, the device is worn on the back of the hand, and delivers accurate and dependable scanning as well as all day comfort for workers picking items to fill orders in the warehouse. Regardless of which 1D bar code symbologies you utilize, or even if symbols are poorly printed, damaged or low-contrast, you can depend on superior reliability for the instant capture of information. And with a wide scan range, the RS309 provides the flexibility to meet the needs of multiple applications in your warehouse with a single cost effective device. And when condensation is an issue it offers a field replaceable desiccant pack to absorb moisture and help ensure reliable operation in spite of exposure to wide temperature swings.

Technical Information
Scanning Capability:
1D
Light Source:
Laser
Scan Rate:
40 scan/s
Depth of Field:
  • 7" - 9.5"@5mil - Code 39
  • 9.75" - 15.25"@7.5mil - Code 39
  • 20.25" - 27.25"@13mil - UPC
  • 29.25" - 42.5"@20mil - Code 39
  • 54.5" - 84.75"@55mil - Code 39
Scan Pattern:
Bi-directional
Power Description
Input Voltage:
3.6 V DC
Physical Characteristics
Height:
1.5"
Width:
2.4"
Depth:
2.7"
Weight (Approximate):
3.50 oz
Miscellaneous
Package Contents:
  • RS309 Wearable Scanner
  • Short Cable to Wrist-Mounted Terminal
  • Trigger Cable
  • Hand Mount
Additional Information:

USB Cable separate

Certifications & Standards:
  • RoHS Compliant

Electrical Safety:

  • CSA C22.2 No. 60950-1
  • EN60950-1
  • IEC 60950-1

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC
  • R&TTE
  • Australian AS/NZS 4268

Laser Safety:

  • CDRH Class II
  • IEC 60825-1 Class 2
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol RS309-FZR Barcode Scanner is also known as SYM-RS309FZR or RS309FZR.
