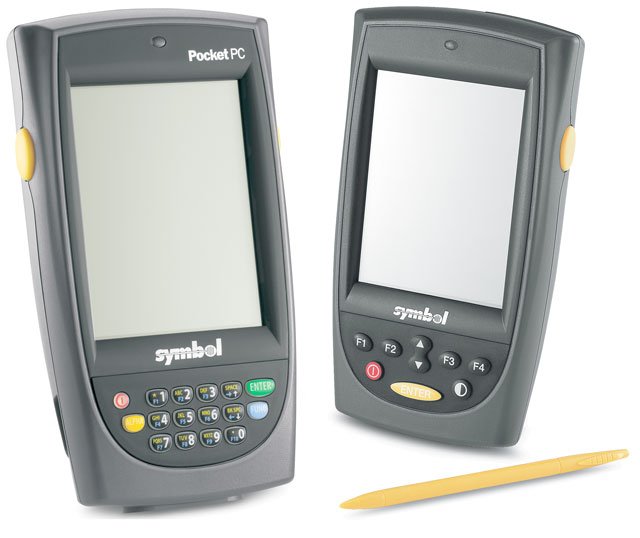

Motorola PPT8846-R3BZ10WWR Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review
Symbol PPT 8846 - Wireless Enterprise PDA (11MB, HP, LIN RSS, Pocket PC 2003, 64MB and 15 key Keypad)
Small, Rugged and Packed with Power

The PPT 8846 combines superior data capture capability and wireless communications in a rugged handheld computer that is the smallest and lightest device in its class. The PPT 8846 is ideal for use in many environments where up-to-date information is needed at the point of activity.

Technical Information

  • Scanner Range: Standard Range
  • Connectivity Technology: Wireless
  • Light Source: Laser
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 48" To Concrete
  • Barcode Symbology Supported:
    • Codabar (NW7)
    • Code 39
    • Code 93
    • Code 128
    • Discrete 2 of 5
    • Interleaved 2 of 5
    • UCC/EAN 128
    • UPC/EAN/JAN
    • RSS Variants

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: PPT8846
  • Product Name: PPT8846 Portable Pen Terminal

Physical Characteristics

  • Height: 1.3"
  • Width: 3.2"
  • Length: 5.8"
  • Weight (Approximate): 11.10 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • PPT 8846 Portable Pen Terminal
    • Battery
    • Hand Strap
    • Stylus
    • Case
    • Quick Reference Guide
    • PPT 8846 Portable Pen Terminal
    • Battery
    • Hand Strap
    • Stylus
    • Case
    • Quick Reference Guide
  • Certifications & Standards:
    • Electrical Safety:
    • Certified to UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
    • Laser Safety:
    • CDRH Class II
    • IEC Class 2
  • Additional Information:
    • Country/Region: Worldwide
    • Radio: Spectrum 24,11
    • Environmental Sealing: IP54

Network & Communication

  • Antenna Form Factor: Internal
  • Infrared: Yes
  • Wireless Security:
    • Kerberos
    • KeyGuard (SBL TKIP)
    • LEAP
    • PEAP
    • WEP 128
    • WPA Home (PSK)
    • WPA-Enterprise (EAP Authenticated)
    • Airbeam Safe (VPN)

Display & Graphics

  • Screen Mode: QVGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 320 x 240

Battery Information

  • Battery Capacity: 1700 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 400 MHz
  • Processor Type: XScale

Keyboard/Keypad

  • Keyboard Type: Alphanumeric
  • Number of Keys: 15

Memory

  • Flash Memory: 64 MB
  • Standard Memory: 64 MB

Software

  • Operating System: Windows Mobile 2003

Warranty

  • Limited Warranty: 1 Year

Touchscreen Information

  • Touchscreen: Yes

Full specifications (PDF)

Full specifications (PDF)

Brand Symbol
Model PPT 8846
Display Resolution 240 x 320
RAM Memory 128MB
Operating System Windows Mobile 2003, Windows Mobile
Style Phone-size
IP Rating IP54
Scanner Type Laser
Data Collection Type Wireless
Drop Rating 4 ft.1.2 m
