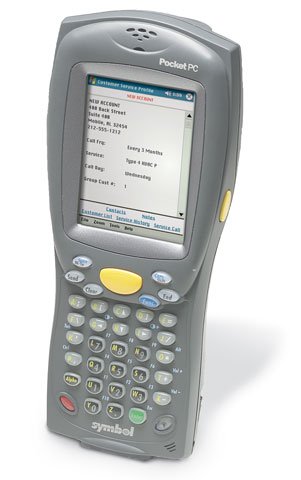

Motorola PDT8146-T5BA50WW Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review
Symbol PDT 8146 - 64MB RAM, 802.11b, 28 keys, color display, XScale processor. Includes 1D scanner, pistol grip compatibility, & Pocket PC 2003 OS. Order cradle, cables, pistol grip, & battery separately. See accessories.
Tap, Type, or Scan - Maximum Versatility in a Portable Data Terminal

The PDT 8146 Series bridges the gap between pure pen-based and key-based mobile data collection solutions. The first Pocket PC device available with multiple keyboard options, the PDT 8146 is a versatile, large-screen handheld that delivers the functionality of Pocket PC with the convenience of tactile, key-based data entry. Designed to meet mobile data management demands in an array of markets, the PDT 8146 offers features and options to suit diverse applications and business needs. For instance, multiple keyboard options are available for maximum data entry efficiency in different environments. Route accounting professionals may prefer the 28 key numeric keyboard, whereas retail customers may opt for either a 37- or 47 key alphanumeric keyboard. All units ship with one product reference guide.

Technical Information

  • Operating System: Windows Mobile 2003
  • Processor: Intel XScale 400MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • WEP 40 bit
    • WEP 128 bit
    • Keyguard - (SBL TKIP)
    • Kerberos
    • LEAP
    • WPA Home (PSK)
    • PEAP
    • WPA Enterprise (EAP Authenticated)
    • Airbeam Safe (VPN)
  • Scanner Type: Laser Standard Range
  • Symbologies Supported:
    • Code 128
    • UPC/EAN/JAN
    • UCC/EAN 128
    • Code 39
    • Code 93
    • Discrete 2 of 5
    • Interleaved 2 of 5
    • Codabar (NW7)
    • RSS Variants

General Information

  • Manufacturer: Symbol
  • Product Line: Portable Data Terminal (PDT)
  • Product Name: PDT 8146 Portable Data Terminal

Physical Characteristics

  • Display: 3.5" Color QVGA - Touch Screen LCD
  • Display Resolution: 320 x 240
  • User Accessible Expansion Slot: CF Card Type 2
  • Keyboard: 28 Key Alpha Numeric Quick Grip Compatible Integrated
  • Battery Capacity: 1950 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 3.7" (94mm) x 8.5" (216mm) x 1.8" (46mm)
  • Weight: 18 oz - with battery

Environmental Conditions

  • Environmental Sealing: IP54
  • Temperature:
    • -10°C (14°F) to 50°C (122°F) Operating
    • -25°C (-13°F) to 50°C (122°F) Storage
  • Humidity: 5 to 90% Non-condensing
  • Electrostatic Discharge (ESD):
    • +/-15kVdc Air Discharge
    • +/-8kVdc Contact Discharge
  • Drop Spec: 4' To Concrete
  • Tumble: One-half meter: 250 Cycles (500 drops)

Agency Approvals

  • Agency Approvals:
    • Certified to UL 1950
    • CSA C22.2 No 950
    • EN60950/IEC950
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA

Other

  • Package Contents:
    • PDT 8146 Handheld Terminal
    • Battery
    • Handstrap
    • Stylus
    • Quick Reference Guide

Wireless Data Communications

  • Network Connectivity: WLAN 802.11b
  • Maximum RF Data Rate Supported: 11 Mbps
  • Output Power: 100mW
  • Antenna Connectors: Internal
  • Frequency Band/Bandwidth: 2.4GHz to 2.5GHz

Memory

  • RAM Memory: 64MB
  • Flash Memory: 64MB

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited

Full specifications (PDF)

Full specifications (PDF)

Brand Symbol
Model PDT 8146
RAM Memory 64 MB
Style Full-size
Operating System Windows Pocket PC
Display Resolution 240 x 320
Scanner Type Laser
Data Collection Type Wireless
