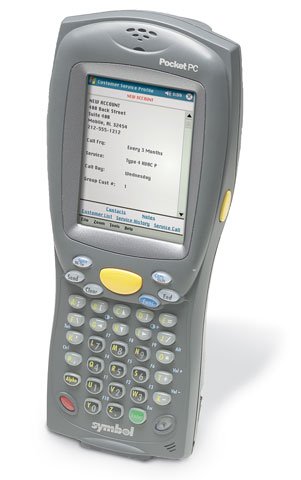

Motorola PDT8100-T5BA4000 Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review
Symbol PDT 8100 - 64MB RAM, 47 keys, color display, XScale processor. Includes 1D laser scanner & Pocket PC OS. Order cradle, cables, & battery separately. See accessories.
Tap, Type, or Scan - Maximum Versatility in a Portable Data Terminal

The PDT 8100 Series bridges the gap between pure pen-based and key-based mobile data collection solutions. The first Pocket PC device available with multiple keyboard options, the PDT 8100 is a versatile, large-screen handheld that delivers the functionality of Pocket PC with the convenience of tactile, key-based data entry. Designed to meet mobile data management demands in an array of markets, the PDT 8100 offers features and options to suit diverse applications and business needs. For instance, multiple keyboard options are available for maximum data entry efficiency in different environments. Route accounting professionals may prefer the 28 key numeric keyboard, whereas retail customers may opt for either a 37- or 47 key alphanumeric keyboard. All units ship with one product reference guide.

Technical Information

  • Operating System: Windows Mobile 2003
  • Processor: Intel XScale 400MHz
  • Data Collection Type: Batch
  • Scanner Type: Laser Standard Range
  • Symbologies Supported:
    • Code 128
    • UPC/EAN/JAN
    • UCC/EAN 128
    • Code 39
    • Code 93
    • Discrete 2 of 5
    • Interleaved 2 of 5
    • Codabar (NW7)
    • RSS Variants

General Information

  • Manufacturer: Symbol
  • Product Line: Portable Data Terminal (PDT)
  • Product Name: PDT 8100 Portable Data Terminal

Physical Characteristics

  • Display: 3.5" Color QVGA - Touch Screen LCD
  • Display Resolution: 320 x 240
  • User Accessible Expansion Slot: CF Card Type 2
  • Keyboard: 28 Key Alpha Numeric Quick Grip Compatible Integrated
  • Battery Capacity: 1950 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 8.5" (216mm) x 3.7" (94mm) x 1.8" (46mm)
  • Weight: 16.5 oz - with battery

Environmental Conditions

  • Environmental Sealing: IP54
  • Temperature:
    • -10°C (14°F) to 50°C (122°F) Operating
    • -25°C (-13°F) to 70°C (158°F) Storage
  • Humidity: 5 to 90% Non-condensing
  • Electrostatic Discharge (ESD):
    • +/-15kVdc Air Discharge
    • +/-8kVdc Contact Discharge
  • Drop Spec: 4' To Concrete
  • Tumble: One-half meter: 250 Cycles (500 drops)

Agency Approvals

  • Agency Approvals:
    • Certified to UL 1950
    • CSA C22.2 No 950
    • EN60950/IEC950
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA

Other

  • Package Contents:
    • PDT 8100 Portable Data Terminal
    • Battery
    • Handstrap
    • Stylus
    • Quick Reference Guide

Memory

  • RAM Memory: 64MB
  • Flash Memory: 64MB

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited

Full specifications (PDF)

Full specifications (PDF)

Brand Symbol
Model PDT 8100
Display Resolution 240 x 320
RAM Memory 64 MB
Operating System Windows Pocket PC
Style Full-size
Scanner Type Laser
Data Collection Type Batch


Customer Review Summary

Recommended Accessories for Model: Symbol PDT 8100 Mobile Computer
Motorola (50-16000-182R)
AC Power Line Cord, 2 Wire, 6', ungrounded, NEMA 1-15P Plug. (For use with 2 Wire, ungrounded Power Supplies)
In Stock: Ships Same Day


5.0

(1 reviews)

$12.80
+ Add to Quote
Motorola (23844-00-00R)
US AC Line Cord, Grounded, 7.5', Three wire for power supplies (Part# KT-14000-148R) and (Part# 50-14000-241R) and (Part# PWRS-14000-148R).
In Stock: Ships Same Day
$15.70
+ Add to Quote
Symbol Mobile Computer Accessories (21-98686-01R)
Strap (8.5 Length, Front)
In Stock: Ships Same Day
$12.80
+ Add to Quote
Symbol (21-58236-01)
Spare 1700 mAh Lithium Ion Battery for non XScale units.
In Stock: Ships Same Day
$43.30
+ Add to Quote
Global Technology Systems Symbol Replacement Battery (PDT8146FATPACK)
Fatpack Battery and Door for Symbol PDT8146 Xscale & QuickGrip Series, Lithium-ion, 3400 mAh, 3.7V
Ships in 3-5 Days
$74.70
+ Add to Quote

The Symbol PDT8100-T5BA4000 is also known as Symbol Technologies SYM-8100T5BA4000 or PDT8100T5BA4000 .
