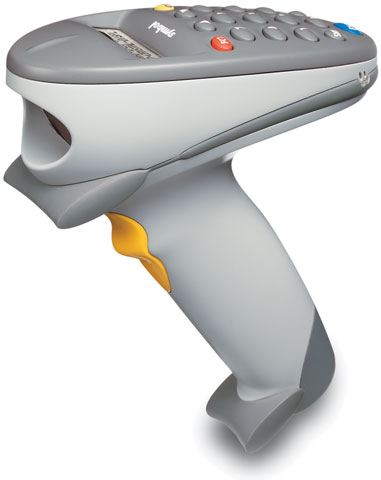

Symbol P470-SR1211100FBR Barcode Scanner

The Symbol P470-SR1211100FBR Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

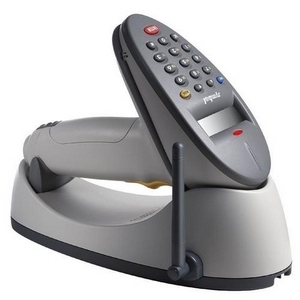

Symbol P470 - scanner only. Includes 2-line, 20-character display, standard 17-key keypad, 512K flash memory, 2.4Ghz narrowband, & battery. Order cradle, cradle-to-host cable, & power supply separately. See accessories. RoHS Compliant.
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Wireless connectivity gives you the adaptability to transmit barcode data to your smart devices
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
  • Scan barcodes with a staggering speed of 35 scan/s
Read More
Discontinued Need Assistance?
Add to Quote
Symbol P470 Barcode Scanner Model Overview
If your business applications demand cordless real-time data capture and transmission, demand the P470 scanners. These high-performance cordless scanners give users the freedom to go wherever data collection is needed-up to 100 ft./30 m or more from the host system, even without direct line of sight. Real-time wireless data capture keeps loading docks, factory floors and warehouses operating at peak efficiency, enabling instant decision-making and seamless communications throughout the enterprise. Ergonomically designed to minimize fatigue in scan-intensive applications, the P470 features a top-mounted keypad and display for effortless access and increased productivity. Shipped with a free application, users can scan and transmit data, manually key in alphanumeric records, and eliminate repetitive scanning by keying in quantities right out of the box. All units ship with one product reference guide.
Symbol P470-SR1211100FBR Barcode Scanner Overview

The Phaser P470 cordless RF bar code scanner from Symbol Technologies is rugged, high-performance wireless device that enable instant decision-making and seamless communications throughout the enterprise. Designed with a comfortable forward-scanning pistol grip to minimize fatigue in scan-intensive applications. This product has 512KB flash memory, a keyboard and a 2x20 line display.

Technical Information
Connectivity Technology:
Wireless
Barcode Symbology Supported:
  • UPC/EAN
  • Bookland EAN
  • Code 39
  • Code 39 Full ASCII
  • Trioptic Code 39
  • Code 93
  • Codabar
  • Interleaved 2 of 5
  • Code 128
  • EAN-128
  • Discrete 2 of 5
  • MSI/PLESSEY
  • Coupon Code
Light Source:
Laser
Scan Rate:
35 scan/s
Scan Pattern:
Bi-directional
Scanning Distance:
100 ft
Network & Communication
Radio Frequency:
Yes
Interfaces/Ports
Host Interface:
Serial
Physical Characteristics
Color:
  • White
  • Gray
Height:
7"
Width:
9.2"
Depth:
3.5"
Weight (Approximate):
12 oz
Miscellaneous
Additional Information:

USB Cable separate

Certifications & Standards:
  • RoHS Compliant

Electrical Safety:

  • UL1950
  • CSA C22.2 No. 950
  • EN60950
  • IEC950

Laser Safety:

  • CDRH Class II
  • IEC Class 2

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • European Union EMC Directive
  • Australian SMA
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Symbol P470-SR1211100FBR Barcode Scanner is also known as SYM-P470SR12111FBR or P470SR1211100FBR.
