Motorola P360-SR1214100WW Barcode Scanners


0.0

(No reviews)

Be the first to

Write a Review

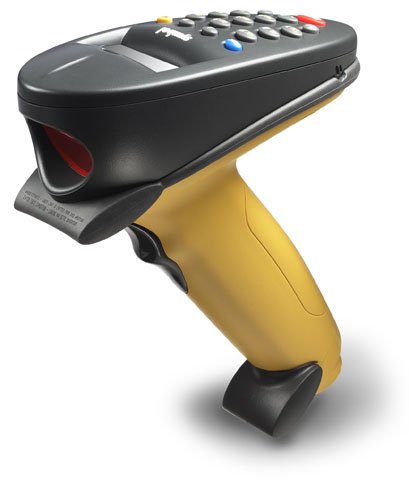

Symbol P360 - Scanner. Includes 2-line, 20-character display, 4MB flash, standard 17 key keypad, battery, product reference guide, & Link-Lite software. Order cradle, cradle-to-host cable, & power supply separately. See accessories.
Versatile Memory Scanners with Programmable Architecture

The P360 memory scanners are rugged, high-performance devices designed to minimize fatigue in scan-intensive applications. These batch data collection tools allow you to collect data (up to 53,000 barcodes) while freely roaming the premises for up to 12 hours. To download data, simply drop the P360 into the cradle connected to the host. The P360 also operates in a corded mode when cabled to a host. What's more, these scanners ship with a free inventory application already installed enabling users to store barcode data, manually key in alphanumeric data and quantities right out of the box. You can also review and delete existing records using the top-mounted keypad and display. Sealed to IP54 standards, the P360 is suited for extreme environments and withstands multiple 6 ft. drops to concrete, making it ideal for warehouse, yard or loading dock applications. All units ship with one product reference guide.

Technical Information

  • Form Factor: Handheld Scanner
  • Symbologies Supported:
    • UPC/EAN
    • Code 39
    • Trioptic Code 39
    • Code 39 Full ASCII
    • Code 93
    • Codabar
    • Interleaved 2 of 5
    • EAN-128
    • Code 128
    • Discrete 2 of 5
    • MSI/PLESSEY
    • Coupon Code
  • Scanner Type: Laser
  • Scan Rate: 35 Scans/sec
  • Interface Options:
    • Dual RS-232
    • USB
    • RS-232 Serial
    • Keyboard Wedge
    • OCIA
  • Interface Connectivity: Corded
  • Scan Pattern: Bi-directional
  • Power Supply: External
  • Battery Capacity: 1100 mAh

General Information

  • Manufacturer: Symbol
  • Product Line: Phaser
  • Product Name: P360 Barcode Scanner

Physical Characteristics

  • Dimensions:
    • 7.0" (177.8mm) x 9.2" (233.68mm) x 3.5" (88.9mm) - Scanner
    • 3.5" (88.9mm) x 4" (101.6mm) x 9.5" (241.3mm) - Cradle
  • Weight: 12 oz
  • Color:
    • Yellow
    • Gray

Agency Approvals

  • Agency Approvals:
    • Certification to UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
    • CDRH Class II
    • IEC Class 2

Environmental Conditions

  • Temperature:
    • -20°C (-4°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95%

Full specifications (PDF)
