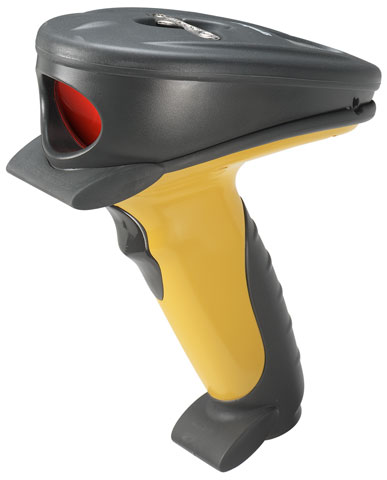

Symbol P304PRO-I100 Barcode Scanner

A newer version of this item is available.
It is replaced by the Symbol DS3408-SF20005 Barcode Scanner.

Symbol P304 PRO - scanner. Order cables & power supply separately. See accessories.

Perfect for applications that require direct association with a workstation or a notebook
Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
Scan barcodes with a staggering speed of 560 scan/s

Need a different version? See all Symbol P304 PRO Barcode Scanners

Discontinued See Replacement

Add to Quote

Overview

Full specifications (PDF)

Symbol P304 PRO Barcode Scanner Model Overview

The P304 PRO from Symbol Technologies is the industrial handheld laser scanner for unsurpassed high-volume 2D barcode scanning. The P304 PRO offers more than just an award-winning ergonomic shape, it provides time-saving features like laser spot mode and smart raster to deliver unrivaled sub-second decoding on both 2D and 1D symbols. All units ship with one product reference guide.

Symbol P304PRO-I100 Barcode Scanner Overview

The P304PRO Bar Code Reader from Symbol Technologies is the industrial handheld laser scanner for unsurpassed high-volume 2-D bar code scanning. The P304PRO offers more than just an award-winning ergonomic shape, it provides time-saving features like laser spot mode and smart raster to deliver unrivaled sub-second decoding on both 2-D and 1-D symbols.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

PDF 417
Micro PDF417
UPC-A
UPC-E
EAN-8
EAN-13
Code 39
Trioptic Code 39
Code 93
Discrete 2 of 5
Bookland EAN
UPC Coupon Code
Code 39 Full ASCII
Code 128
Interleaved 2 of 5
Codabar
UCC/EAN 128
MSI/PLESSEY
Code 11

Light Source:

Laser

Scan Rate:

560 scan/s

Maximum Scan Resolution:

6.60 mil

Depth of Field:

1.25" - 5"@6mil
1" - 7"@7.5mil
1.5" - 15"@UPC
2" - 20.5"@20mil
4" - 32"@55mil
1.25" - 6"@6.6mil - 2D
3" - 9.5"@10mil - 2D
5" - 15"@15mil - 2D

Interfaces/Ports

Host Interface:

Serial

Power Description

Input Voltage:

5.5 V DC

Physical Characteristics

Height:

6.8"

Depth:

5.9"

Weight (Approximate):

11 oz

Miscellaneous

Additional Information:

Scan Element Type:

Raster scanning

Memory:

64KB SRAM
512KB Flash

Supported Interface Type using Synapse Smart cable:

Keyboard wedge
USB
OCIA
Dual RS-232

USB Cable separate

Certifications & Standards:

Electrical Safety:

UL1950
CSA C22.2 No. 950
EN60950/IEC950

Laser Safety:

CDRH Class II
IEC Class 2

EMI/RFI:

FCC Part 15 Class B
IECES-003 Class B
European Union EMC Directive

Warranty

Limited Warranty:

1 Year

Item Numbers

UNSPSC: 43211701
