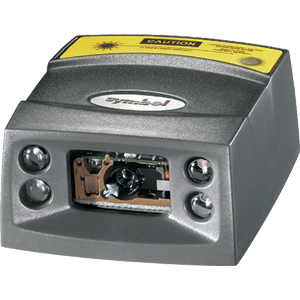

Symbol MS-4407-I000R Fixed Barcode Scanner

Part Number: MS-4407-I000R
Model: MS4400
Add to My Shopping List Add to Compare
Discontinued See Replacement
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Scanning Capability
1D2D
Barcode Symbology Supported
All major 1D bar codes2-D:MaxiCodePDF417DataMatrixQR CodeAztec & Composite Codes Postal Codes: US PostnetUS PlanetUK PostalAustralian PostalJapan Postal
Light Source
LED

Product Description:

  Imager, Standard Density, TTL, Serial and USB interface.
Explore all Motorola MiniScan MS954 Fixed Barcode Scanners
Add to Quote
Symbol MS-4407-I000R Fixed Barcode Scanner
Symbol MS-4407-I000R Fixed Barcode Scanner
Symbol MS-4407-I000R Fixed Barcode Scanner
Symbol MS-4407-I000R Fixed Barcode Scanner
Symbol MS-4407-I000R Fixed Barcode Scanner Symbol MS-4407-I000R Fixed Barcode Scanner Symbol MS-4407-I000R Fixed Barcode Scanner Symbol MS-4407-I000R Fixed Barcode Scanner
Full specifications (PDF)

Motorola MiniScan MS954 Fixed Barcode Scanner Model Overview

Zebra's MiniScan MS954 Series Fixed Mount Scanner is compact, durable and high performing. The MS954 is capable of scanning all types of 1D barcodes, including poorly printed and low contrast symbols. The MS954 offers a configurable scan angle of 47 degrees and 35 degrees for OEM devices requiring a flexible, expanded working range. As one of the smallest, lightest and brightest fixed-mount scanners available today, the MS954 is ideal for accurate automated data collection in OEM device designs with space constraints. It can also be used as a fixed-mount scanner. With its durable housing and built-in RS-232 interface, the mS954 enables your project teams to quickly and confidently integrate high performance 1D barcode data capture into many applications.
Symbol MS-4407-I000R Fixed Barcode Scanner Overview

Wherever a small footprint is required, the Symbol MS4400 delivers. One of the smallest CCD imaging products available today, this scanner excels at 1D and 2D bar code scanning, image capture and DPM reading. Attaining a new level of miniaturization, it can be used from the check-in kiosk to point-of-sale areas with limited counter space or even integrated within clinical diagnostic equipment.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • All major 1D bar codes

2-D:

  • MaxiCode
  • PDF417
  • DataMatrix
  • QR Code
  • Aztec & Composite Codes Postal Codes: US Postnet
  • US Planet
  • UK Postal
  • Australian Postal
  • Japan Postal
Light Source:
LED
Image Sensor Type:
CCD
Depth of Field:
  • 2.7" - 5.5"@5mil - Code 39 - 80% MRD
  • 3" - 5.25"@6.67mil - PDF417 - 80% MRD
  • 2.2" - 6"@7.5mil - Code 39 - 80% MRD
  • 3" - 6"@10mil - PDF417 - 80% MRD
  • 2" - 7"@13mil - UPC-A - 80% MRD
  • 7"@15mil - PDF417 - 80% MRD
  • 9.5"@20mil - Code 39 - 80% MRD
Scan Pattern:
Omni-directional
Scanning Distance:
9"
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Height:
1"
Width:
1.9"
Depth:
2.2"
Weight (Approximate):
1.80 oz
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
China RoHS
Item Numbers
GTIN: 5711045374746
EAN: 5711045374746
UNSPSC: 43211701

Recommended Accessories

Category

  • Cables, Connectors, and Adapters (2)
  • Mounting Hardware and Stands (1)
  • Power Device (1)
  • Scanner Accessories (9)

Recommended Accessories for Model: Symbol MS-4407-I000R Fixed Barcode Scanner

Top Cables, Connectors, and Adapters Purchased With Symbol MS-4407-I000R

Top Mounting Hardware and Stands Purchased With Symbol MS-4407-I000R

Top Power Device Purchased With Symbol MS-4407-I000R

Top Scanner Accessories Purchased With Symbol MS-4407-I000R

See All Scanner Accessories for Symbol MS-4407-I000R Fixed Barcode Scanner >
The Symbol MS-4407-I000R Fixed Barcode Scanner is also known as SYM-MS4407I000R or MS-4407-I000R.
