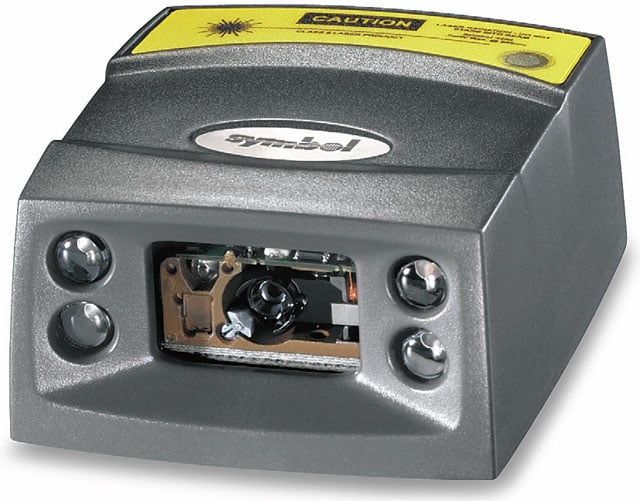

Motorola MS-4404-I000R Fixed Barcode Scanner

Symbol MS4404 - Imager with Standard Density and an RS-232 serial interface.

Full specifications (PDF)

Captures barcodes in a variety of environments.
Wherever a small footprint is required, the Symbol MS4400 delivers. One of the smallest CCD imaging products available today, this scanner excels at 1D and 2D barcode scanning, image capture and DPM reading. Attaining a new level of miniaturization, it can be used from the check-in kiosk to point-of-sale areas with limited counter space - or even integrated within clinical diagnostic equipment. Built-in omnidirectional capture and intuitive aiming ensures fast, accurate scanning, regardless of who is operating the device - your employees or your customers. The MS4400 fixed mount scanner is also available as a scan engine (SE4400), which allows for a smaller size and lower product costs.
Symbol MS-4404-I000R Overview

The flexible and compact Symbol MS4404 MiniScan Imager delivers high performance 1D and 2D bar code and image capture wherever an extremely small footprint is required. One of the smallest charged couple device (CCD) imaging products available today, the Symbol MS4404 is designed to fit in tight spaces - from a check-in kiosk at an airport gate, in point-of-sale (POS) areas with very limited counter space, in manufacturing cells where space is at a premium, in clinical diagnostic equipment, as a standalone device and more. Ready to mount, this small plug-and-play device can be integrated quickly and easily into your existing environment.

Full specifications (PDF)

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UCC/EAN
  • Code 128
  • UCC/EAN 128
  • RSS
  • Code 39
  • Code 93
  • Discrete 2 of 5
  • Codabar
  • MSI
  • MaxiCode
  • PDF 417
  • DataMatrix
  • QR Code
  • U.S. Planet
  • U.S. Postnet
  • Japanese Post
  • UL Postal
Image Sensor Type:
CCD
Depth of Field:
  • 2.7" - 7"@5mil
  • 3" - 5.25"@6.67mil - PDF417
  • 2.5" - 8.75"@7.5mil
  • 3" - 9"@10mil - PDF417
  • 2" - 13.5"@13mil - 100% UPC
  • 0" - 12"@15mil - PDF417
  • 0" - 18.5"@20mil
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Serial
Power Description
Input Voltage:
13.2 V DC
Physical Characteristics
Form Factor:
In-counter
Height:
1"
Width:
1.9"
Depth:
2.2"
Miscellaneous
Additional Information:

USB Cable separate

Certifications & Standards:
  • RoHS Compliant

Laser Classification:

  • CDRH Class II
  • IEC 825 Class

Electrical Safety:

  • ETL
  • VDE
  • CETL
  • EN60950
  • Ctick
  • VCCI

EMI/RFI:

  • FCC Part 15 Class B
  • ICES-003 Class B
  • CISPIR22 Class B
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
15 Month
Item Numbers
GTIN: 3609740039096
EAN: 3609740039096
UNSPSC: 43211701

Loading...

The Symbol MS-4404-I000R is also known as Symbol Technologies SYM-MS4404I000R or MS4404I000R .
